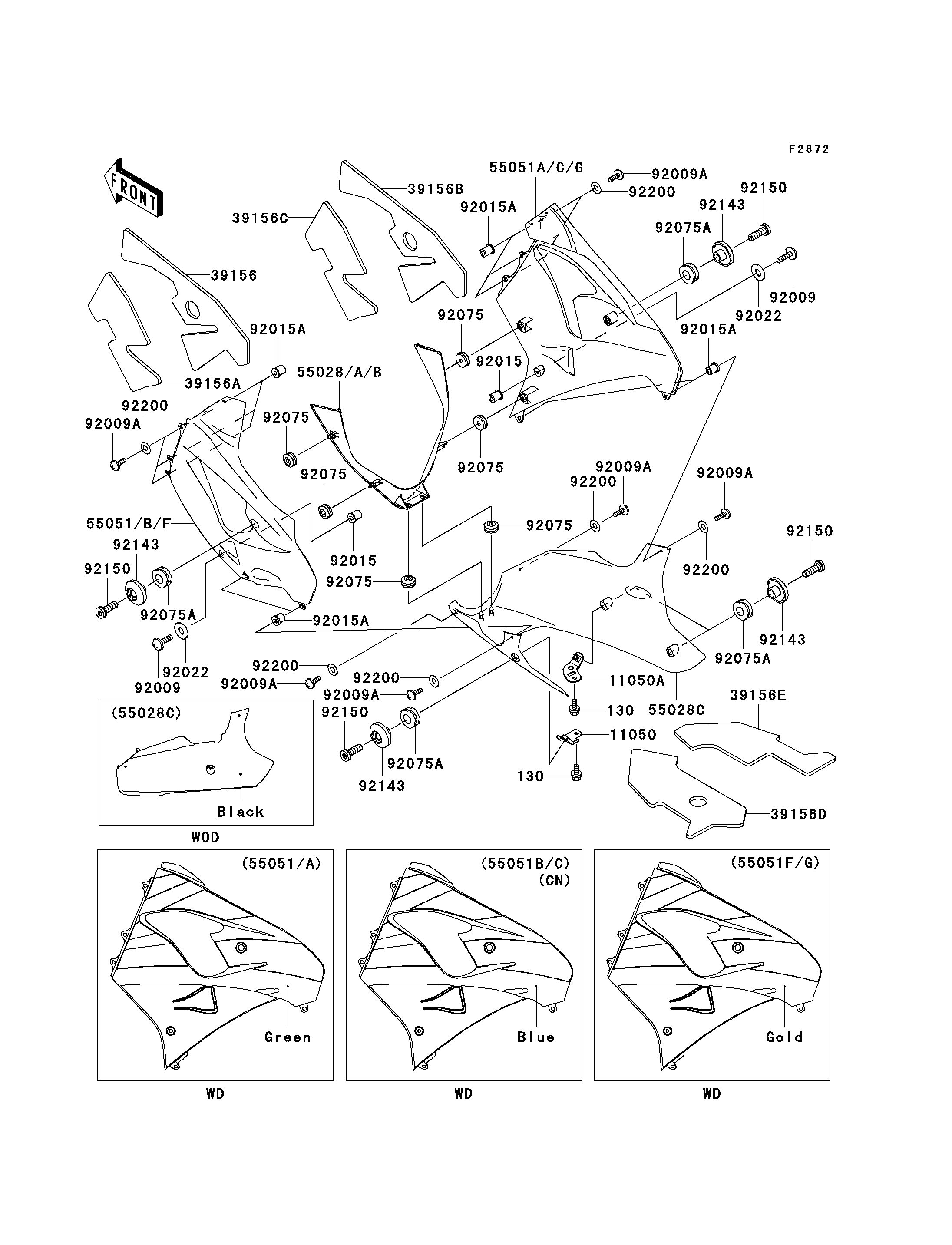

2002 Ninja® ZX™-9R - Cowling Lowers(ZX900-F1)

DOWNLOAD PDF
SELECT A NEW PART
11050
11050
11050A
11050A
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
55028
55028
55028B
55028B
55028C
55028C
55051
55051
55051A
55051A
55051F
55051F
55051G
55051G
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92143
92143
92143
92143
92143
92143
92143
92143
92150
92150
92150
92150
92150
92150
92150
92150
130
130
130
130
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR COWLING,LH 11050 11050-1456 1
BRACKET,LWR COWLING,RH 11050A 11050-1778 1
PAD,SIDE COWLING,LH,UPP 39156 39156-1603 1
PAD,SIDE COWLING,LH,LWR 39156A 39156-1604 1
PAD,SIDE COWLING,RH,UPP 39156B 39156-1605 1
PAD,SIDE COWLING,RH,LWR 39156C 39156-1606 1
PAD,LWR COWLING,LH 39156D 39156-1607 1
PAD,LWR COWLING,RH 39156E 39156-1608 1
COWLING,FR,C.GOLD 55028 55028-1363-217 1
COWLING,FR,L.GREEN 55028B 55028-1363-7F 1
COWLING,LWR,BLACK 55028C 55028-1393-B5 1
COWLING-ASSY,SIDE,LH,L.GREEN 55051 55051-5120-7F 1
COWLING-ASSY,SIDE,RH,L.GREEN 55051A 55051-5121-7F 1
COWLING-ASSY,SIDE,LH,C.GOLD 55051F 55051-5132-217 1
COWLING-ASSY,SIDE,RH,C.GOLD 55051G 55051-5133-217 1
SCREW,6X22 92009 92009-1664 2
SCREW,5X16 92009A 92009-1909 10
NUT 92015 92015-1700 2
NUT,WELL,5MM 92015A 92015-1757 10
WASHER,6.5X16X1 92022 92022-1143 2
DAMPER 92075 92075-1067 6
DAMPER 92075A 92075-1634 5
COLLAR,BLACK 92143 92143-1226 5
BOLT,SOCKET,6X18 92150 92150-1553 5
BOLT-FLANGED 130 130J0612 2
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 10
COWLING,FR,P.R.BLUE 55028A 55028-1363-32 1 CN
COWLING-ASSY,SIDE,LH,P.R.BLUE 55051B 55051-5124-32 1 CN
COWLING-ASSY,SIDE,RH,P.R.BLUE 55051C 55051-5125-32 1 CN
