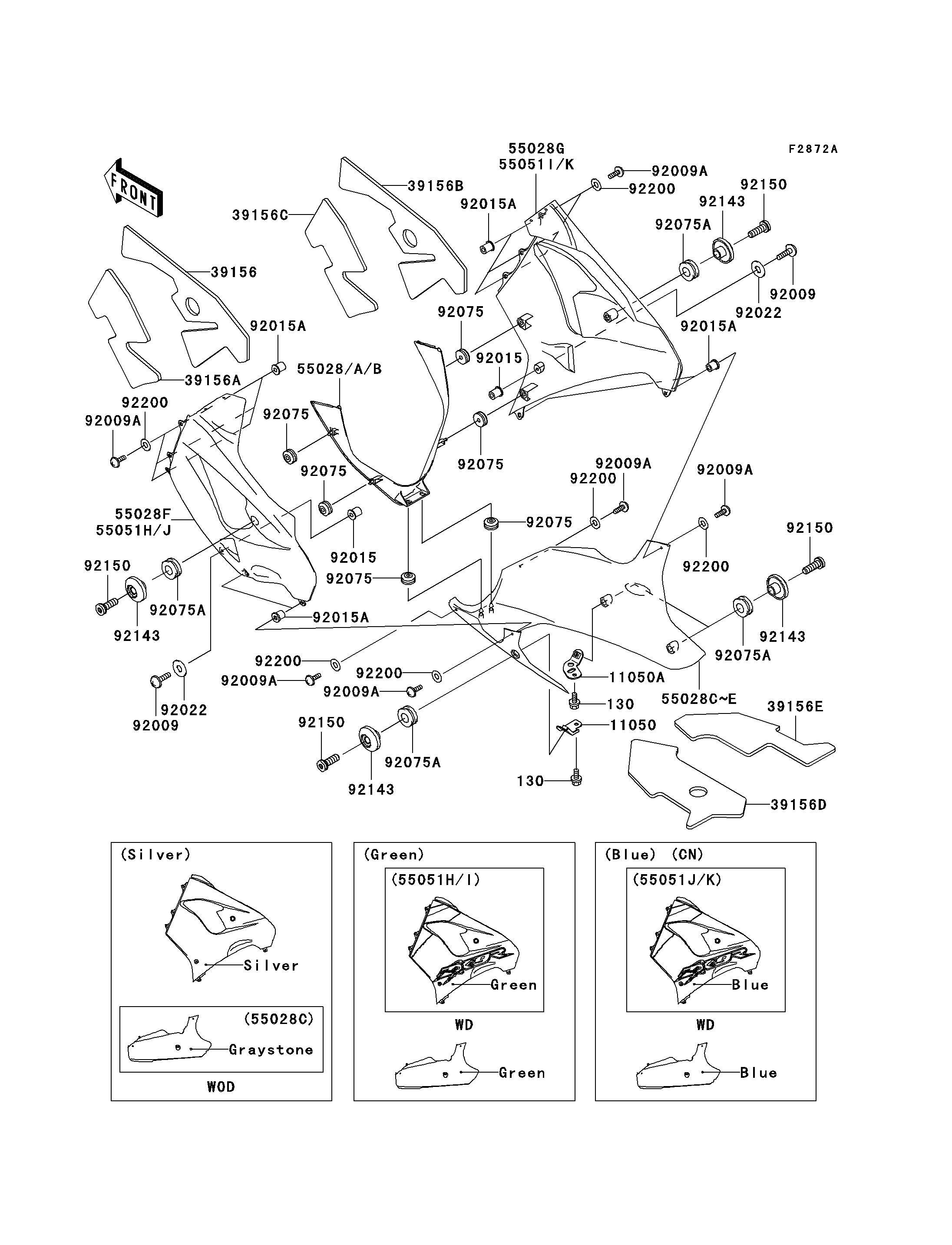

2003 Ninja® ZX™-9R - Cowling Lowers(ZX900-F2)
11050
11050
11050A
11050A
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
55028A
55028A
55028B
55028B
55028C
55028C
55028E
55028E
55028F
55028F
55028G
55028G
55051H
55051H
55051I
55051I
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
130
130
130
130
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92143
92143
92143
92143
92143
92143
92143
92143
92150
92150
92150
92150
92150
92150
92150
92150
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,LWR COWLING,LH | 11050 | 11050-1456 | 1 | ||
BRACKET,LWR COWLING,RH | 11050A | 11050-1778 | 1 | ||
PAD,SIDE COWLING,LH,UPP | 39156 | 39156-1603 | 1 | ||
PAD,SIDE COWLING,LH,LWR | 39156A | 39156-1604 | 1 | ||
PAD,SIDE COWLING,RH,UPP | 39156B | 39156-1605 | 1 | ||
PAD,SIDE COWLING,RH,LWR | 39156C | 39156-1606 | 1 | ||
PAD,LWR COWLING,LH | 39156D | 39156-1607 | 1 | ||
PAD,LWR COWLING,RH | 39156E | 39156-1608 | 1 | ||
COWLING,FR,M.S.SILVER | 55028A | 55028-1363-474 | 1 | ||
COWLING,FR,L.GREEN | 55028B | 55028-1363-7F | 1 | ||
COWLING,LWR,M.GRAYSTONE | 55028C | 55028-1393-C4 | 1 | ||
COWLING,LWR,L.GREEN | 55028E | 55028-1393-7F | 1 | ||
COWLING,SIDE,LH,M.S.SILVER | 55028F | 55028-1438-474 | 1 | ||
COWLING,SIDE,RH,M.S.SILVER | 55028G | 55028-1439-474 | 1 | ||
COWLING-ASSY,SIDE,LH,L.GREEN | 55051H | 55051-5326-7F | 1 | ||
COWLING-ASSY,SIDE,RH,L.GREEN | 55051I | 55051-5327-7F | 1 | ||
SCREW,6X22 | 92009 | 92009-1664 | 2 | ||
SCREW,5X16 | 92009A | 92009-1909 | 10 | ||
NUT | 92015 | 92015-1700 | 2 | ||
NUT,WELL,5MM | 92015A | 92015-1757 | 10 | ||
WASHER,6.5X16X1 | 92022 | 92022-1143 | 2 | ||
DAMPER | 92075 | 92075-1067 | 6 | ||
BOLT-FLANGED | 130 | 130J0612 | 2 | ||
DAMPER | 92075A | 92075-1634 | 5 | ||
COLLAR,BLACK | 92143 | 92143-1226 | 5 | ||
BOLT,SOCKET,6X18 | 92150 | 92150-1553 | 5 | ||
WASHER,NYLON,5.3X11.5X0.5 | 92200 | 92200-1480 | 10 | ||
COWLING,FR,M.C.BLUE | 55028 | 55028-1363-469 | 1 | CN | |
COWLING,LWR,M.C.BLUE | 55028D | 55028-1393-469 | 1 | CN | |
COWLING-ASSY,SIDE,LH,M.C.BLUE | 55051J | 55051-5347-469 | 1 | CN | |
COWLING-ASSY,SIDE,RH,M.C.BLUE | 55051K | 55051-5348-469 | 1 | CN |
