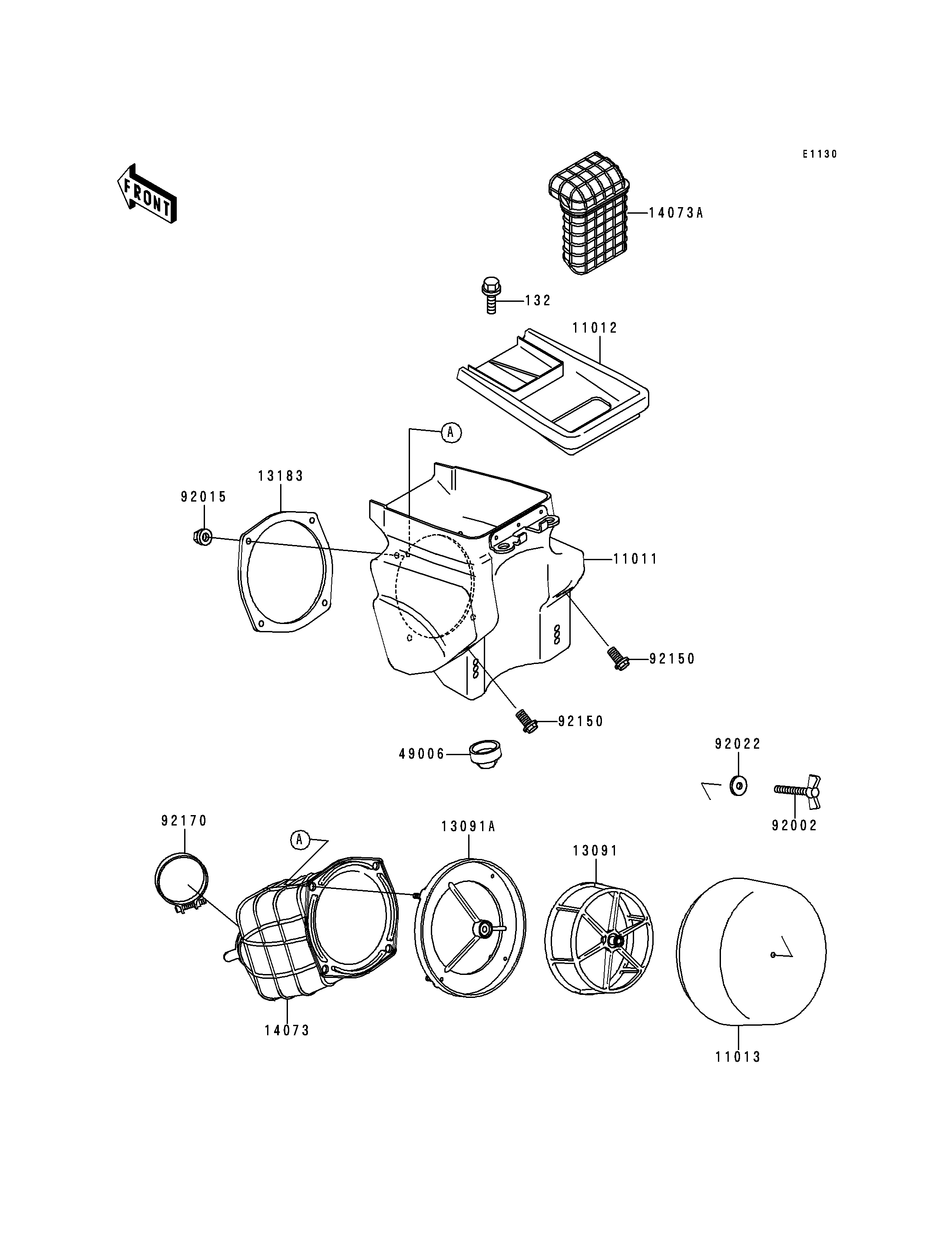

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0612 1
CASE-AIR FILTER 11011 11011-1297 1
CAP,AIR FILTER 11012 11012-1691 1
ELEMENT-AIR FILTER 11013 11013-1260 1
HOLDER,ELEMENT 13091 13091-1454 1
HOLDER 13091A 13091-1951 1
PLATE,DUCT FITTING 13183 13183-1046 1
DUCT,AIR FILTER 14073 14073-1362 1
DUCT,AIR INLET 14073A 14073-1577 1
BOOT 49006 49006-1248 1
BOLT,WING 92002 92002-1719 1
NUT,FLANGED,5MM 92015 92015-1259 4
WASHER,6.5X20X1.6 92022 92022-125 1
BOLT,FLANGED,6X16 92150 92150-1506 2
CLAMP,65MM 92170 92170-1526 1
