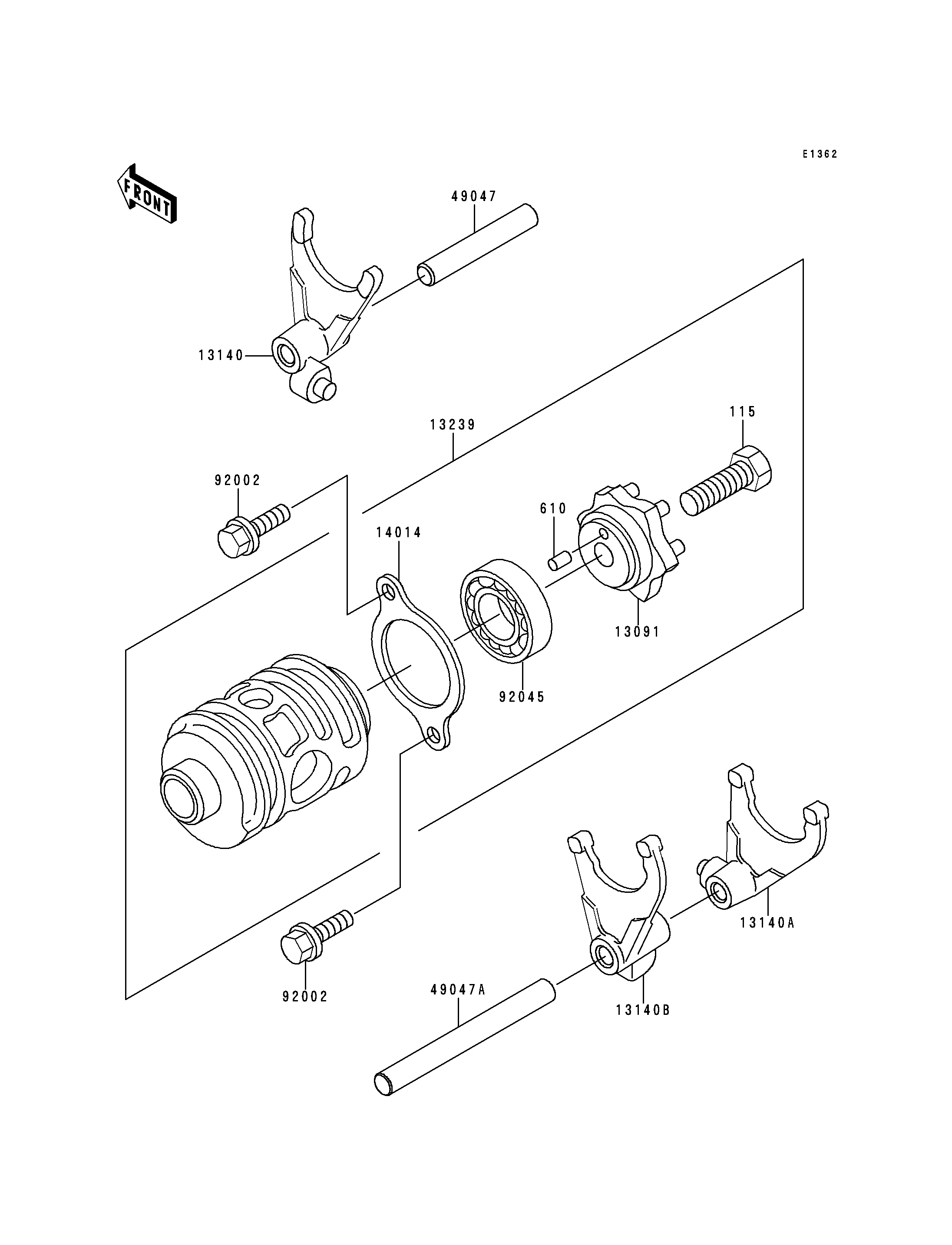

Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

115
610
13091
13140
13140A
13140B
13239
14014
49047
49047A
92002
92002
92045
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET 115 115G0825 1
ROLLER,4X8 610 610A0408 1
HOLDER,CHANGE DRUM 13091 13091-1364 1
FORK-SHIFT,5TH&TOP 13140 13140-1074 1
FORK-SHIFT,LOW&4TH 13140A 13140-1143 1
FORK-SHIFT,2ND&3RD 13140B 13140-1144 1
DRUM-ASSY-CHANGE 13239 13239-1125 1
PLATE-POSITION 14014 14014-1020 1
ROD-SHIFT,8X58 49047 49047-1017 1
ROD-SHIFT,8X82.5 49047A 49047-1065 1
BOLT,6X12 92002 92002-1563 2
BEARING-BALL,#6905 92045 92045-036 1
