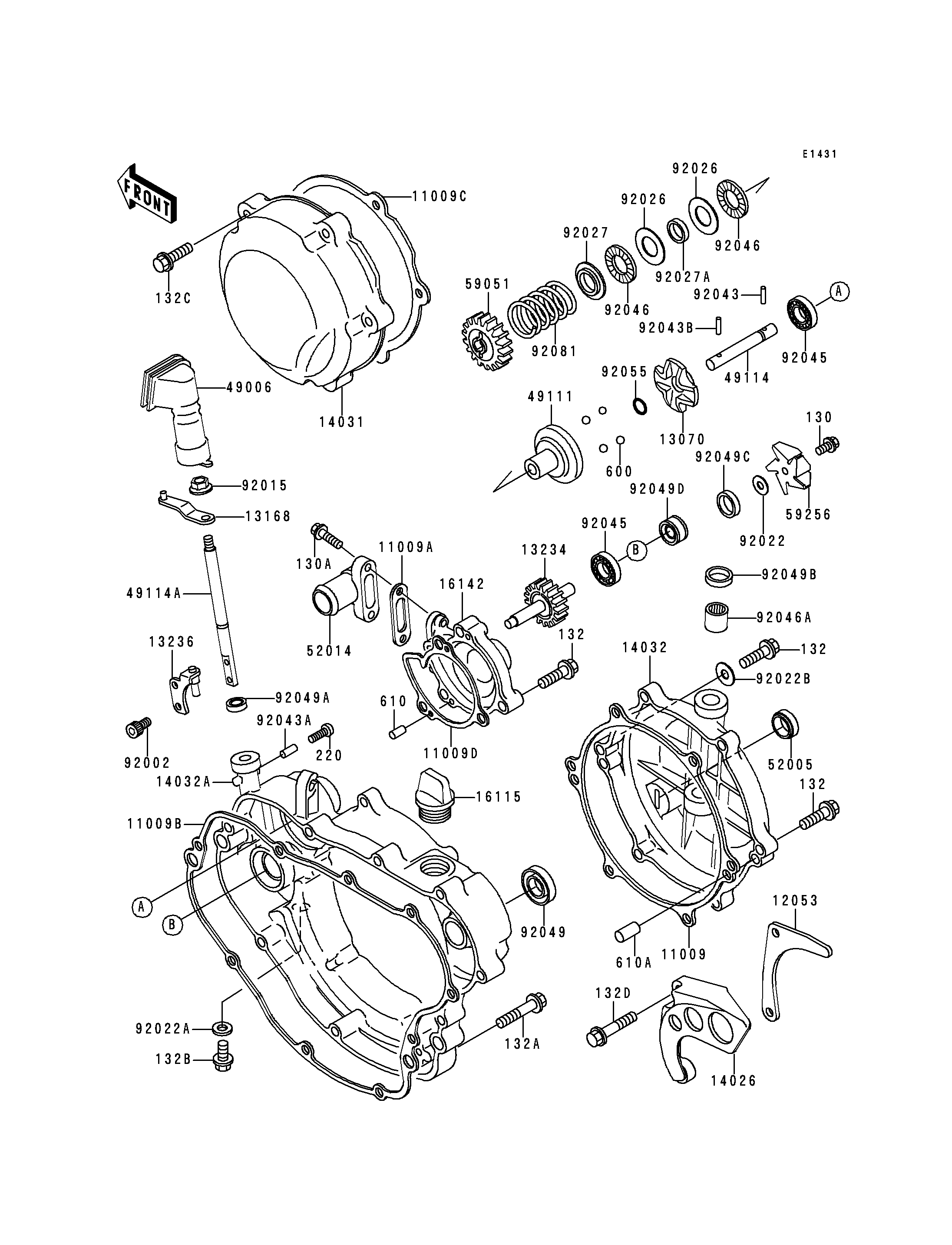

1992 KDX200 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009A
11009A
11009B
11009B
11009C
11009C
11009D
11009D
12053
12053
13070
13070
13168
13168
13234
13234
13236
13236
14026
14026
14031
14031
14032
14032
14032A
14032A
16115
16115
16142
16142
49006
49006
49111
49111
49114
49114
49114A
49114A
52005
52005
52014
52014
59051
59051
59256
59256
92002
92002
92015
92015
92022
92022
92022A
92022A
92022B
92022B
92026
92026
92026
92026
92027
92027
92027A
92027A
92043
92043
92043A
92043A
92043B
92043B
92045
92045
92045
92045
92046
92046
92046
92046
92046A
92046A
92049
92049
92049A
92049A
130
130
130A
130A
132
132
132
132
132
132
132A
132A
132B
132B
132C
132C
132D
132D
220
220
600
600
610
610
610A
610A
92049B
92049B
92049C
92049C
92049D
92049D
92055
92055
92081
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RELESASE COVER 11009 11009-1939 1
GASKET,ELBOW 11009A 11009-1952 1
GASKET,CLUTCH COVER 11009B 11009-1996 1
GASKET,GENERATOR COVER 11009C 11009-1997 1
GASKET,WATER PUMP COVER 11009D 11009-1998 1
GUIDE-CHAIN 12053 12053-1228 1
GUIDE 13070 13070-1122 1
LEVER,GOVERNOR 13168 13168-1371 1
SHAFT-COMP,PUMP 13234 13234-1092 1
LEVER-COMP,GOVERNOR SHAFT 13236 13236-1190 1
COVER-CHAIN 14026 14026-1159 1
COVER-GENERATOR 14031 14031-1231 1
COVER-CLUTCH 14032 14032-1266 1
COVER-CLUTCH 14032A 14032-1296 1
CAP-OIL FILLER 16115 16115-018 1
COVER-PUMP 16142 16142-1090 1
BOOT,GOVERNOR 49006 49006-1228 1
HOLDER-GOVERNOR WEIGHT 49111 49111-1051 1
SHAFT-GOVERNOR 49114 49114-1058 1
SHAFT-GOVERNOR 49114A 49114-1067 1
GAUGE,OIL LEVEL 52005 52005-1055 1
ELBOW 52014 52014-1067 1
GEAR-SPUR,GOVERNOR,18T 59051 59051-1189 1
IMPELLER 59256 59256-1067 1
BOLT,SOCKET,4X8 92002 92002-1403 2
NUT,6MM 92015 92015-1572 1
WASHER,5.2X13X1 92022 92022-1380 1
WASHER,8.2X14X1.0 92022A 92022-1488 1
WASHER,6.2X11X1 92022B 92022-304 1
SPACER,15X28X1 92026 92026-1238 2
COLLAR 92027 92027-1838 1
COLLAR,15.2X17X4 92027A 92027-1839 1
PIN,3X12.8 92043 92043-1256 1
PIN,2X9.8 92043A 92043-1293 1
PIN,3X19.8 92043B 92043-1319 1
BEARING-BALL,608MC3 92045 92045-1305 2
BEARING-NEEDLE,AXK1102 92046 92046-1052 2
BEARING-NEEDLE 92046A 92046-1230 1
SEAL-OIL,SB18307 92049 92049-013 1
SEAL-OIL,SDO8144 92049A 92049-1207 1
BOLT-FLANGED 130 130P0510 1
BOLT-FLANGED 130A 130P0520 2
BOLT-FLANGED-SMALL 132 132G0625 9
BOLT-FLANGED-SMALL 132A 132G0630 9
BOLT-FLANGED-SMALL 132B 132G0810 1
BOLT-FLANGED-SMALL 132C 132Y0625 5
BOLT-FLANGED-SMALL 132D 132Y0640 2
SCREW-PAN-CROS 220 220B0306 1
BALL-STEEL,5/16" 600 600A1000 4
ROLLER,4X8 610 610A0408 2
ROLLER,6X12 610A 610A0612 2
SEAL-OIL 92049B 92049-1262 1
SEAL-OIL,MH8X18X3.5-A 92049C 92049-1359 1
SEAL-OIL,MHSD8X18X10J-1 92049D 92049-1366 1
RING-O,5.5X1.5 92055 92055-1343 1
SPRING,GOVERNOR 92081 92081-1769 1
