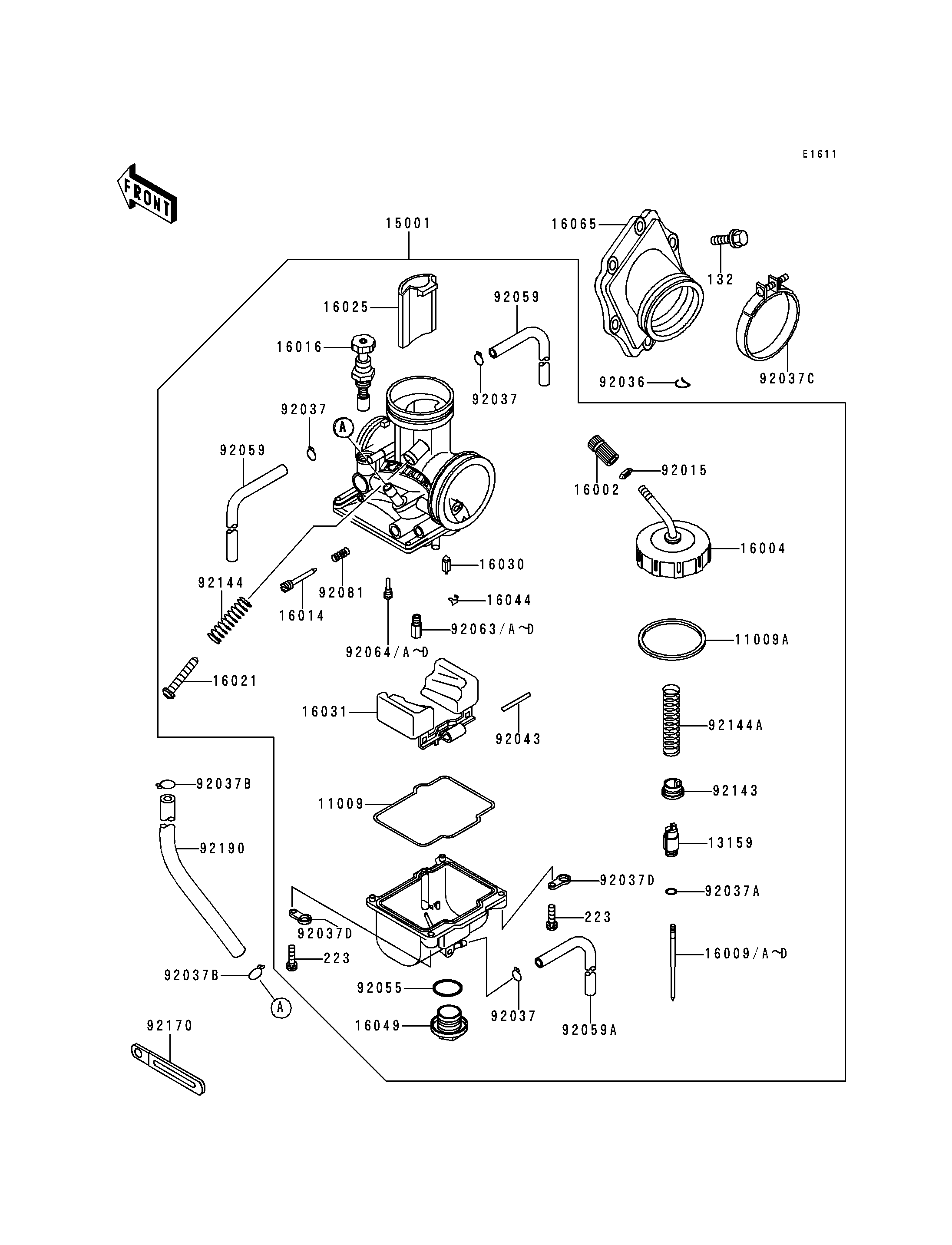

1994 KDX200 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009A
11009A
13159
13159
15001
15001
16002
16002
16004
16004
16009
16009
16009A
16009A
16009B
16009B
16009C
16009C
16009D
16009D
16014
16014
16016
16016
16021
16021
16025
16025
16030
16030
16031
16031
16044
16044
16049
16049
16065
16065
92015
92015
92036
92036
92037
92037
92037
92037
92037
92037
92037A
92037A
92037B
92037B
92037B
92037B
92037C
92037C
92037D
92037D
92037D
92037D
92043
92043
92055
92055
92059
92059
92059
92059
92059A
92059A
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
132
132
223
223
223
223
92063D
92063D
92064
92064
92064A
92064A
92064B
92064B
92064C
92064C
92064D
92064D
92081
92081
92143
92143
92144
92144
92144A
92144A
92170
92170
92190
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1716 1
GASKET,CHAMBER CAP 11009A 11009-1717 1
CONNECTOR,THROTTLE CABLE 13159 13159-1063 1
CARBURETOR-ASSY 15001 15001-1564 1
ADJUSTER-CABLE 16002 16002-1057 1
CAP-CHAMBER 16004 16004-1070 1
NEEDLE-JET,R1170N 16009 16009-1440 1 (OPTION)
NEEDLE-JET,R1171N 16009A 16009-1441 1 (OPTION)
NEEDLE-JET,R1172N 16009B 16009-1523 1
NEEDLE-JET,R1173N 16009C 16009-1524 1 (OPTION)
NEEDLE-JET,R1174N 16009D 16009-1525 1 (OPTION)
SCREW-PILOT AIR 16014 16014-1058 1
PLUNGER,STARTER 16016 16016-1075 1
SCREW-THROTTLE STOP 16021 16021-1124 1
VALVE-THROTTLE,CA6 16025 16025-1164 1
VALVE-FLOAT 16030 16030-1057 1
FLOAT 16031 16031-1067 1
CLAMP,FLOAT VALVE 16044 16044-007 1
COVER-MAIN JET 16049 16049-1051 1
HOLDER-CARBURETOR 16065 16065-1181 1
NUT,CABLE ADJUST LOCK 92015 92015-1772 1
RING-SNAP 92036 92036-018 1
CLAMP,TUBE 92037 92037-1396 3
CLAMP,JET NEEDLE 92037A 92037-1401 1
CLAMP,TUBE 92037B 92037-147 2
CLAMP 92037C 92037-1843 1
CLAMP,HOSE 92037D 92037-1969 2
PIN,FLOAT 92043 92043-1207 1
RING-O,MAIN JET COVER 92055 92055-1167 1
TUBE,4X7X420 92059 92059-1896 2
TUBE,3.5X6.5X330 92059A 92059-1897 1
JET-MAIN,#145 92063 92063-1362 1 (OPTION)
JET-MAIN,#148 92063A 92063-1363 1 (OPTION)
JET-MAIN,#150 92063B 92063-1364 1
JET-MAIN,#152 92063C 92063-1365 1 (OPTION)
BOLT-FLANGED-SMALL 132 132G0620 6
SCREW-PAN-WS-CROS 223 223C0416 4
JET-MAIN,#155 92063D 92063-1366 1 (OPTION)
JET-PILOT,#52 92064 92064-1130 1 (OPTION)
JET-PILOT,#42 92064A 92064-1141 1 (OPTION)
JET-PILOT,#45 92064B 92064-1142 1 (OPTION)
JET-PILOT,#48 92064C 92064-1143 1
JET-PILOT,#50 92064D 92064-1144 1 (OPTION)
SPRING,ADJUST SCREW 92081 92081-1555 1
COLLAR,THROTTLE VALVE 92143 92143-1201 1
SPRING,THROTTLE STOP SCREW 92144 92144-1257 1
SPRING,THROTTLE VALVE 92144A 92144-1284 1
CLAMP 92170 92170-1514 2
TUBE,5.8X10.8X80 92190 92190-1149 1
