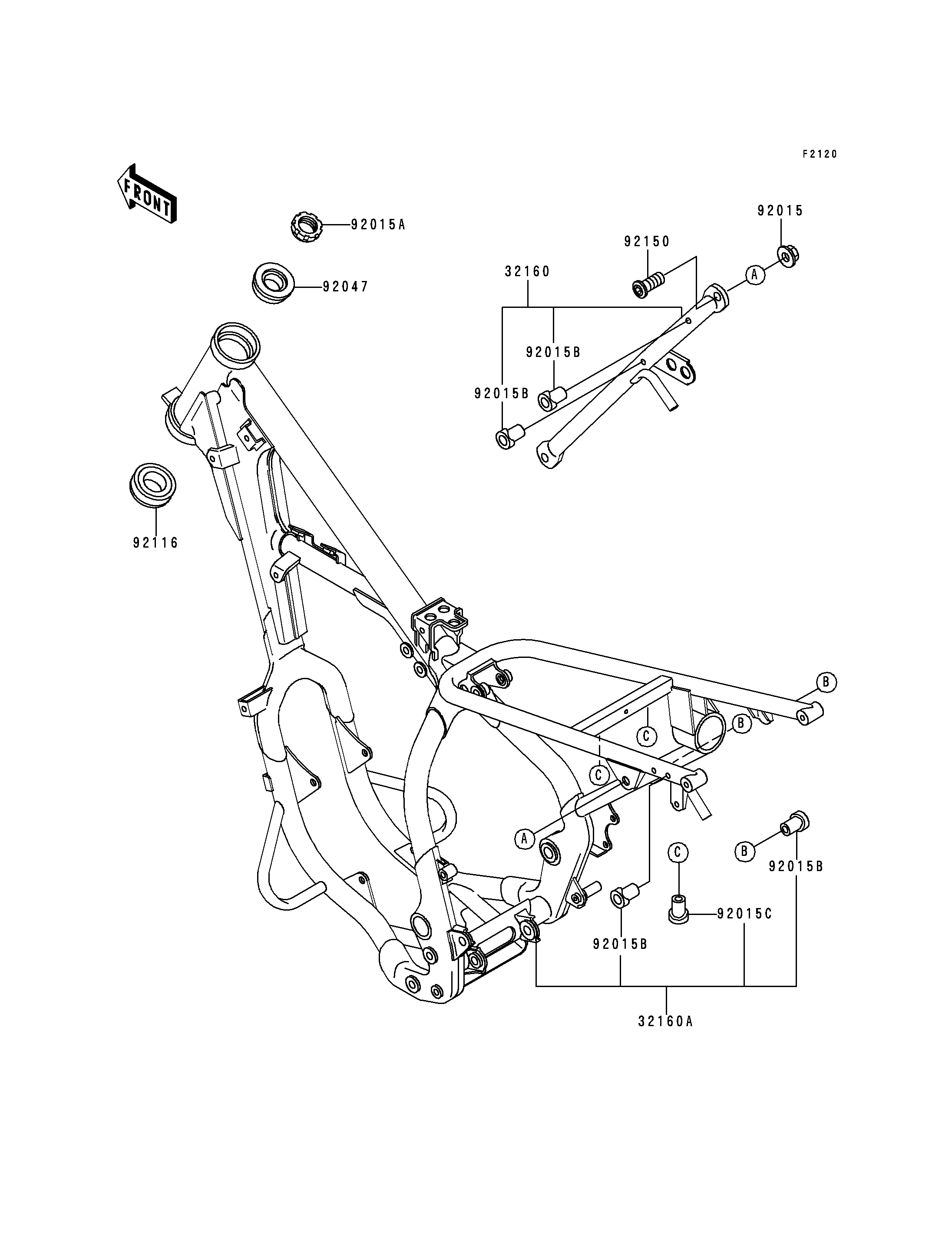

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,RR,L.GREEN 32160 32160-1020-CC 1
FRAME-COMP,FR,L.GREEN 32160A 32160-1236-CC 1
NUT,FLANGED,10MM 92015 92015-1415 2
NUT,STEERING STEM,25MM 92015A 92015-1684 1
NUT,POP,6MM 92015B 92015-1759 7
NUT,POP,6MM,L=16.5 92015C 92015-1792 2
RACE,ROLLER,32005JR RS 92047 92047-017 1
BEARING-ROLLER,LWR,32006JR RS 92116 92116-1008 1
BOLT,SOCKET,10X23 92150 92150-1221 2
