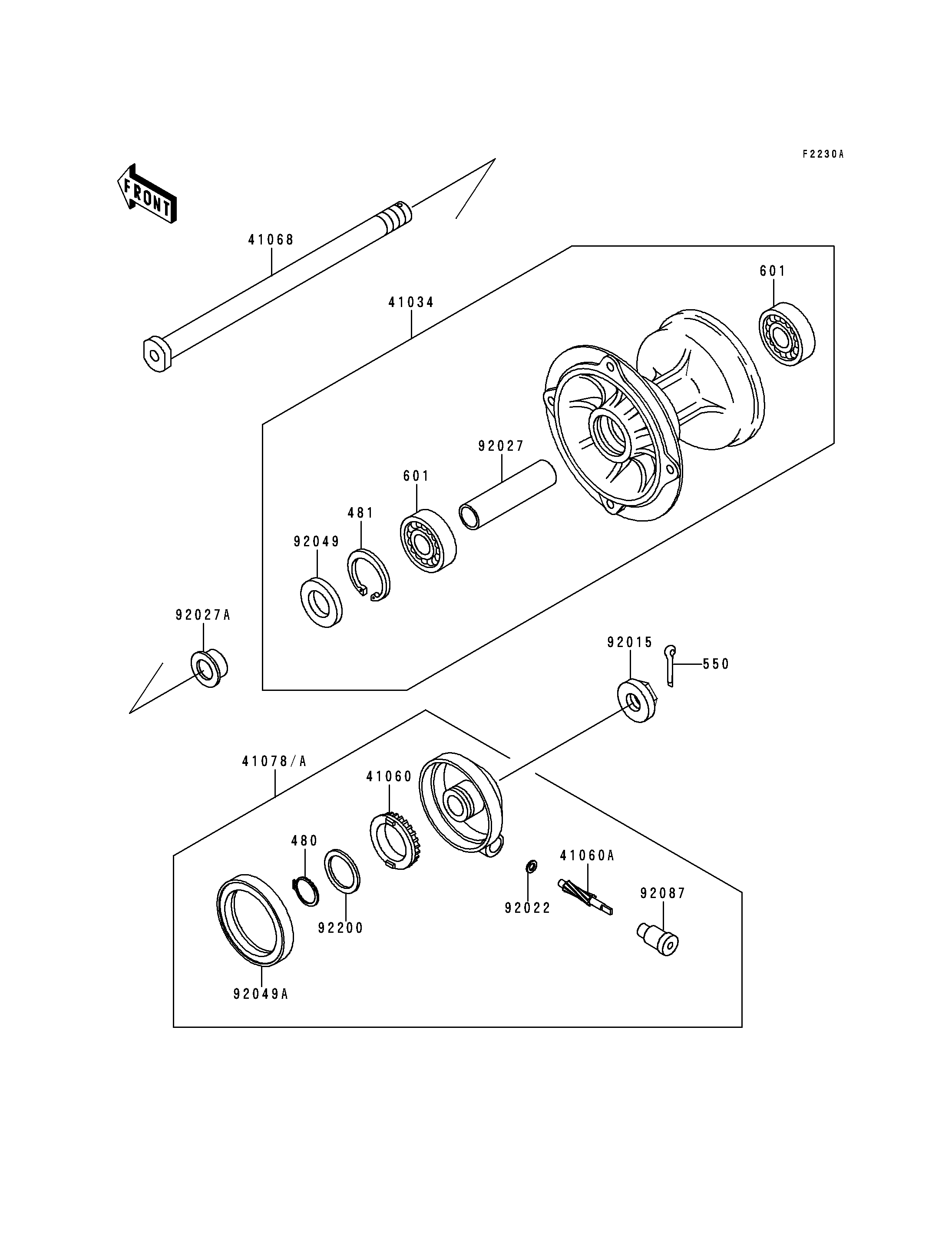

1993 KDX200 - Front Hub(KDX200-E5/E6)

DOWNLOAD PDF
SELECT A NEW PART
480
481
550
601
601
41034
41060
41060A
41068
41078
92015
92022
92027
92027A
92049
92049A
92087
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,24MM 480 480J2400 1
CIRCLIP-TYPE-C,35MM 481 481J3500 1
PIN-COTTER,3.0X25 550 550D3025 1
BEARING-BALL,#6202UG 601 601B6202UG 2
DRUM-ASSY,FRONT BRAKE 41034 41034-1219 1
GEAR-METER SCREW,25T 41060 41060-1143 1
GEAR-METER SCREW,8T 41060A 41060-1144 1
AXLE,FR 41068 41068-1304 1
CASE-ASSY-METER GEAR 41078 41078-1088 1
NUT,FLANGED,14MM 92015 92015-1401 1
WASHER,5X9.5X0.8 92022 92022-1511 1
COLLAR,15.2X22.2X75 92027 92027-1958 1
COLLAR,L=12 92027A 92027-1959 1
SEAL-OIL,MH20354.5 92049 92049-1176 1
SEAL-OIL,SDD 50 62 7 92049A 92049-1399 1
BUSHING-METER GEAR 92087 92087-1060 1
WASHER,24X31X0.8 92200 92200-1137 1
