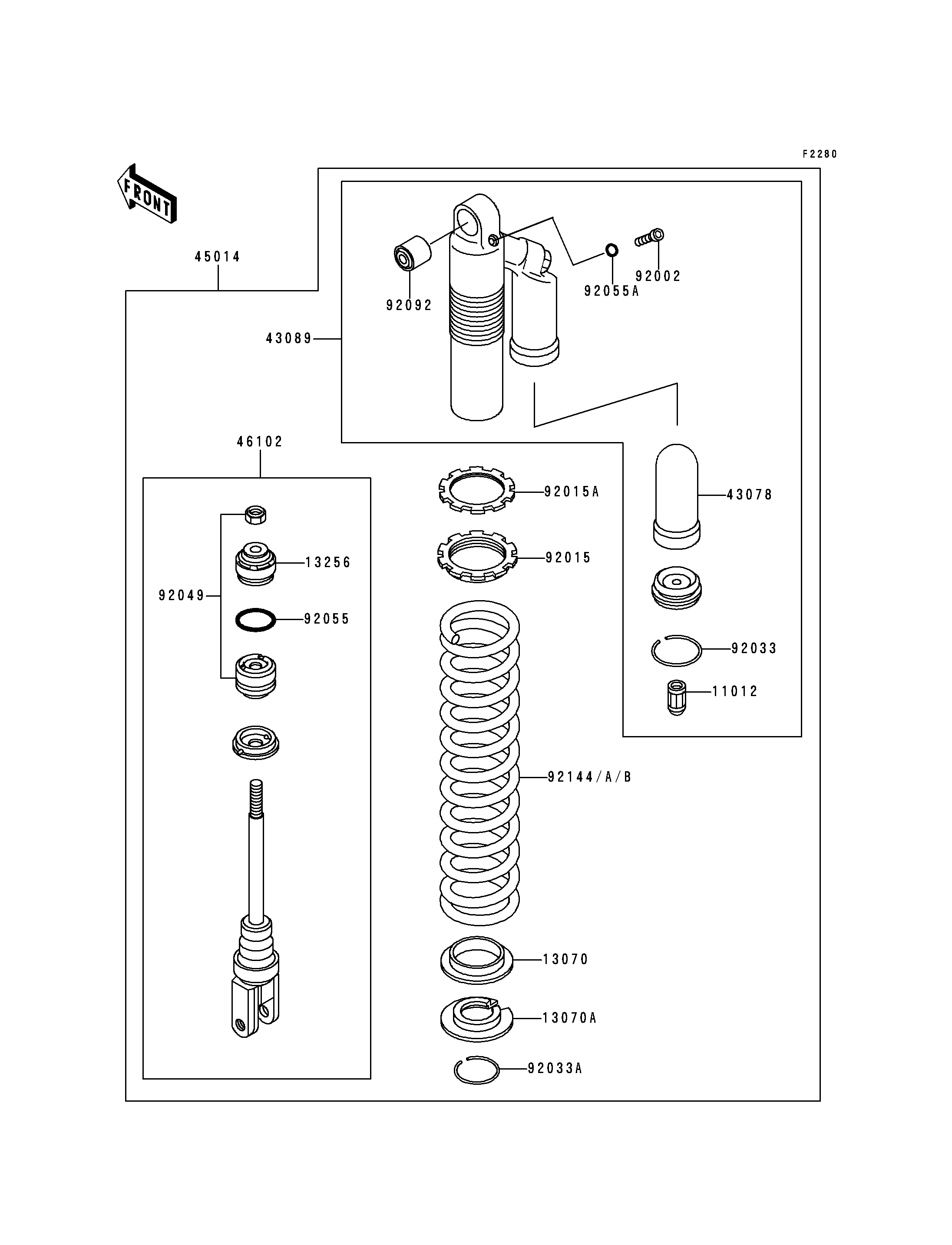

1992 KDX200 - Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
11012
13070
13070A
13256
43078
43089
45014
46102
92002
92015
92015A
92033
92033A
92049
92055
92055A
92092
92144
92144A
92144B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,VALVE AIR 11012 11012-1391 1
GUIDE,SPRING 13070 13070-1161 1
GUIDE,SPRING 13070A 13070-1165 1
PISTON,SHOCKABSORBER 13256 13256-1054 1
RESERVOIR,SHOCKABSORBER 43078 43078-1094 1
CYLINDER-SHOCKABSORBER 43089 43089-1129 1
SHOCKABSORBER 45014 45014-1500 1
ROD,SHOCKABSORBER 46102 46102-1260 1
BOLT,DRAIN 92002 92002-1955 1
NUT,SPRING ADJUST 92015 92015-1703 1
NUT,SPRING ADJUST LOCK 92015A 92015-1704 1
RING-SNAP 92033 92033-1209 1
RING-SNAP,SHOCKABSORBER 92033A 92033-1228 1
SEAL-OIL 92049 92049-1281 1
RING-O,ROD 92055 92055-1369 1
RING-O 92055A 92055-1383 1
BUSHING-RUBBER,SHOCKABSORBER 92092 92092-1062 1
SPRING,SHOCKABSORBER,K=4.6 92144 92144-1480 1
SPRING,SHOCKABSORBER,K=4.4 92144A 92144-1515 1 (OPTION)
SPRING,SHOCKABSORBER,K=4.8 92144B 92144-1516 1 (OPTION)
