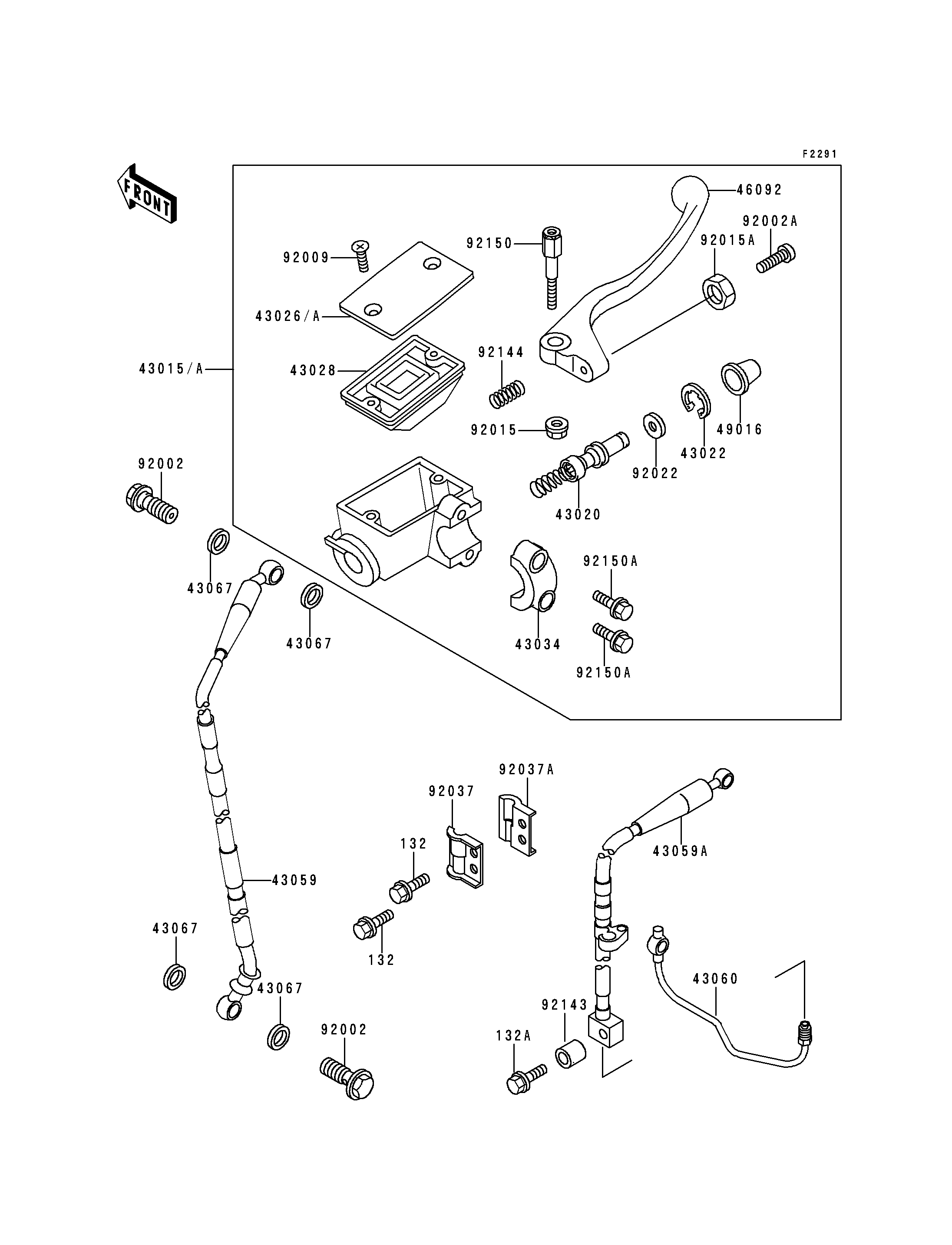

1993 KDX200 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132A
43015A
43020
43022
43026A
43028
43034
43059A
43060
43067
43067
43067
43067
46092
49016
92002
92002
92002A
92009
92015
92015A
92022
92143
92144
92150
92150A
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132A 132G0630 1
CYLINDER-ASSY-MASTER,FR 43015A 43015-1518 1
PISTON-COMP-BRAKE 43020 43020-1071 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026A 43026-1075 1
DIAPHRAGM 43028 43028-1067 1
HOLDER-BRAKE 43034 43034-1110 1
HOSE-BRAKE,FR 43059A 43059-1571 1
PIPE-BRAKE,FR 43060 43060-1072 1
WASHER,10.5X15X1.5 43067 43067-001 4
LEVER-GRIP,FRONT BRAKE 46092 46092-1148 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,OIL,L=23 92002 92002-1888 2
BOLT,ADJUST 92002A 92002-1893 1
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM 92015 92015-1528 1
NUT,ADJUST 92015A 92015-1642 1
WASHER 92022 92022-1814 1
COLLAR,6.5X9.5X17 92143 92143-1408 1
SPRING,RETURN 92144 92144-1103 1
BOLT,LEVER SET 92150 92150-1383 1
BOLT 92150A 92150-1452 2
