41080
43020
43041
43044
43049
43056
43057
43082
49006
49006A
49006B
92002
92009
92081

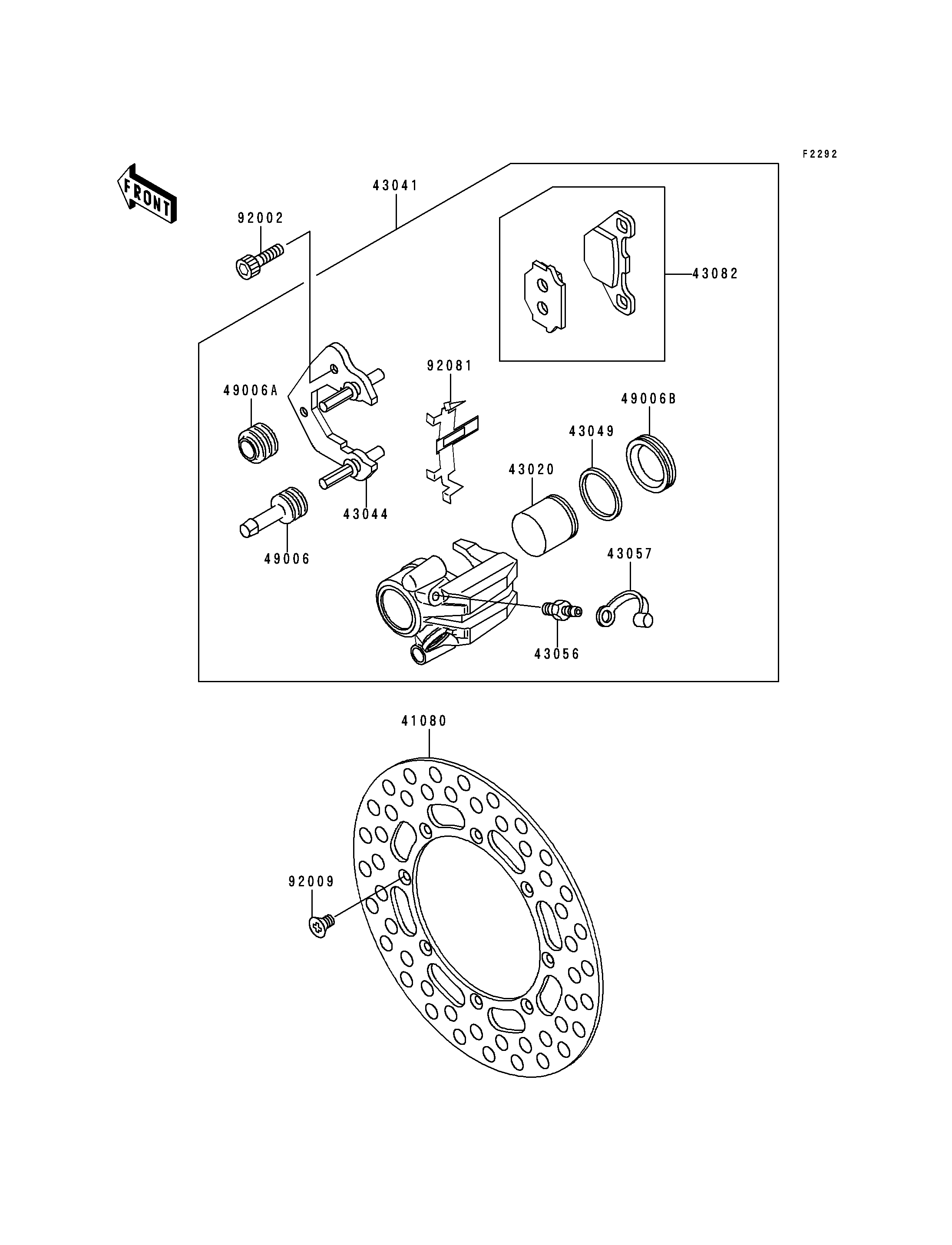

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR 41080 41080-1252 1
PISTON-COMP-BRAKE 43020 43020-1082 1
CALIPER-ASSY,FR 43041 43041-1438 1
HOLDER-COMP-CALIPER 43044 43044-1034 1
PACKING 43049 43049-1027 1
BREATHER-BRAKE 43056 43056-1054 1
CAP-BREATHER 43057 43057-003 1
PAD-ASSY-BRAKE 43082 43082-1086 1
BOOT,CALIPER 49006 49006-1054 1
BOOT,CALIPER 49006A 49006-1055 1
BOOT,CALIPER 49006B 49006-1093 1
BOLT,SOCKET,8X20 92002 92002-1178 2
SCREW,6X10 92009 92009-1375 8
SPRING 92081 92081-1341 1
