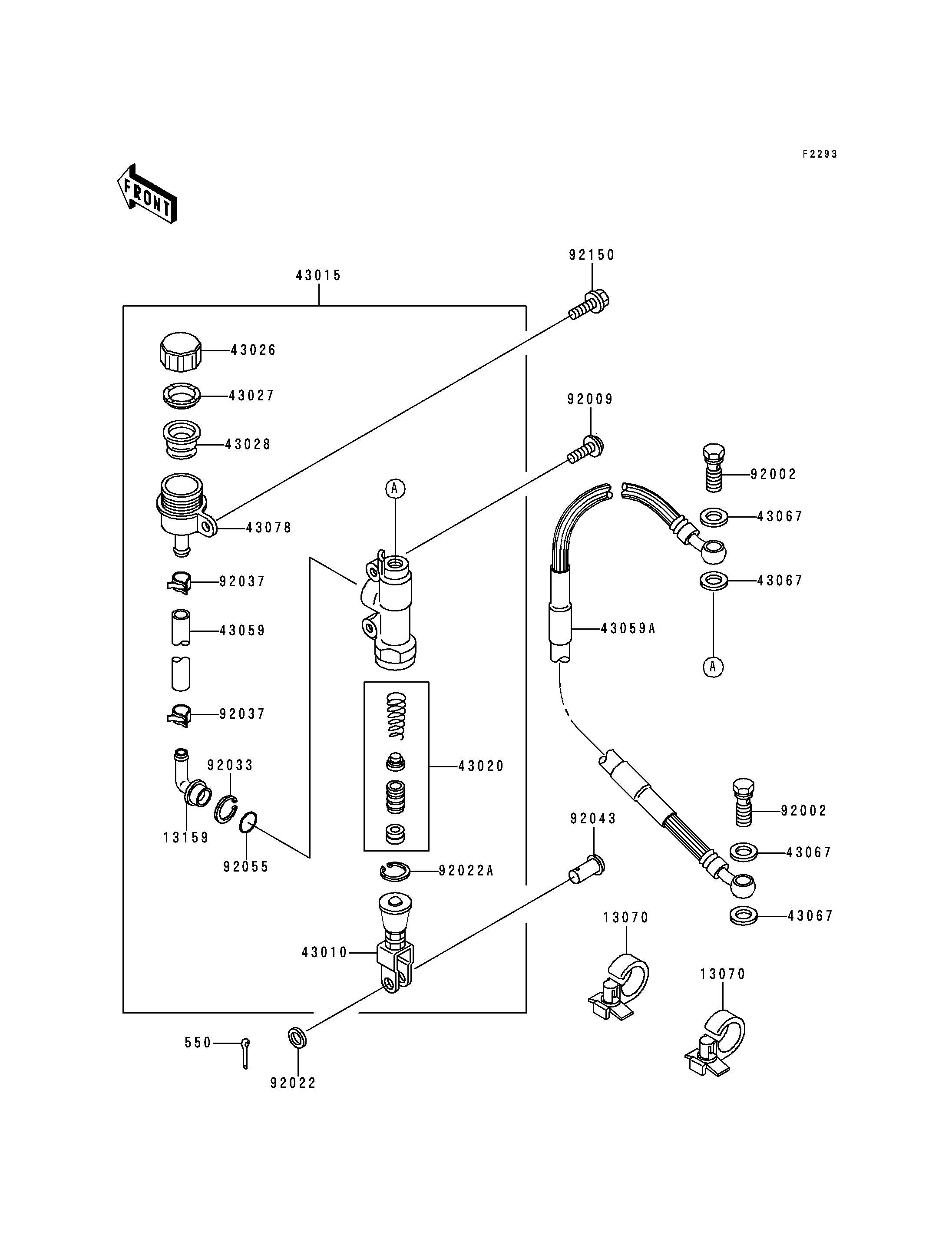

1994 KDX200 - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
550
13070
13070
13159
43010
43015
43020
43026
43027
43028
43059
43059A
43067
43067
43067
43067
43078
92002
92002
92009
92022
92022A
92033
92037
92037
92043
92055
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,2.0X15 550 550D2015 1
GUIDE,HOSE 13070 13070-1186 2
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-1063 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1388 1
PISTON-COMP-BRAKE 43020 43020-1063 1
CAP-BRAKE 43026 43026-1058 1
PLATE-DIAPHRAGM 43027 43027-1052 1
DIAPHRAGM 43028 43028-1060 1
HOSE-BRAKE,RR MASTER CYLINDER 43059 43059-1380 1
HOSE-BRAKE,RR 43059A 43059-1514 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR 43078 43078-1068 1
BOLT,OIL,L=23 92002 92002-1888 2
SCREW,6X14,WHITE 92009 92009-1287 2
WASHER,8.5X13X1 92022 92022-1028 1
WASHER,CIRCRIP 92022A 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP 92037 92037-1710 2
PIN,8MM 92043 92043-1303 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,6X14 92150 92150-1340 1
