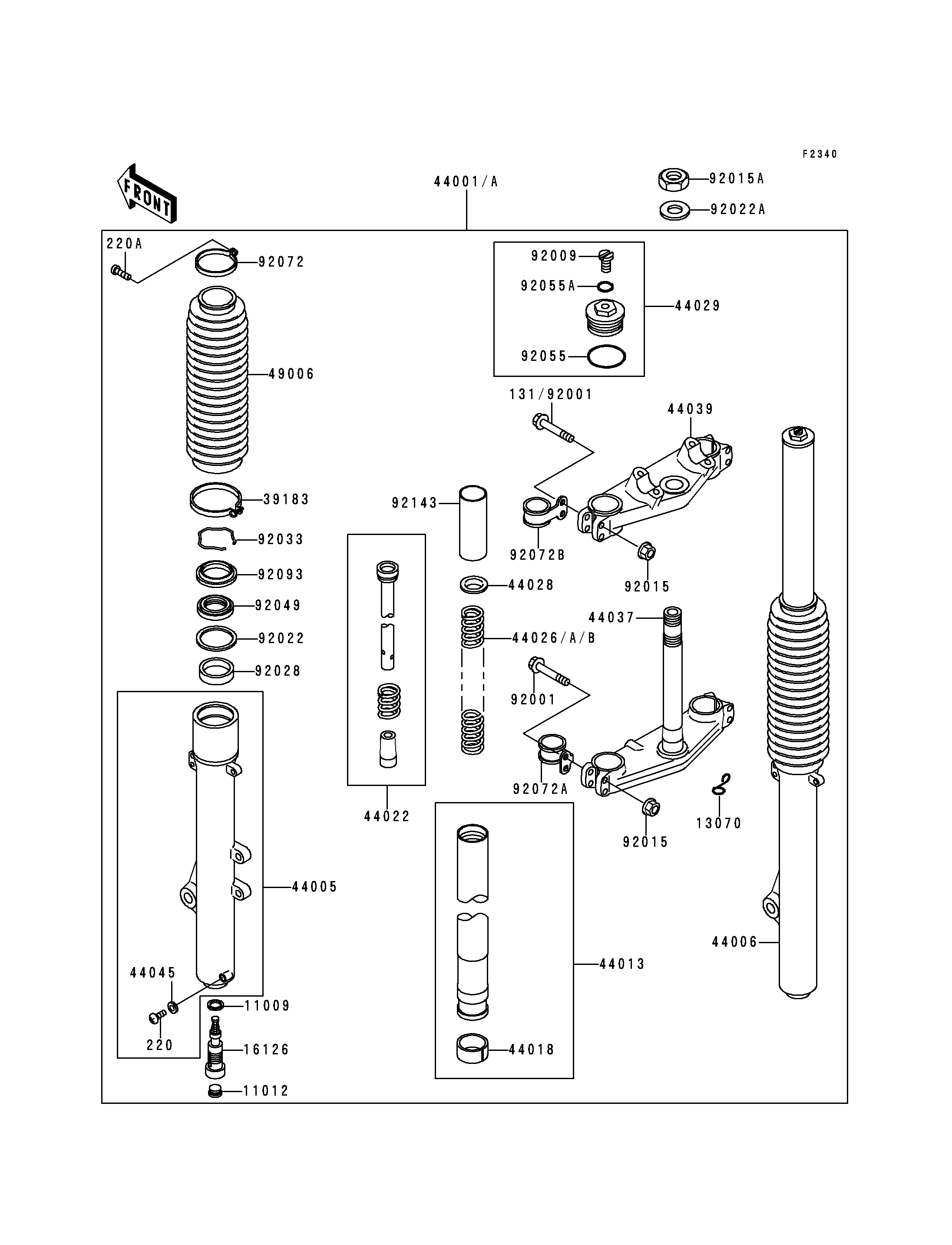

1992 KDX200 - Front Fork(KDX200-E4)

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11012
11012
13070
13070
16126
16126
39183
39183
44005
44005
44006
44006
44013
44013
44018
44018
44022
44022
44026
44026
44026A
44026A
44026B
44026B
44028
44028
44029
44029
44037
44037
44039
44039
44045
44045
49006
49006
92009
92009
92015
92015
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92028
92028
92033
92033
92049
92049
92055
92055
92055A
92055A
92072
92072
92072A
92072A
92072B
92072B
220
220
220A
220A
92093
92093
92143
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1324 2
CAP,FORK CYLINDER 11012 11012-1381 2
GUIDE,CABLE 13070 13070-1208 1
VALVE,FORK CYLINDER 16126 16126-1134 2
BAND-ASSY,BOOT 39183 39183-1051 2
PIPE-LEFT FORK OUTER 44005 44005-1286 1
PIPE-RIGHT FORK OUTER 44006 44006-1300 1
PIPE-FORK INNER 44013 44013-1300 2
PISTON-FORK,INNER PIPE 44018 44018-1056 2
CYLINDER-FORK 44022 44022-1240 2
SPRING-FRONT FORK,K=0.30 44026 44026-1401 2
SPRING-FRONT FORK,K=0.29 44026A 44026-1430 2 (OPTION)
SPRING-FRONT FORK,K=0.31 44026B 44026-1431 2 (OPTION)
GUIDE-FORK SPRING 44028 44028-1010 2
SEAT-FORK SPRING 44029 44029-1137 2
HOLDER-FORK UNDER 44037 44037-1248 1
HOLDER-FORK UPPER 44039 44039-1154 1
GASKET,FORK DRAIN PLUG 44045 44045-002 2
BOOT,FORK,BLUE NO.32 49006 49006-1184-GF 2
SCREW 92009 92009-1568 2
NUT,FLANGED,8MM 92015 92015-1485 8
NUT,STEERING STEM,22MM 92015A 92015-1653 1
WASHER 92022 92022-1299 2
WASHER,STEERING STEM 92022A 92022-1873 1
BUSHING 92028 92028-1581 2
RING-SNAP 92033 92033-1077 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1295 2
RING-O 92055 92055-1123 2
RING-O 92055A 92055-1441 2
BAND,BOOT 92072 92072-1078 2
BAND,CABLE 92072A 92072-1205 1
BAND 92072B 92072-1246 1
SCREW-PAN-CROS 220 220B0408 2
SCREW-PAN-CROS 220A 220B0416 2
SEAL,FORK DUST 92093 92093-1086 2
COLLAR,FORK,L=110 92143 92143-1328 2
FORK-FRONT,BLUE NO.32 44001 44001-1711-GF 1 US
FORK-FRONT,BLUE NO.32 44001A 44001-1733-GF 1 CN
BOLT,FLANGED,8X55 92001 92001-1639 4 US
BOLT,FLANGED,8X55 92001 92001-1639 8 CN
BOLT-FLANGED 131 131G0850 4 US
