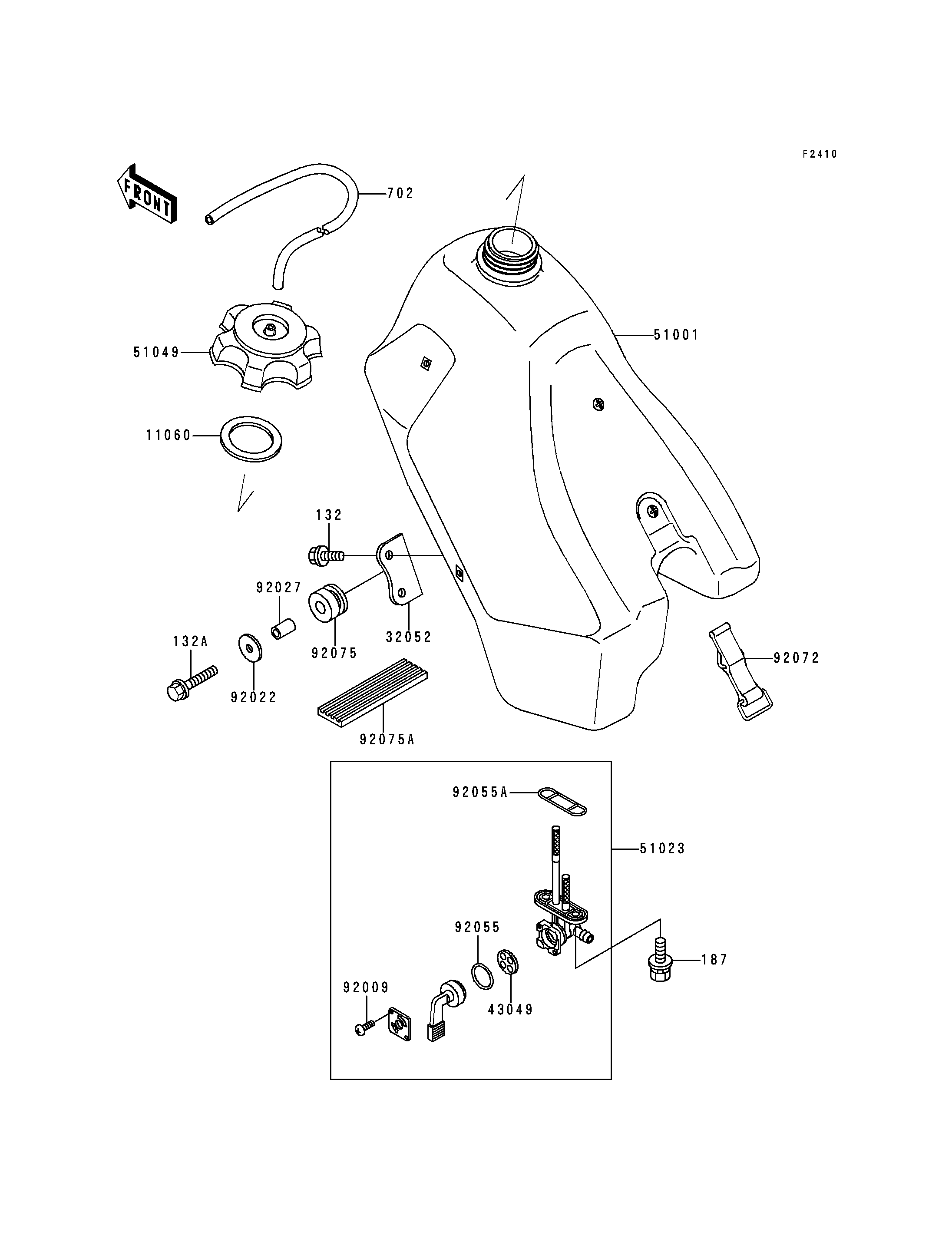

1994 KDX200 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
132
132A
187
702
11060
32052
43049
51001
51023
51049
92009
92022
92027
92055
92055A
92072
92075
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0612 4
BOLT-FLANGED-SMALL 132A 132G0630 2
BOLT-UPSET-WSP 187 187B0616 2
TUBE-RUBBER,5X350 702 702A05350 1
GASKET,FUEL TANK CAP 11060 11060-1340 1
BRACKET-TANK 32052 32052-1169 2
PACKING,FUEL TAP LEVER 43049 43049-1017 1
TANK-COMP-FUEL,L.GREEN 51001 51001-1301-6W 1
TAP-ASSY,FUEL 51023 51023-1165 1
CAP-TANK,FUEL 51049 51049-1089 1
SCREW,3X5 92009 92009-1123 2
WASHER,6.5X24X2 92022 92022-1690 2
COLLAR,6.8X10X17 92027 92027-1833 2
RING-O,FUEL TAP LEVER 92055 92055-1111 1
RING-O,FUEL TAP PACKING 92055A 92055-1348 1
BAND,FUEL TANK 92072 92072-1229 1
DAMPER 92075 92075-1660 2
DAMPER,FUEL TANK 92075A 92075-1987 1
