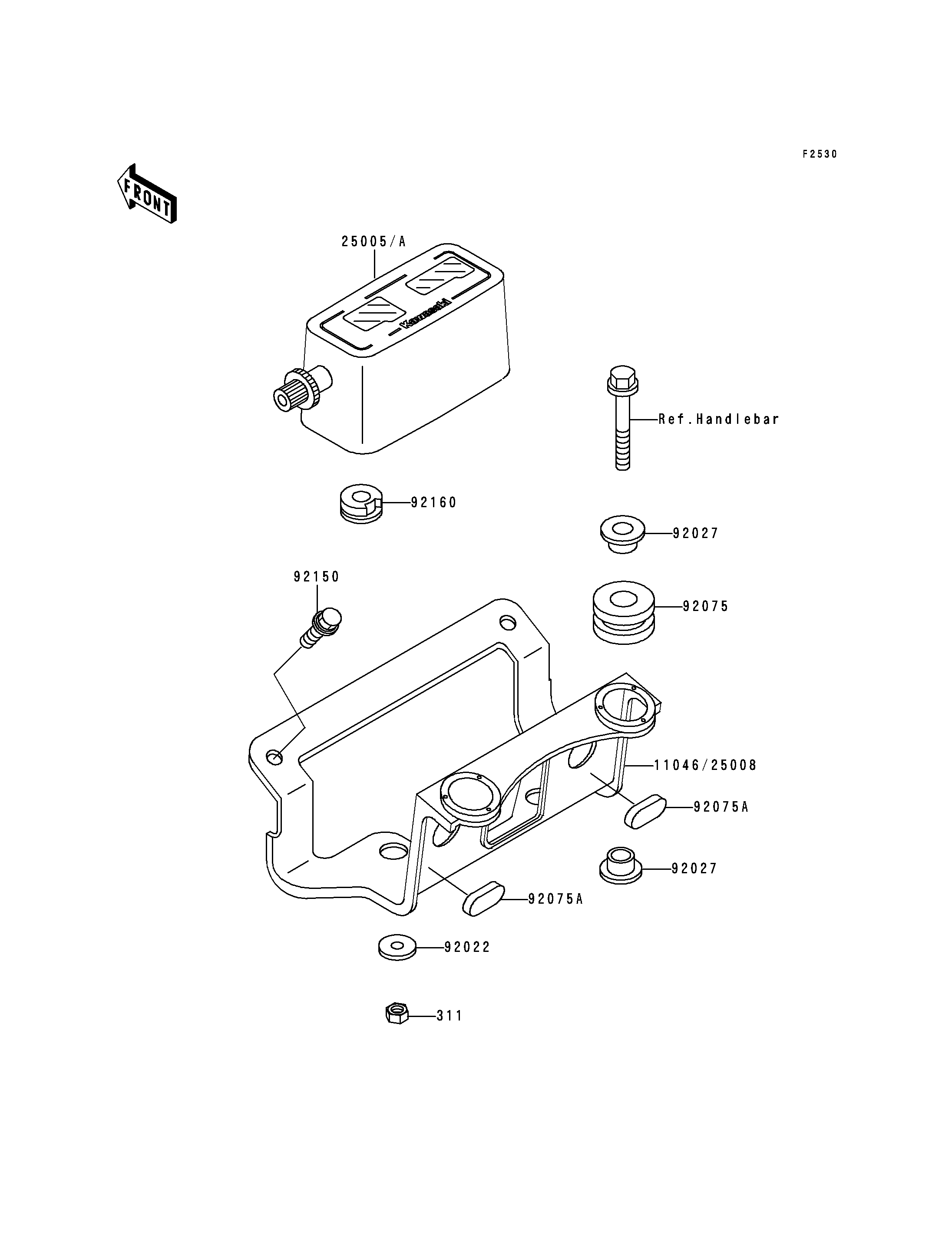

311
25008
92022
92027
92027
92075
92150
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX 311 311B0500 2
BRACKET-METER 25008 25008-1159 1
WASHER,5.2X16X1.2 92022 92022-263 2
COLLAR,METER BRACKET 92027 92027-1585 4
DAMPER 92075 92075-013 2
BOLT,6X14 92150 92150-1340 2
DAMPER 92160 92160-1110 2
SPEEDOMETER,TRIP(MILE) 25005 25005-1496 1 US
SPEEDOMETER,TRIP(KM) 25005A 25005-1497 1 CN
