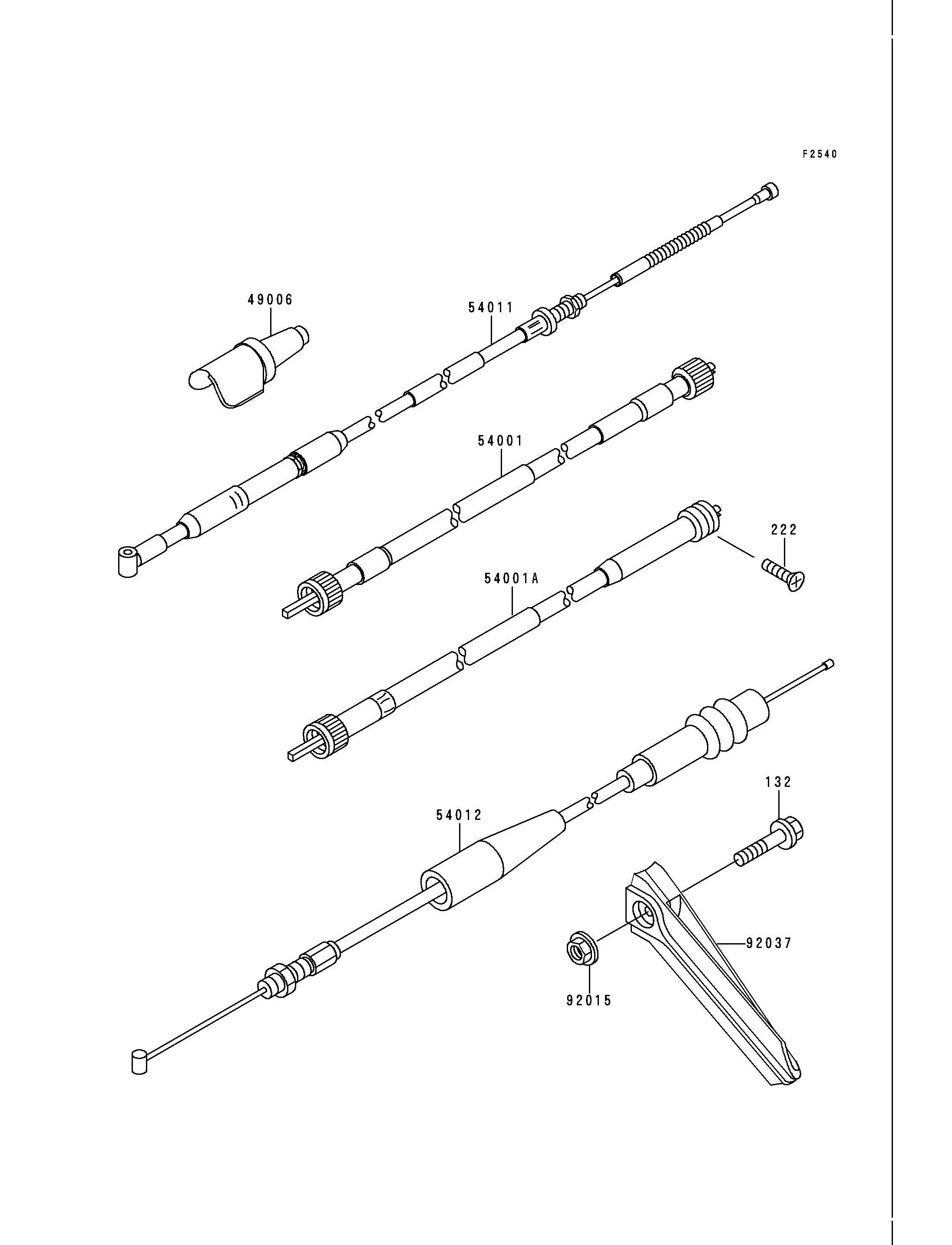

132
49006
54001
54011
54012
92015
92037
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0630 1
BOOT 49006 49006-1189 1
CABLE-SPEEDOMETER 54001 54001-1156 1
CABLE-CLUTCH 54011 54011-1314 1
CABLE-THROTTLE 54012 54012-1360 1
NUT,FLANGED,6MM 92015 92015-1193 1
CLAMP,CABLE 92037 92037-1481 1
