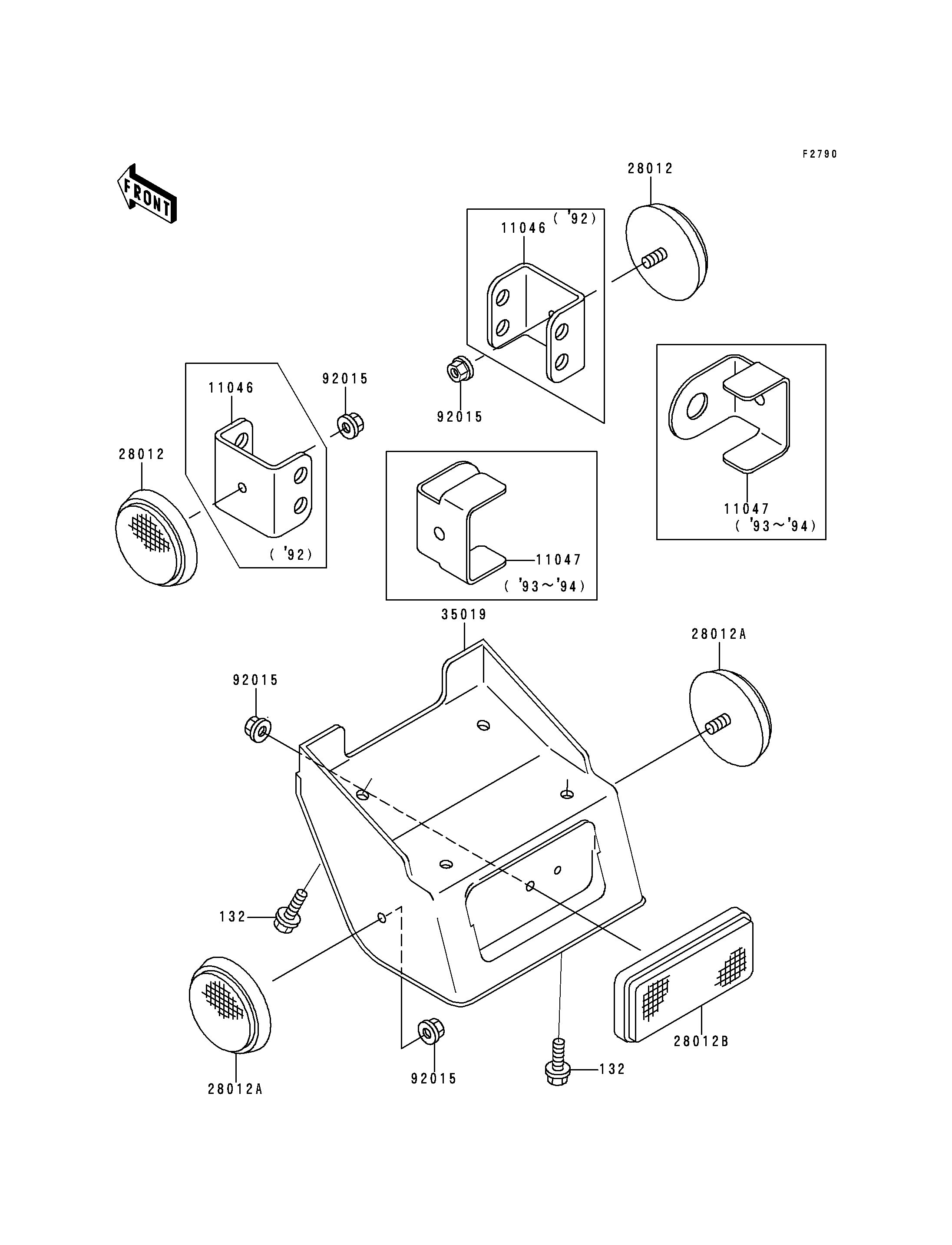

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0610 4 CN
BRACKET,REFLECTOR 11047 11047-1441 2 CN
REFLECTOR-REFLEX,FR 28012 28012-016 2 CN
REFLECTOR-REFLEX 28012A 28012-1067 2 CN
REFLECTOR-REFLEX 28012B 28012-1077 1 CN
FLAP,RR 35019 35019-1245 1 CN
NUT,FLANGED,5MM 92015 92015-1259 5 CN
