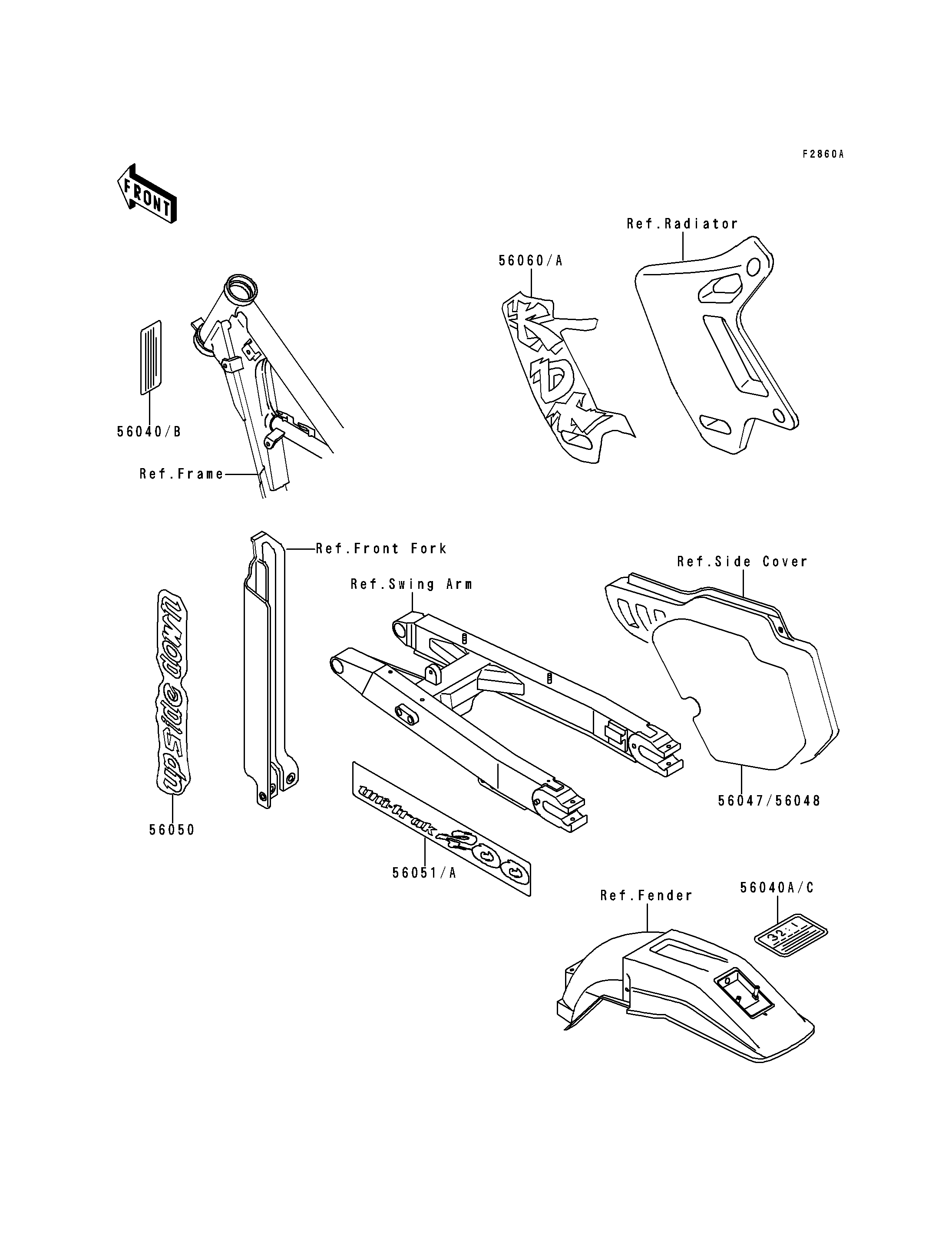

Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

56047
56048
56050
56051
56051A
56060
56060A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PATTERN,SIDE COVER,LH 56047 56047-1784 1
PATTERN,SIDE COVER,RH 56048 56048-1524 1
MARK,UP SIDE DOWN 56050 56050-1835 2
MARK,SWING ARM,LH,UNI-TRAK 200 56051 56051-1027 1
MARK,SWING ARM,RH,200 UNI-TRAK 56051A 56051-1028 1
PATTERN,SHROUD,LH 56060 56060-1711 1
PATTERN,SHROUD,RH 56060A 56060-1712 1
LABEL-WARNING,OFF-ROAD VEHICLE 56040 56040-1018 1 US
LABEL-WARNING,GASOLINE/OIL 56040A 56040-1129 1 US
LABEL-WARNING,OFF-ROAD VEHICLE 56040B 56040-1304 1 CN
LABEL-WARNING,GASOLINE/OIL 56040C 56040-1306 1 CN
