Parts Diagrams |
132
132
132A
132B
132C
551
12021
12022
12022A
13270
13270
13271
13271
14001
92004
92004
92004
92004
92005
92009
92037
92042
92042
92042
92042
92045
92045A
92045A
92045B
92045C
92045C
92045D
92045E
92045F
92046
92046A
92049
92049A
92049B
92049C
92051
92055
92059
92065
92066
92153
92153
92170
92172
92172

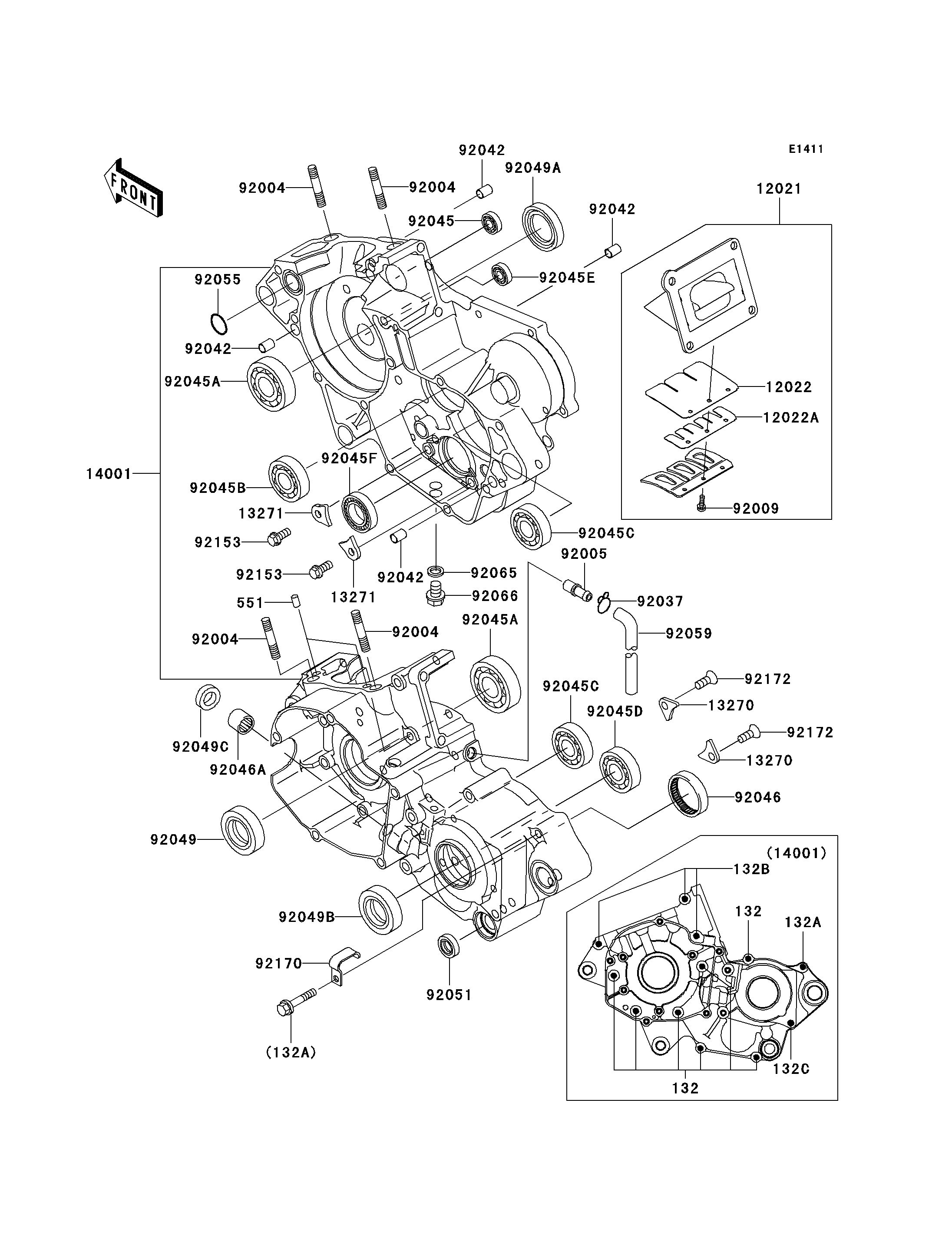

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0640 | 7 | ||
BOLT-FLANGED-SMALL | 132A | 132G0650 | 1 | ||
BOLT-FLANGED-SMALL | 132B | 132G0655 | 3 | ||
BOLT-FLANGED-SMALL | 132C | 132G0675 | 1 | ||
PIN-DOWEL,6X12 | 551 | 551A0612 | 2 | ||
VALVE-ASSY-REED | 12021 | 12021-0012 | 1 | ||
VALVE-REED | 12022 | 12022-0002 | 2 | ||
VALVE-REED | 12022A | 12022-0003 | 2 | ||
PLATE | 13270 | 13270-1638 | 2 | ||
PLATE | 13271 | 13271-0197 | 2 | ||
SET-CRANKCASE | 14001 | 14001-0029 | 1 | ||
STUD,8X28.5 | 92004 | 92004-1252 | 4 | ||
FITTING,BREATHER | 92005 | 92005-1127 | 1 | ||
SCREW,REED VALVE | 92009 | 92009-1014 | 6 | ||
CLAMP | 92037 | 92037-1610 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92042 | 92042-007 | 4 | ||
BEARING-BALL,#628 | 92045 | 92045-1123 | 1 | ||
BEARING-BALL | 92045A | 92045-1209 | 2 | ||
BEARING-BALL,6204X15C | 92045B | 92045-1298 | 1 | ||
BEARING-BALL,SC03A53C3 | 92045C | 92045-1334 | 2 | ||
BEARING-BALL,SX04A81C3 | 92045D | 92045-1335 | 1 | ||
BEARING-BALL,626BUMC3 | 92045E | 92045-1345 | 1 | ||
BEARING-BALL,6805JRZ | 92045F | 92045-1432 | 1 | ||
BEARING-NEEDLE,7E-HKS33X38X8 | 92046 | 92046-1221 | 1 | ||
BEARING-NEEDLE,HK1015 | 92046A | 92046-1300 | 1 | ||
SEAL-OIL | 92049 | 92049-1300 | 1 | ||
SEAL-OIL | 92049A | 92049-1301 | 1 | ||
SEAL-OIL | 92049B | 92049-1413 | 1 | ||
SEAL-OIL,BG1408F0 | 92049C | 92049-1414 | 1 | ||
SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
RING-O | 92055 | 92055-086 | 1 | ||
TUBE,6X9X420 | 92059 | 92059-1946 | 1 | ||
GASKET,10.5X16X1 | 92065 | 92065-058 | 1 | ||
PLUG,DRAIN | 92066 | 92066-1437 | 1 | ||
BOLT,6X14 | 92153 | 92153-0542 | 2 | ||
CLAMP | 92170 | 92170-1555 | 1 | ||
SCREW,6X8 | 92172 | 92172-0086 | 2 |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-DOWEL,6X12 | |
REF # | 551 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
VALVE-ASSY-REED | |
REF # | 12021 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-REED | |
REF # | 12022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
VALVE-REED | |
REF # | 12022A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13270 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SET-CRANKCASE | |
REF # | 14001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STUD,8X28.5 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
FITTING,BREATHER | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,REED VALVE | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,DOWEL,6.3X8X14 | |
REF # | 92042 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BEARING-BALL,#628 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL | |
REF # | 92045A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL,6204X15C | |
REF # | 92045B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,SC03A53C3 | |
REF # | 92045C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL,SX04A81C3 | |
REF # | 92045D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,626BUMC3 | |
REF # | 92045E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,6805JRZ | |
REF # | 92045F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,7E-HKS33X38X8 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,HK1015 | |
REF # | 92046A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,BG1408F0 | |
REF # | 92049C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TB13225.5 | |
REF # | 92051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,6X9X420 | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,10.5X16X1 | |
REF # | 92065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,DRAIN | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X14 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X8 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
