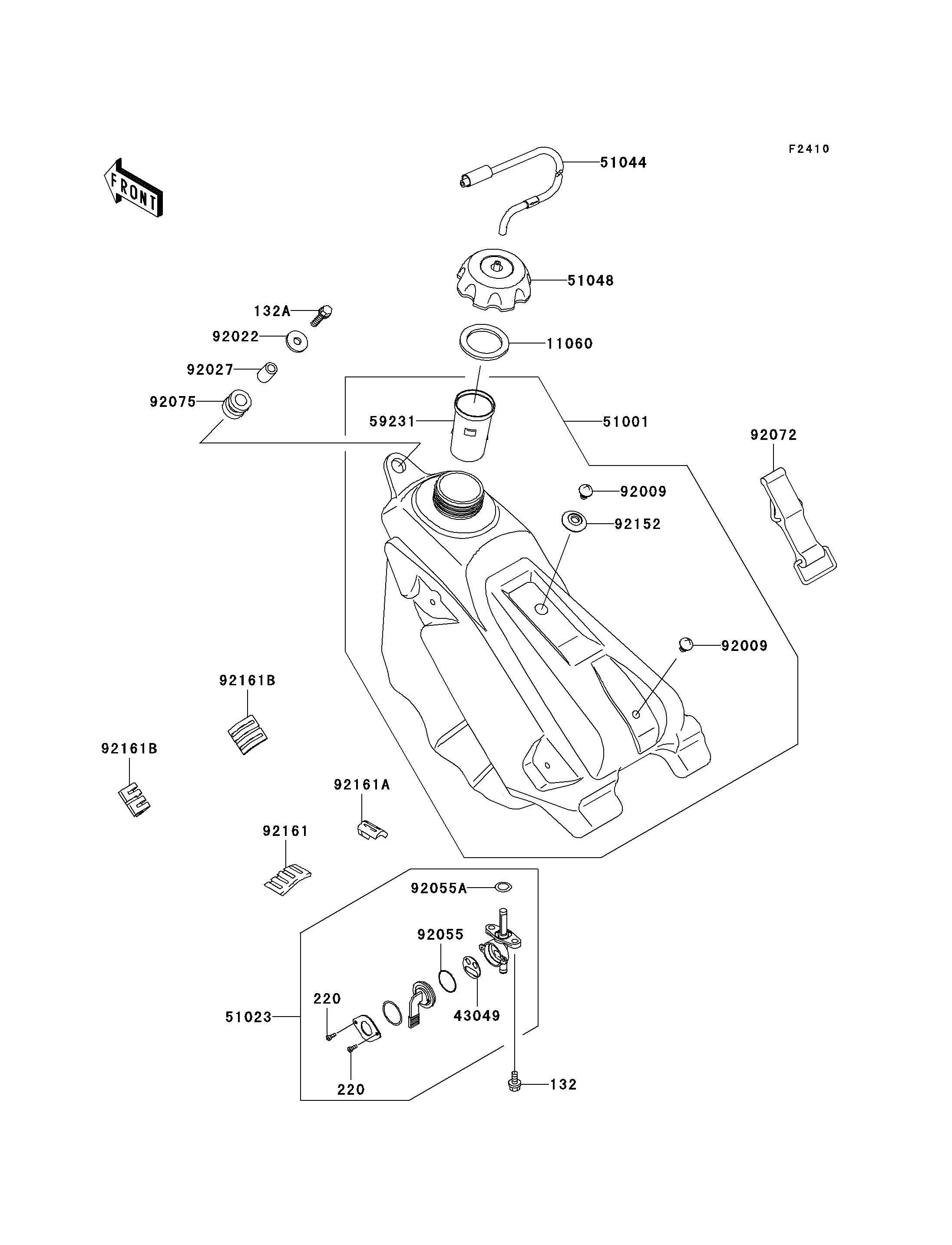

2005 KX125 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
132
132A
220
220
11060
43049
51001
51023
51044
51048
59231
92009
92009
92022
92027
92055
92055A
92072
92075
92152
92161
92161A
92161B
92161B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0612 2
BOLT-FLANGED-SMALL 132A 132G0625 1
SCREW-PAN-CROS 220 220B0308 2
GASKET,FUEL TANK CAP 11060 11060-1340 1
PACKING,TAP VALVE 43049 43049-1091 1
TANK-COMP-FUEL,F.BLACK 51001 51001-0033-6Z 1
TAP-ASSY,FUEL 51023 51023-1395 1
TUBE-ASSY,TANK CAP 51044 51044-0019 1
CAP-ASSY-TANK,FUEL 51048 51048-1124 1
FILLER 59231 59231-1096 1
SCREW,6MM 92009 92009-1971 2
WASHER,6.5X24X2 92022 92022-1690 1
COLLAR,6.8X10X14 92027 92027-1966 1
RING-O,TAP LEVER 92055 92055-1419 1
RING-O,FUEL TAP PACKING 92055A 92055-1700 1
BAND,FUEL TANK 92072 92072-1229 1
DAMPER 92075 92075-1787 1
COLLAR 92152 92152-1346 1
DAMPER,FUEL TANK,RR 92161 92161-1279 1
DAMPER,FUEL TANK,RR 92161A 92161-1280 1
DAMPER,FUEL TANK,SIDE 92161B 92161-1291 2
