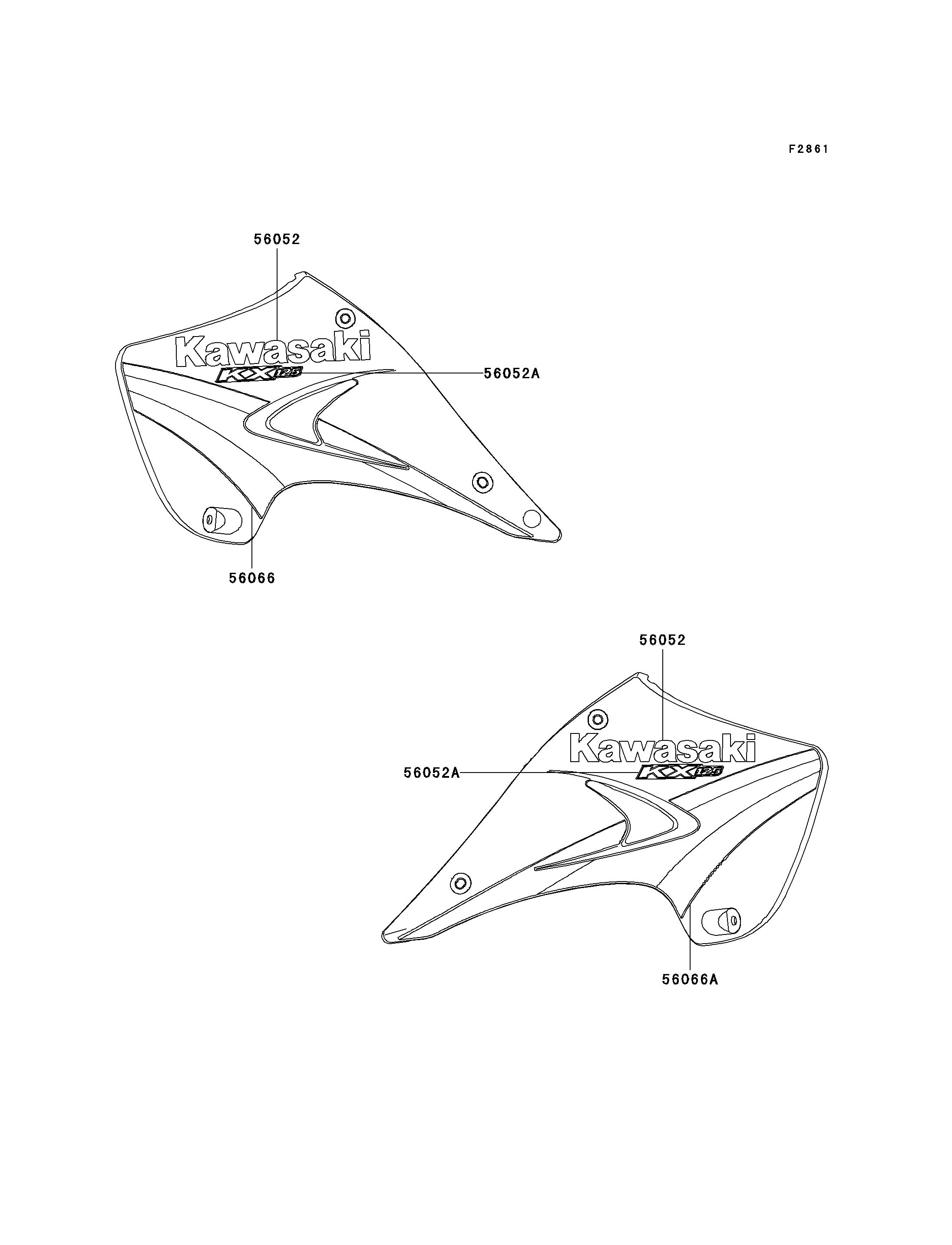

56052
56052
56052A
56052A
56066
56066A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SHROUD,KAWASAKI 56052 56052-0368 2
MARK,SHROUD,KX125 56052A 56052-0394 2
PATTERN,SHROUD,LH 56066 56066-1008 1
PATTERN,SHROUD,RH 56066A 56066-1009 1
