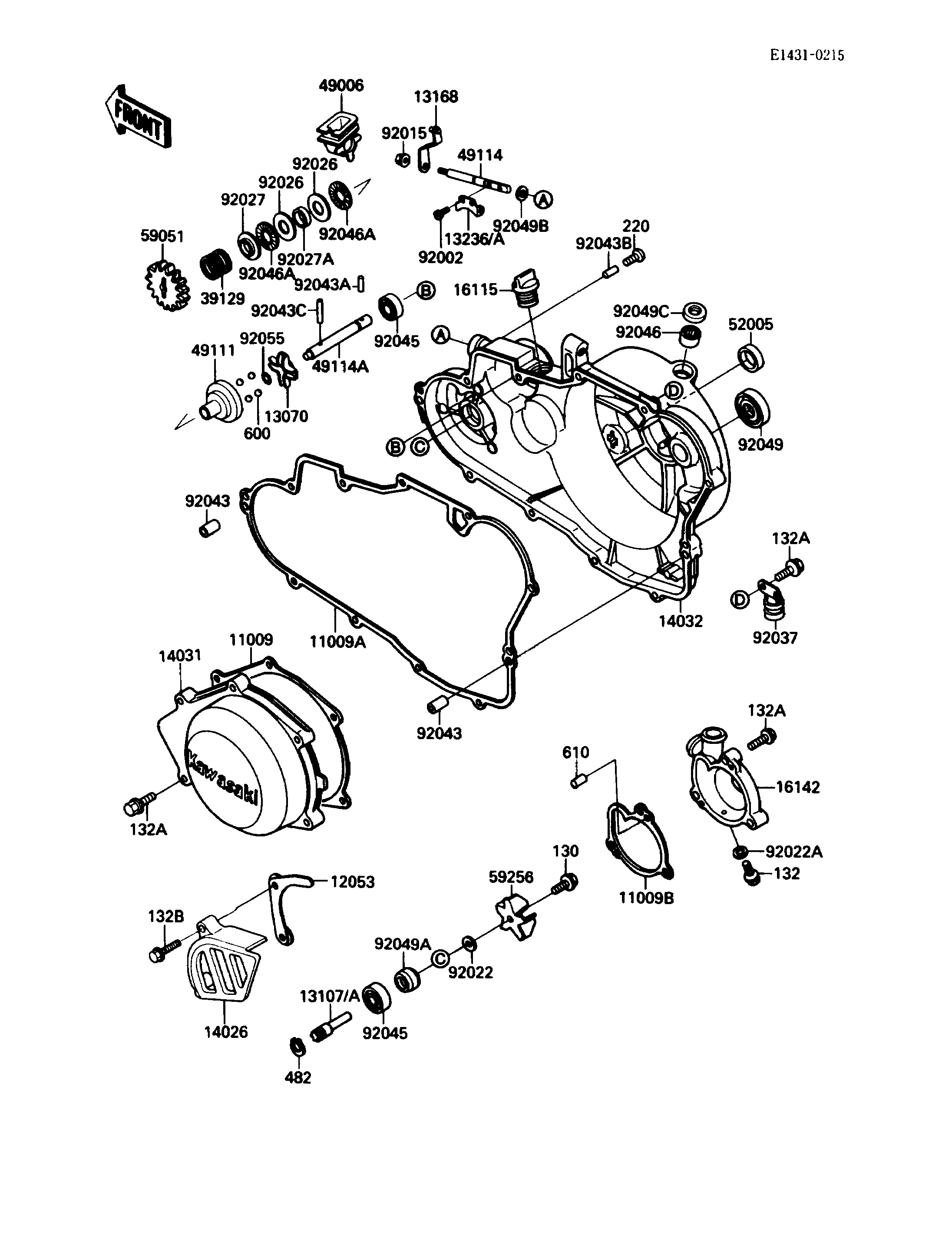

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,GENERATOR COVER | 11009 | 11009-1653 | 1 | ||
GASKET,CLUTCH COVER | 11009A | 11009-1654 | 1 | ||
GASKET,PUMP COVER | 11009B | 11009-1655 | 1 | ||
GUIDE-CHAIN | 12053 | 12053-1251 | 1 | ||
GUIDE | 13070 | 13070-1122 | 1 | ||
SHAFT,PUMP | 13107 | 13107-1198 | 1 | ||
LEVER | 13168 | 13168-1342 | 1 | ||
LEVER-COMP,GOVERNOR | 13236 | 13236-1122 | 1 | ||
COVER-CHAIN | 14026 | 14026-1119 | 1 | ||
COVER-GENERATOR | 14031 | 14031-1204 | 1 | ||
COVER-CLUTCH | 14032 | 14032-1232 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-018 | 1 | ||
COVER-PUMP | 16142 | 16142-1074 | 1 | ||
SPRING-GOVERNER | 39129 | 39129-1001 | 1 | ||
BOOT | 49006 | 49006-1202 | 1 | ||
HOLDER-GOVERNOR WEIGHT | 49111 | 49111-1051 | 1 | ||
SHAFT-GOVERNOR | 49114 | 49114-1061 | 1 | ||
SHAFT-GOVERNOR | 49114A | 49114-1062 | 1 | ||
GAUGE,OIL LEVEL | 52005 | 52005-1055 | 1 | ||
GEAR-SPUR,GOVERNOR | 59051 | 59051-1183 | 1 | ||
IMPELLER | 59256 | 59256-1067 | 1 | ||
BOLT,SOCKET,4X8 | 92002 | 92002-1403 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1193 | 1 | ||
WASHER,5.2X13X1 | 92022 | 92022-1380 | 1 | ||
WASHER,6.2X11X1 | 92022A | 92022-304 | 1 | ||
SPACER,15X28X1 | 92026 | 92026-1238 | 2 | ||
COLLAR | 92027 | 92027-1838 | 1 | ||
COLLAR,15.2X17X4 | 92027A | 92027-1839 | 1 | ||
CLAMP | 92037 | 92037-1927 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92043 | 92042-007 | 2 | ||
PIN,3X12.8 | 92043A | 92043-1256 | 1 | ||
PIN,2X9.8 | 92043B | 92043-1293 | 1 | ||
PIN,3X19.8 | 92043C | 92043-1319 | 1 | ||
BEARING-BALL,#608 | 92045 | 92045-1048 | 2 | ||
BEARING-NEEDLE,HK1210 | 92046 | 92046-1010 | 1 | ||
BEARING-NEEDLE,AXK1102 | 92046A | 92046-1052 | 2 | ||
SEAL-OIL,SB18307 | 92049 | 92049-013 | 1 | ||
SEAL-OIL,A9567 | 92049A | 92049-1081 | 1 | ||
SEAL-OIL,SDO8144 | 92049B | 92049-1207 | 1 | ||
SEAL-OIL,TB12205.5 | 92049C | 92049-1271 | 1 | ||
RING-O,5.5X1.5 | 92055 | 92055-1343 | 1 | ||
BOLT-FLANGED | 130 | 130P0510 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0608 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132G0625 | 20 | ||
BOLT-FLANGED-SMALL | 132B | 132G0630 | 2 | ||
SCREW-PAN-CROS | 220 | 220B0306 | 1 | ||
CIRCLIP-TYPE-E,7MM | 482 | 482J7000 | 1 | ||
BALL-STEEL,5/16" | 600 | 600A1000 | 4 | ||
ROLLER,4X8 | 610 | 610A0408 | 2 |
