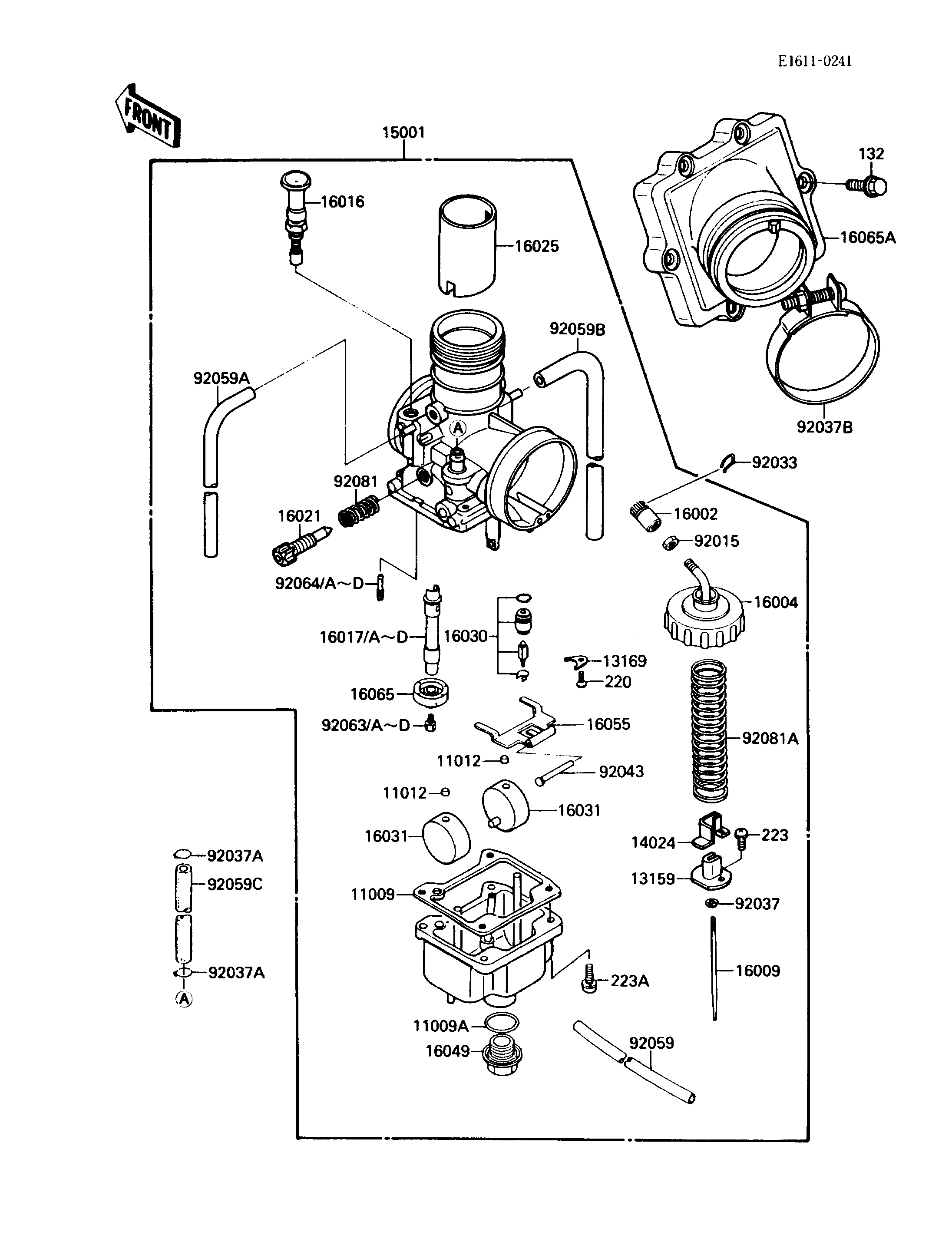

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FLOAT CHAMBER | 11009 | 11009-1275 | 1 | ||
GASKET,MAIN JET COVER | 11009A | 16038-009 | 1 | ||
CAP,FLOAT | 11012 | 11012-1047 | 2 | ||
CONNECTOR | 13159 | 13159-1004 | 1 | ||
PLATE,LOCK | 13169 | 13169-1190 | 1 | ||
COVER,THROTTLE VALVE | 14024 | 14025-1113 | 1 | ||
CARBURETOR-ASSY | 15001 | 15001-1338 | 1 | ||
ADJUSTER-CABLE | 16002 | 16002-1006 | 1 | ||
CAP-CHAMBER,MIXING | 16004 | 16004-1013 | 1 | ||
NEEDLE-JET,6FL61-3 | 16009 | 16009-1350 | 1 | ||
PLUNGER,STARTER | 16016 | 16016-1013 | 1 | ||
JET-NEEDLE,Q-8 | 16017 | 16017-1295 | 1 | (OPTION) | |
JET-NEEDLE,Q-6 | 16017A | 16017-1306 | 1 | (OPTION) | |
JET-NEEDLE,Q-4 | 16017B | 16017-1333 | 1 | ||
JET-NEEDLE,Q-2 | 16017C | 16017-1334 | 1 | (OPTION) | |
JET-NEEDLE,Q-0 | 16017D | 16017-1336 | 1 | (OPTION) | |
SCREW-THROTTLE STOP | 16021 | 16021-1029 | 1 | ||
VALVE-THROTTLE,CA 3.0 | 16025 | 16025-1145 | 1 | ||
VALVE-FLOAT,3.3 | 16030 | 16030-1020 | 1 | ||
FLOAT | 16031 | 16031-029 | 2 | ||
COVER-MAIN JET | 16049 | 16049-006 | 1 | ||
ARM-FLOAT | 16055 | 16055-009 | 1 | ||
HOLDER-CARBURETOR,NEEDLE JET | 16065 | 16065-1045 | 1 | ||
HOLDER-CARBURETOR | 16065A | 16065-1163 | 1 | ||
NUT,CABLE ADJUST LOCK | 92015 | 16003-004 | 1 | ||
RING-SNAP | 92033 | 92036-018 | 1 | ||
CLAMP,E-TYPE | 92037 | 16008-010 | 1 | ||
CLAMP,TUBE | 92037A | 92037-147 | 2 | ||
CLAMP,55MM | 92037B | 92037-1486 | 1 | ||
PIN,FLOAT | 92043 | 16032-008 | 1 | ||
TUBE,3.5X6.5X350 | 92059 | 92059-1211 | 1 | ||
TUBE,4X7X250 | 92059A | 92059-1858 | 1 | ||
TUBE,4X7X325 | 92059B | 92059-1877 | 1 | ||
TUBE,2.5X5.8X270 | 92059C | 92059-3731 | 1 | ||
JET-MAIN,#240 | 92063 | 92063-026 | 1 | (OPTION) | |
JET-MAIN,#250 | 92063A | 92063-027 | 1 | (OPTION) | |
JET-MAIN,#260 | 92063B | 92063-028 | 1 | ||
JET-MAIN,#270 | 92063C | 92063-029 | 1 | (OPTION) | |
JET-MAIN,#280 | 92063D | 92063-030 | 1 | (OPTION) | |
JET-PILOT,#30 | 92064 | 92064-022 | 1 | ||
JET-PILOT,#35 | 92064A | 92064-023 | 1 | (OPTION) | |
JET-PILOT,#40 | 92064B | 92064-024 | 1 | (OPTION) | |
JET-PILOT,#25 | 92064C | 92064-032 | 1 | (OPTION) | |
JET-PILOT,#27.5 | 92064D | 92064-1033 | 1 | (OPTION) | |
SPRING,THROTTLE STOP SCREW | 92081 | 16022-005 | 1 | ||
SPRING,THROTTLE VALVE | 92081A | 92081-1432 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0620 | 6 | ||
SCREW-PAN-CROS,4X6 | 220 | 220B0406 | 1 | ||
SCREW-PAN-WS-CROS | 223 | 223B0308 | 2 | ||
SCREW-PAN-WS-CROS | 223A | 223B0518 | 4 |
