Parts Diagrams |

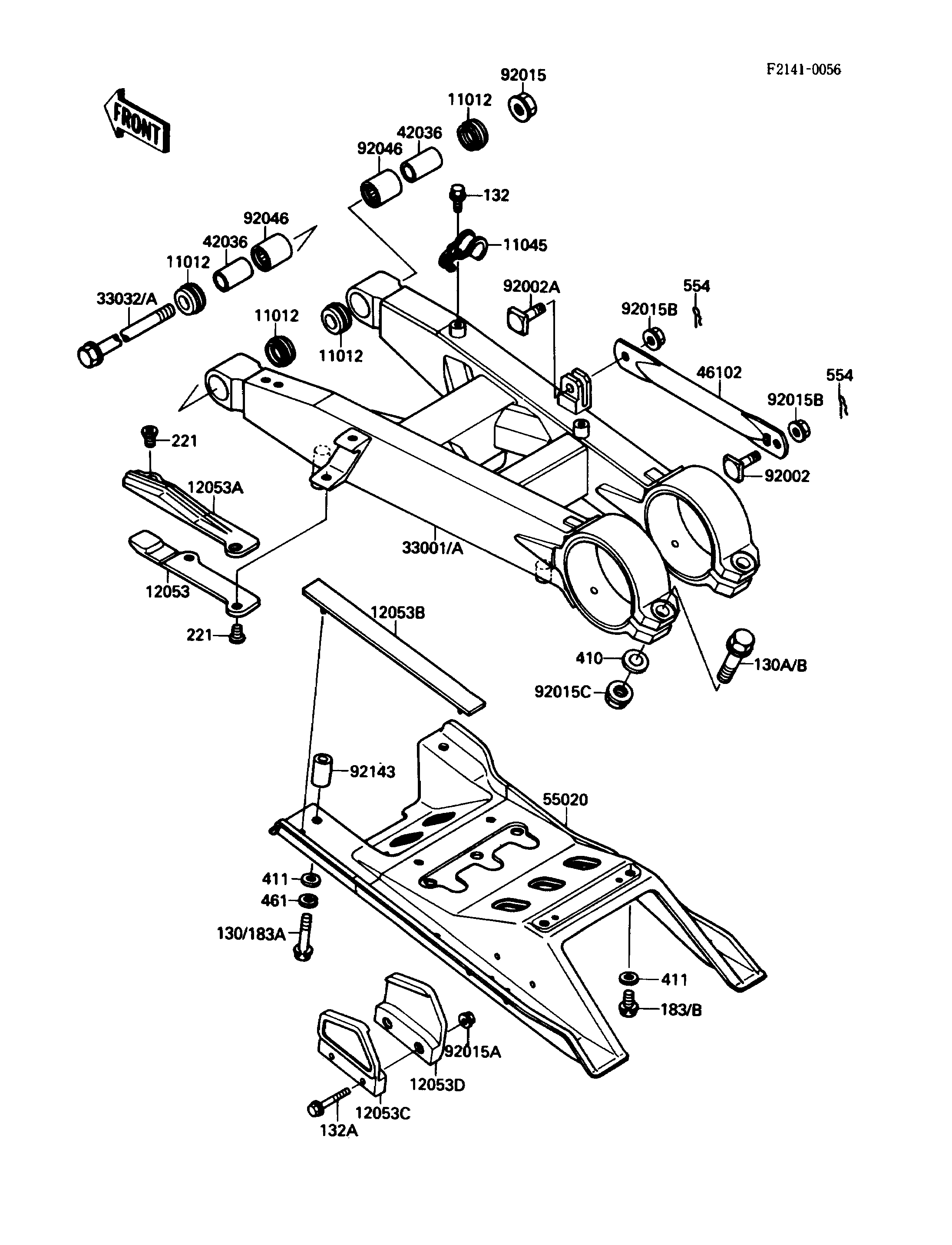

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,SWING ARM | 11012 | 11012-1259 | 4 | ||
BRACKET | 11045 | 11045-1447 | 2 | ||
GUIDE-CHAIN,FR,LWR | 12053 | 12053-1208 | 1 | ||
GUIDE-CHAIN,FR,UPP | 12053A | 12053-1213 | 1 | ||
GUIDE-CHAIN | 12053B | 12053-1218 | 1 | ||
GUIDE-CHAIN,LH | 12053C | 12053-1230 | 1 | ||
GUIDE-CHAIN,RH | 12053D | 12053-1231 | 1 | ||
ARM-COMP-SWING | 33001 | 33001-1286 | 1 | ||
SHAFT-SWING ARM | 33032 | 33032-1130 | 1 | ||
SLEEVE,SWING ARM | 42036 | 42036-1064 | 2 | ||
ROD,TORQUE | 46102 | 46102-1179 | 1 | ||
GUARD | 55020 | 55020-1294 | 1 | ||
BOLT,10X28 | 92002 | 92002-1733 | 1 | ||
BOLT,BRAKE ROD,10X30 | 92002A | 92002-1915 | 1 | ||
NUT,FLANGED,14MM | 92015 | 92015-1032 | 1 | ||
NUT,FLANGED,6MM | 92015A | 92015-1193 | 2 | ||
NUT,LOCK,10MM | 92015B | 92015-1597 | 2 | ||
NUT,LOCK,12MM | 92015C | 92015-1617 | 2 | ||
BEARING-NEEDLE,TA2030Z | 92046 | 92046-1128 | 2 | ||
COLLAR,L=26 | 92143 | 92143-1155 | 2 | ||
BOLT-FLANGED,12X55 | 130A | 130P1255 | 2 | ||
BOLT-FLANGED-SMALL | 132 | 132G0612 | 2 | ||
BOLT-FLANGED-SMALL | 132A | 132G0645 | 2 | ||
BOLT-UPSET-WS-SMALL | 183 | 183B0818 | 2 | ||
BOLT-UPSET-WS-SMALL | 183A | 183B0845 | 2 | ||
SCREW-CSK-CROS,6X10 | 221 | 221B0610 | 4 | ||
WASHER-PLAIN,8MM | 411 | 411B0800 | 4 | ||
PIN-SNAP,10MM | 554 | 554A1000 | 2 |
CAP,SWING ARM | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,FR,LWR | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,FR,UPP | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN | |
REF # | 12053B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,LH | |
REF # | 12053C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RH | |
REF # | 12053D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-COMP-SWING | |
REF # | 33001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM | |
REF # | 33032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,SWING ARM | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ROD,TORQUE | |
REF # | 46102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,10X28 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,BRAKE ROD,10X30 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,14MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,10MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,12MM | |
REF # | 92015C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,TA2030Z | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,L=26 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,12X55 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-UPSET-WS-SMALL | |
REF # | 183 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-UPSET-WS-SMALL | |
REF # | 183A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS,6X10 | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,8MM | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN-SNAP,10MM | |
REF # | 554 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
