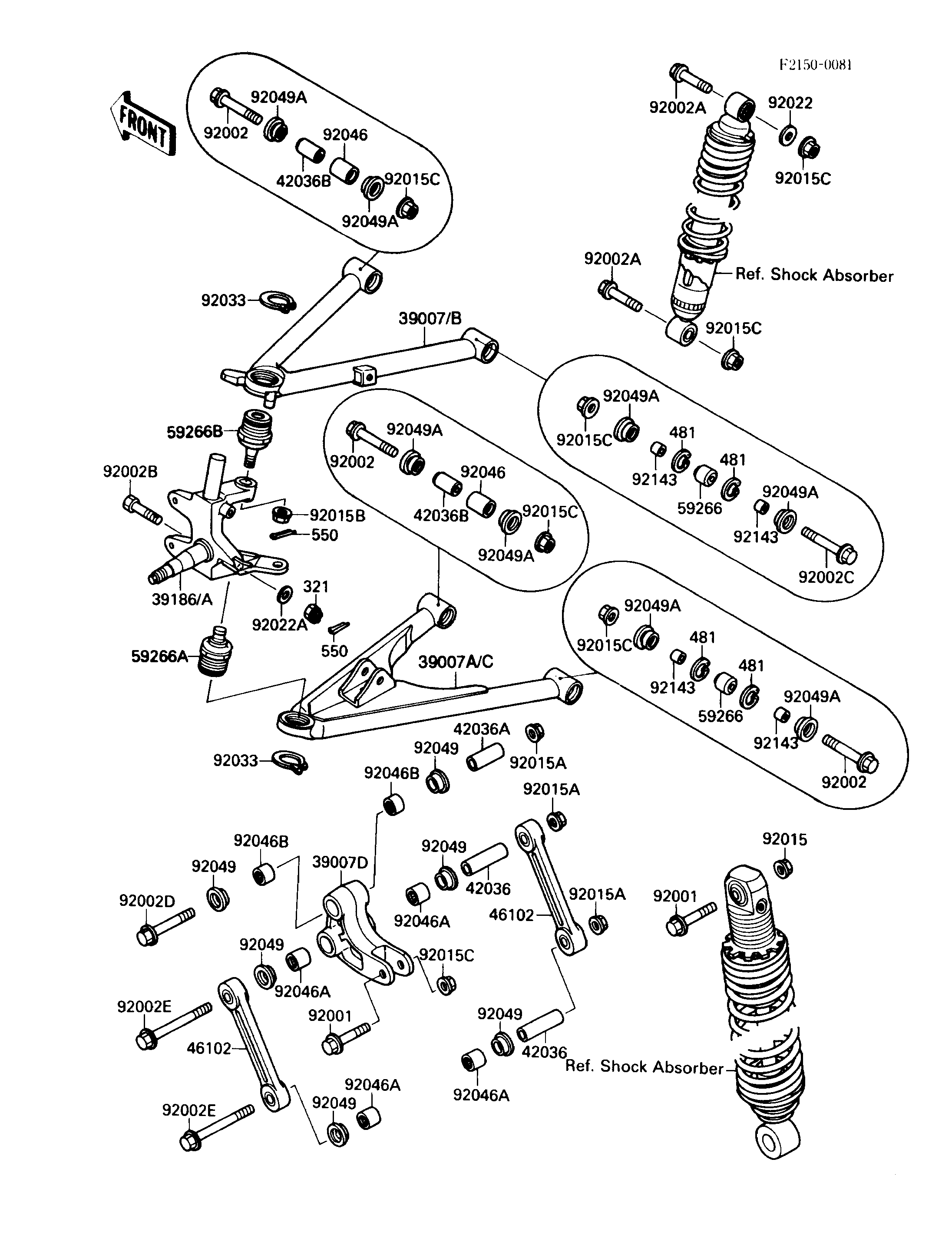

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
ARM-SUSP,UPP,LH | 39007 | 39007-1121 | 1 | ||
ARM-SUSP,LWR,LH | 39007A | 39007-1122 | 1 | ||
ARM-SUSP,UPP,RH | 39007B | 39007-1123 | 1 | ||
ARM-SUSP,LWR,RH | 39007C | 39007-1124 | 1 | ||
ARM-SUSP,UNI TRAK | 39007D | 39007-1125 | 1 | ||
KNUCKLE,LH | 39186 | 39186-1069 | 1 | ||
KNUCKLE,RH | 39186A | 39186-1070 | 1 | ||
SLEEVE,L=65 | 42036 | 42036-1174 | 2 | ||
SLEEVE,L=49 | 42036A | 42036-1175 | 1 | ||
SLEEVE,10X17X40 | 42036B | 42036-1183 | 4 | ||
ROD,SUSPENSION | 46102 | 46102-1201 | 2 | ||
JOINT-BALL | 59266 | 59266-1011 | 4 | ||
JOINT-BALL | 59266A | 59266-1064 | 2 | ||
JOINT-BALL | 59266B | 59266-1075 | 2 | ||
BOLT,10X50 | 92001 | 92001-1913 | 2 | ||
BOLT,FLANGED,10X61 | 92002 | 92002-1738 | 6 | ||
BOLT,FLANGED,10X46 | 92002A | 92002-1740 | 4 | ||
BOLT,10X41 | 92002B | 92002-1741 | 2 | ||
BOLT,FLANGED,10X80 | 92002C | 92002-1764 | 2 | ||
BOLT,FLANGED,14X81.5 | 92002D | 92002-1979 | 1 | ||
BOLT,FLANGED,14X107.5 | 92002E | 92002-1980 | 2 | ||
NUT,FLANGED,10MM | 92015 | 92015-1335 | 1 | ||
NUT,14MM | 92015A | 92015-1411 | 3 | ||
NUT,FLANGED,10MM | 92015B | 92015-1502 | 2 | ||
NUT,LOCK,10MM | 92015C | 92015-1597 | 13 | ||
WASHER,10X22X3.2 | 92022 | 92022-176 | 2 | ||
WASHER,10.2X16X1 | 92022A | 92022-1829 | 2 | ||
RING-SNAP,30MM | 92033 | 92033-1218 | 4 | ||
BEARING-NEEDLE | 92046 | 92046-1046 | 4 | ||
BEARING-NEEDLE,F-2020 | 92046A | 92046-1150 | 4 | ||
BEARING-NEEDLE,F-2016 | 92046B | 92046-1151 | 2 | ||
SEAL-OIL,MHA20265.2F | 92049 | 92049-1154 | 6 | ||
SEAL-OIL,MHA17245.7F | 92049A | 92049-1223 | 16 | ||
COLLAR,10X17X12 | 92143 | 92143-1010 | 8 | ||
NUT-CASTLE | 321 | 321H1000 | 2 | ||
CIRCLIP | 481 | 481J2400 | 8 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 4 |
