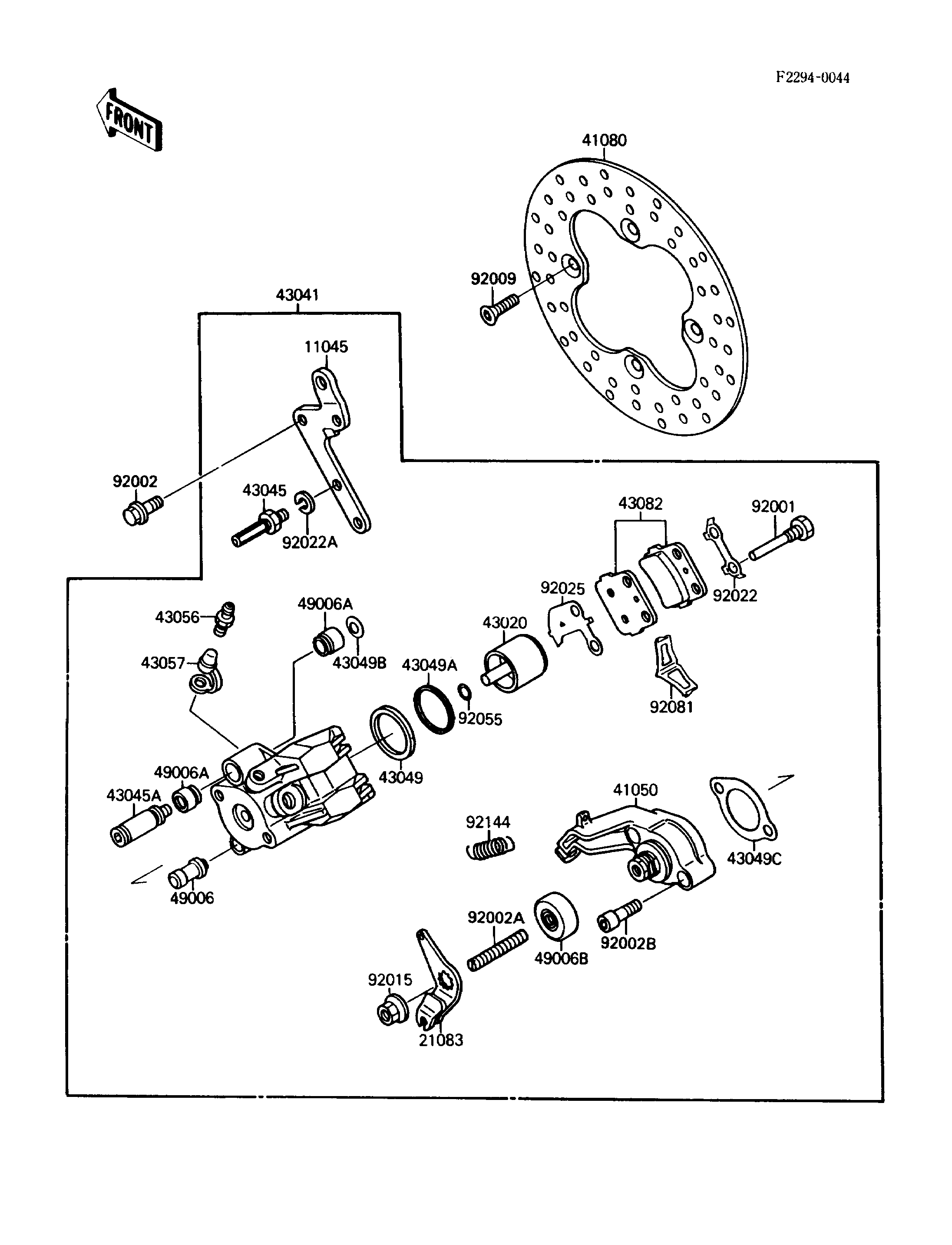

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET | 11045 | 11045-1105 | 1 | ||
ARM | 21083 | 21083-1061 | 1 | ||
CAM-BRAKE,RR CALIPER | 41050 | 41050-1072 | 1 | ||
DISC,RR | 41080 | 41080-1185 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1064 | 1 | ||
CALIPER-ASSY,RR | 43041 | 43041-1220 | 1 | ||
SHAFT-CALIPER | 43045 | 43045-1010 | 1 | ||
SHAFT-CALIPER | 43045A | 43045-1051 | 1 | ||
PACKING,PISTON SEAL | 43049 | 43049-1023 | 1 | ||
PACKING,PISTON SEAL | 43049A | 43049-1024 | 1 | ||
PACKING | 43049B | 43049-1025 | 1 | ||
PACKING | 43049C | 43049-1053 | 1 | ||
BREATHER-BRAKE | 43056 | 43056-1052 | 1 | ||
CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
PAD-ASSY-BRAKE | 43082 | 43082-1066 | 1 | ||
BOOT,CALIPER | 49006 | 49006-1088 | 1 | ||
BOOT,CALIPER | 49006A | 49006-1089 | 2 | ||
BOOT,CALIPER | 49006B | 49006-1193 | 1 | ||
BOLT,PAD HOLDER | 92001 | 92001-1723 | 2 | ||
BOLT,FLANGED,8X13 | 92002 | 92002-1737 | 2 | ||
BOLT,ADJUST | 92002A | 92002-1771 | 1 | ||
BOLT | 92002B | 92002-1772 | 2 | ||
SCREW,8X18 | 92009 | 92009-1408 | 4 | ||
NUT | 92015 | 92015-1600 | 1 | ||
WASHER,LOCK | 92022 | 92022-1372 | 1 | ||
WASHER,WAVE | 92022A | 92022-1373 | 1 | ||
SHIM,PAD | 92025 | 92025-1344 | 1 | ||
RING-O | 92055 | 92055-1351 | 1 | ||
SPRING,PAD | 92081 | 92081-1502 | 1 | ||
SPRING | 92144 | 92144-1037 | 1 |
