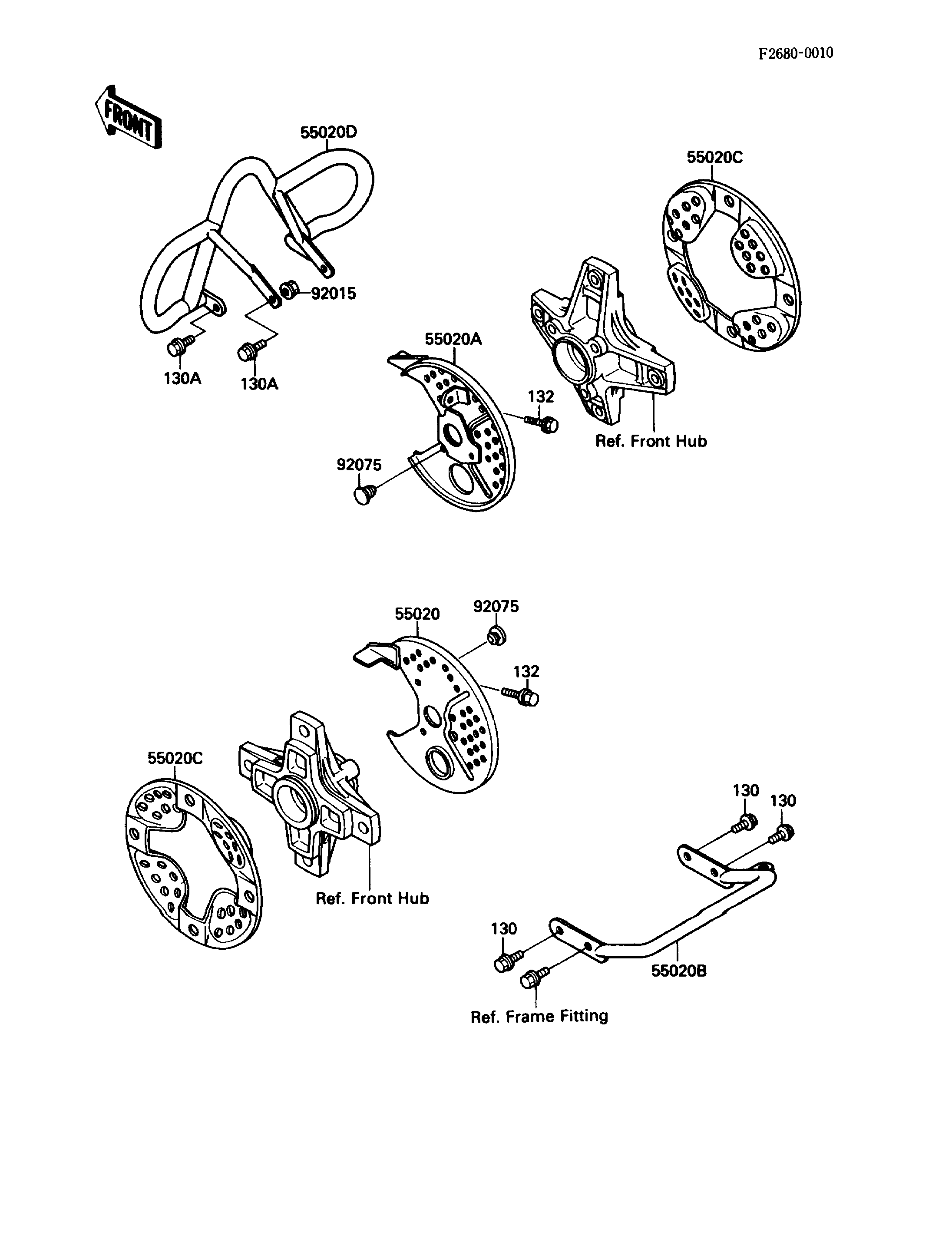

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUARD,FRONT HUB,INNER,LH 55020 55020-1223 1
GUARD,FRONT HUB,INNER,RH 55020A 55020-1224 1
GUARD,RR 55020B 55020-1259 1
GUARD,FRONT HUB,OUTER 55020C 55020-1263 2
GUARD 55020D 55020-1264 1
NUT,8MM 92015 92015-1143 2
DAMPER,INNER 92075 92075-1822 6
BOLT-FLANGED,8X12 130 130G0812 3
BOLT-FLANGED,8X14 130A 130G0814 4
BOLT-FLANGED-SMALL 132 132G0610 2
