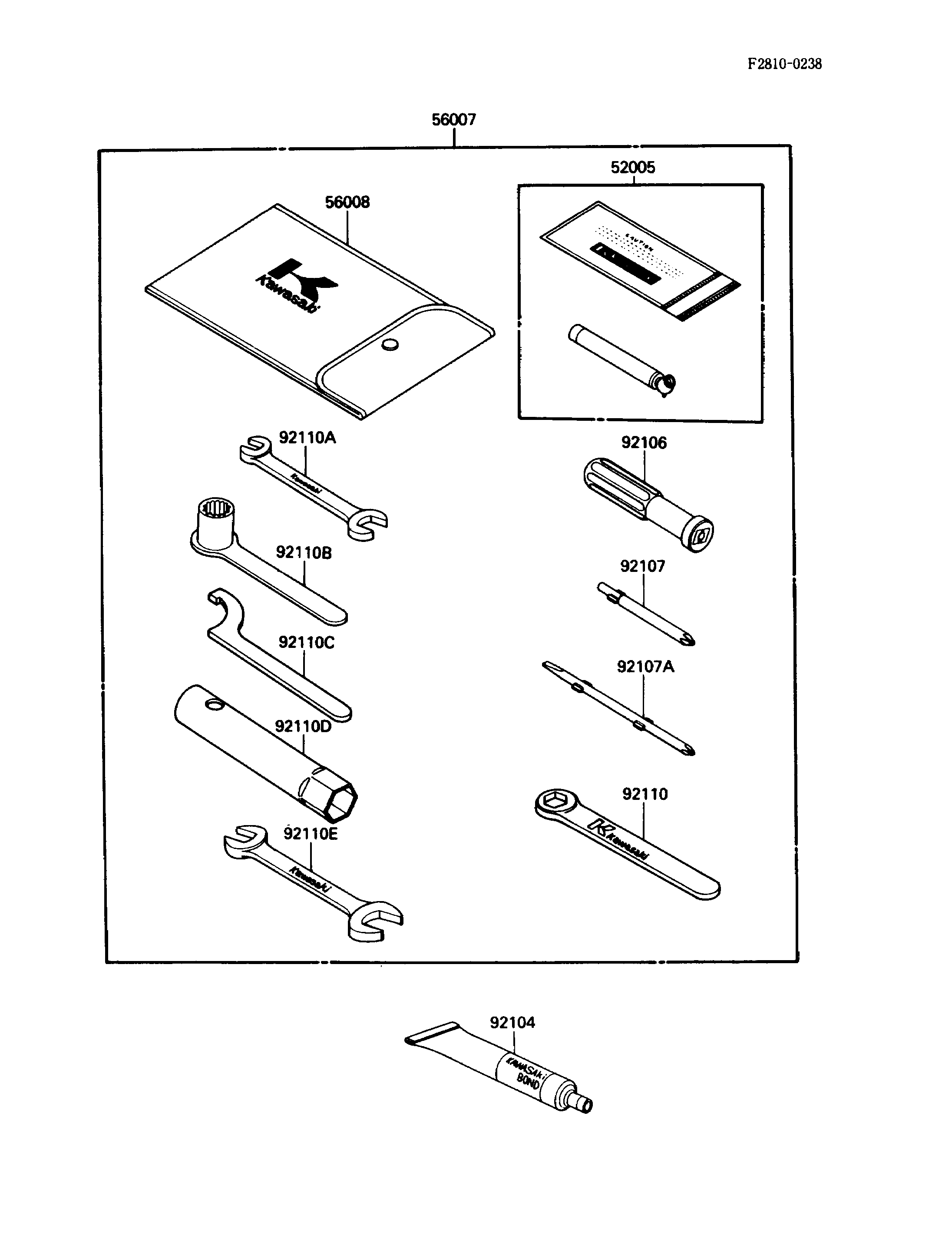

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GAUGE,AIR 52005 52005-1082 1
TOOLKIT 56007 56007-1257 1
BAG,TOOL 56008 56008-1019 1
GASKET-LIQUID,TUBE,100G,SILVER 92104 92104-002 1
GRIP-SCREW DRIVER 92106 92106-1001 1
TOOL-DRIVER,#3PHILLIPS 92107 92107-005 1
TOOL-DRIVER,#2PHILLIPS&SLOT 92107A 92107-1051 1
TOOL-WRENCH,BOX END,19MM 92110 92110-1011 1
TOOL-WRENCH,OPEN END,10X12 92110A 92110-1117 1
TOOL-WRENCH,SPARK PLUG 92110B 92110-1126 1
TOOL-WRENCH,HOOK 92110C 92110-1138 1
TOOL-WRENCH,BOX,8MM 92110D 92110-1139 1
TOOL-WRENCH,OPEN END,14X17 92110E 92126-003 1
