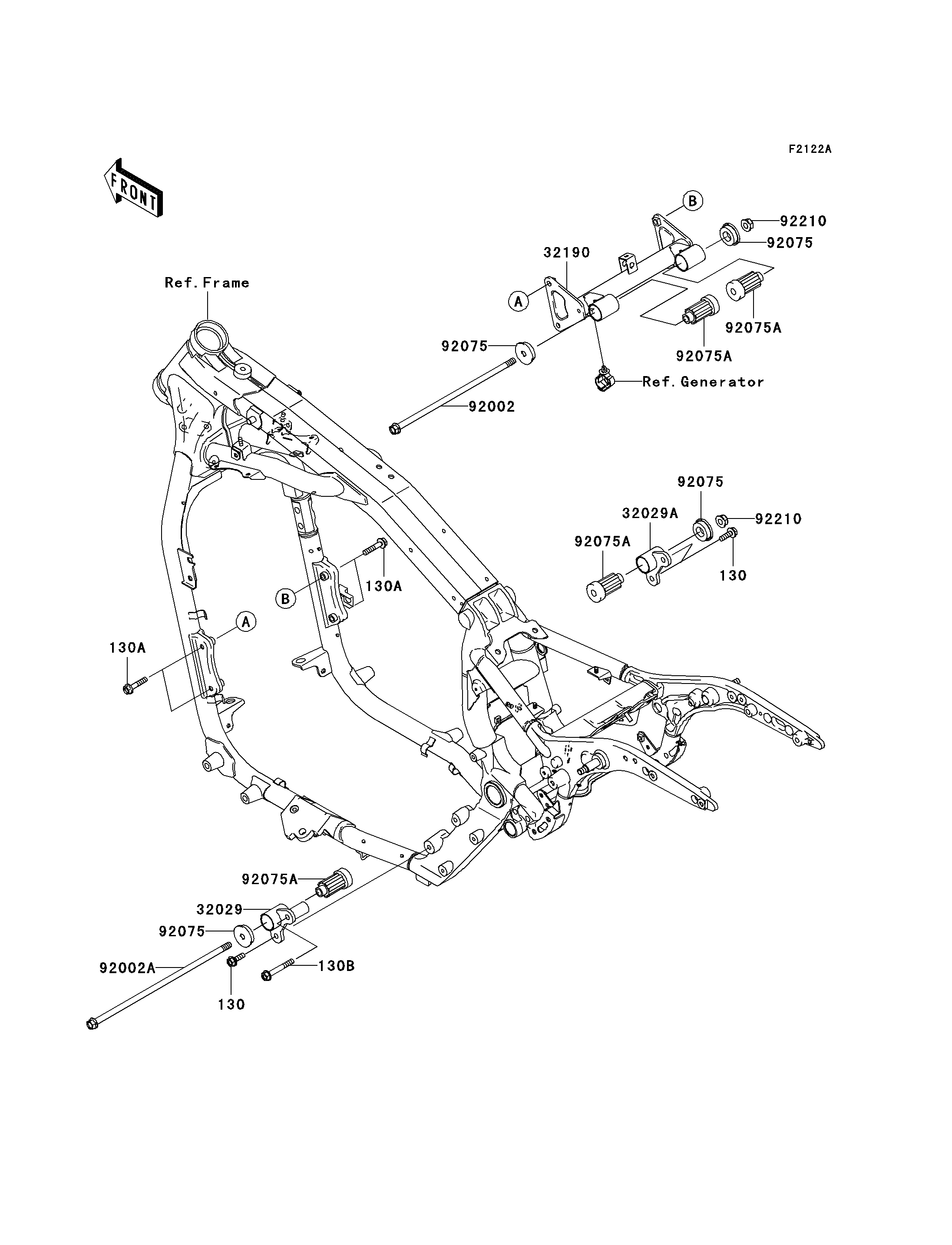

2005 Vulcan 1600 Classic - Engine Mount(A3)
130
130
130A
130A
130B
32029
32029A
32190
92002
92002A
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X25,BLACK | 130 | 130J0825 | 3 | ||
| BOLT-FLANGED,8X40 | 130A | 130J0840 | 4 | ||
| BOLT-FLANGED,M8X60 | 130B | 130J0860 | 1 | ||
| BRACKET-ENGINE,RR,LH | 32029 | 32029-1986 | 1 | ||
| BRACKET-ENGINE,RR,RH | 32029A | 32029-1987 | 1 | ||
| BRACKET-ENGINE,FR | 32190 | 32190-0022 | 1 | ||
| BOLT,FLANGED,10X285 | 92002 | 92002-1206 | 1 | ||
| BOLT,FLANGED,10X330 | 92002A | 92002-1540 | 1 | ||
| DAMPER,ENGINE MOUNT | 92075 | 92075-1738 | 4 | ||
| DAMPER,ENGINE MOUNT,MAIN | 92075A | 92075-1739 | 4 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1081 | 2 |
| BOLT-FLANGED,8X25,BLACK | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X40 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,M8X60 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,RR,LH | |
| REF # | 32029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,RR,RH | |
| REF # | 32029A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,FR | |
| REF # | 32190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X285 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X330 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,ENGINE MOUNT | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,ENGINE MOUNT,MAIN | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
