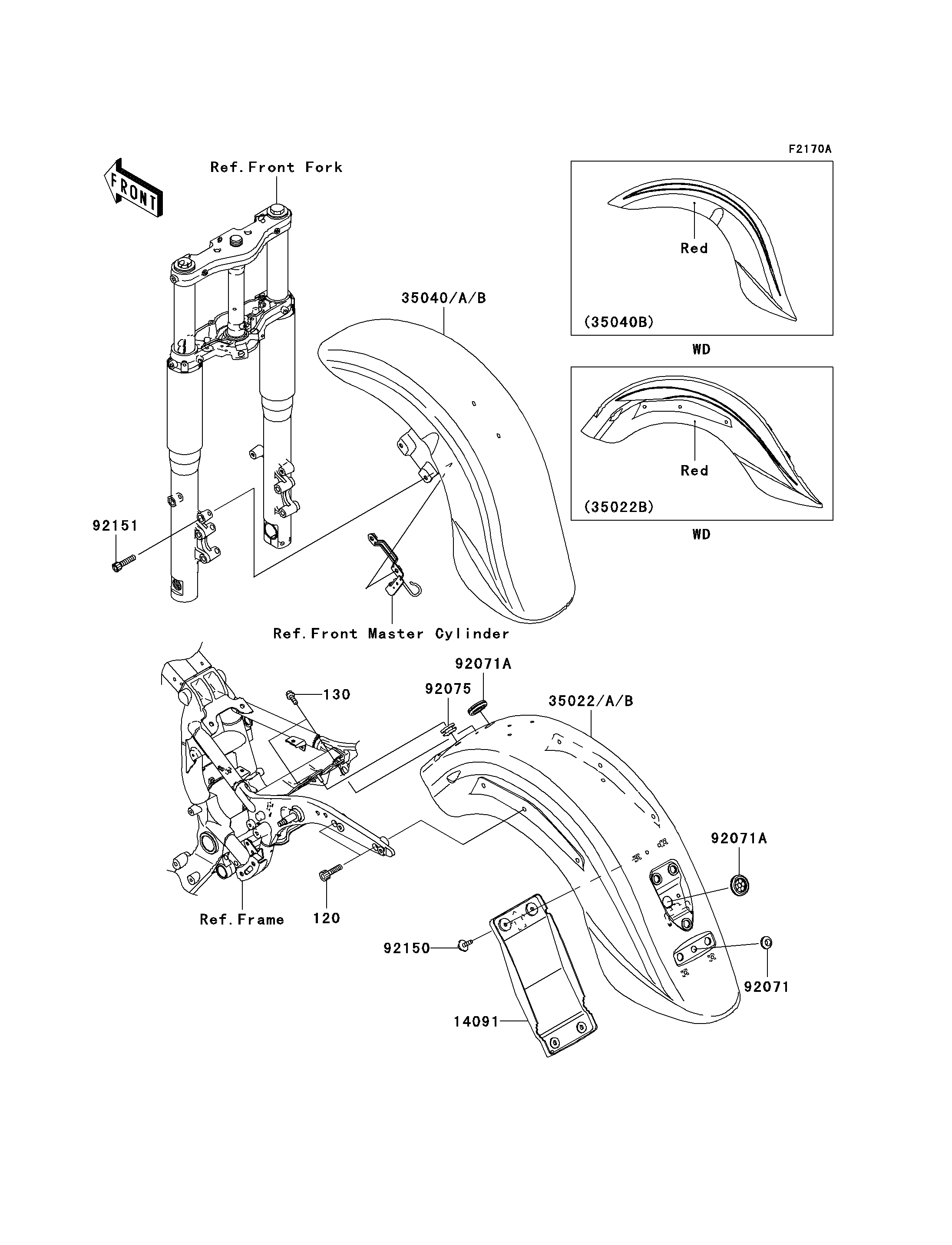

Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

120
130
14091
35022
35022A
35022B
35040
35040A
35040B
92071
92071A
92071A
92075
92150
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X30,BLACK 120 120S0830 4
BOLT-FLANGED,8X16,BLACK 130 130J0816 2
COVER,TAIL LAMP 14091 14091-0370 1
FENDER-COMP-REAR,EBONY 35022 35022-0022-H8 1
FENDER-COMP-REAR,P.B.BEIGE 35022A 35022-0022-X8 1
FENDER-COMP-REAR,M.M.RED 35022B 35022-5160-665 1
FENDER-COMP-FRONT,EBONY 35040 35040-0002-H8 1
FENDER-COMP-FRONT,P.B.BEIGE 35040A 35040-0002-X8 1
FENDER-COMP-FRONT,M.M.RED 35040B 35040-5004-665 1
GROMMET,10MM 92071 92071-019 1
GROMMET 92071A 92071-1265 2
DAMPER 92075 92075-1067 1
BOLT,FLANGED,6X14 92150 92150-1689 4
BOLT,SOCKET,8X35 92151 92151-1535 4
