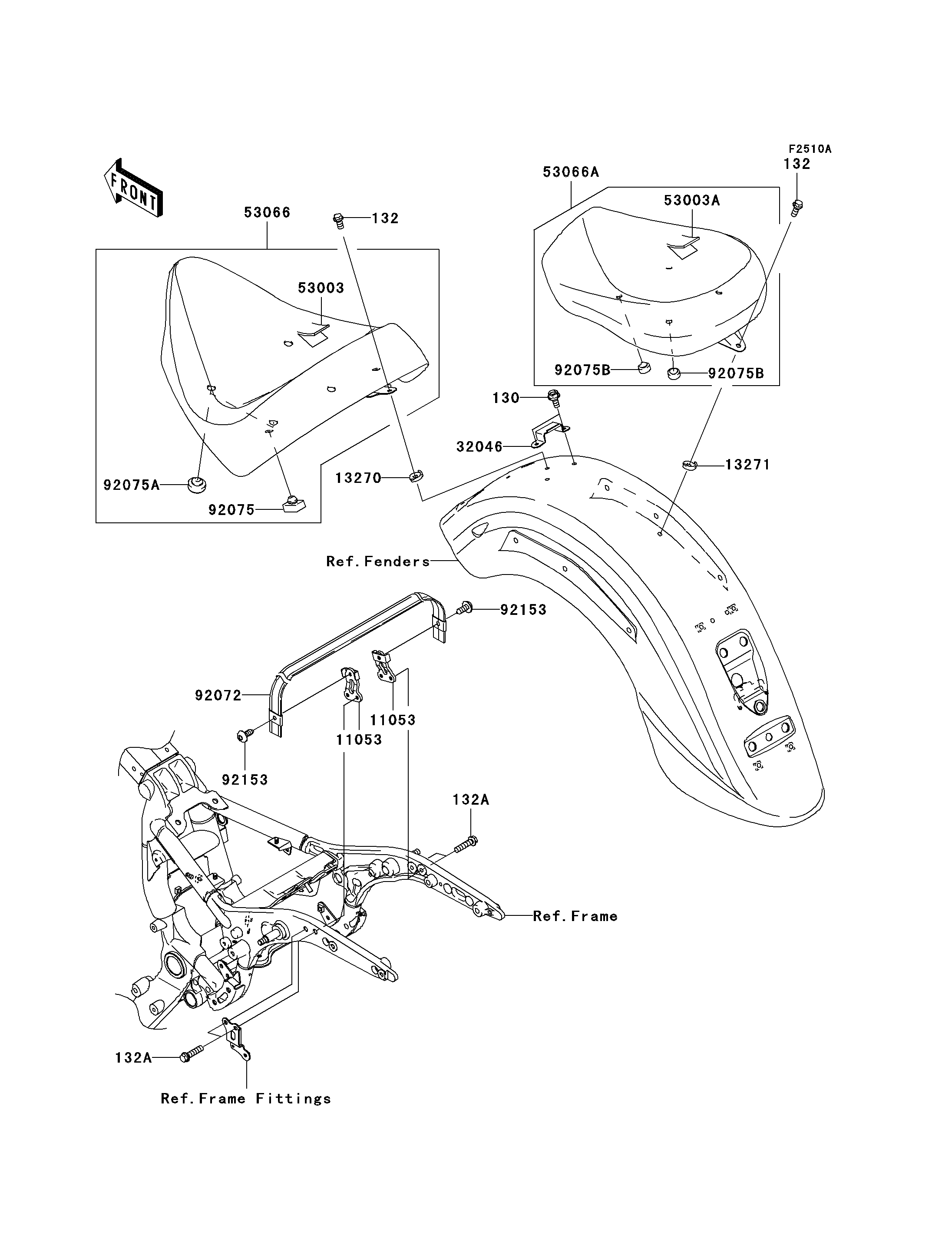

2005 Vulcan 1600 Classic - Seat(JKBVNKA1 5A014811-)

DOWNLOAD PDF
SELECT A NEW PART
130
132
132
132A
132A
11053
11053
13270
13271
32046
53003
53003A
53066
53066A
92072
92075
92075A
92075B
92075B
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14,BLACK 130 130J0614 2
BOLT-FLANGED-SMALL,M6X14 132 132J0614 2
BOLT-FLANGED-SMALL,M6X25 132A 132J0625 4
BRACKET,SEAT BAND 11053 11053-0280 2
PLATE,SEAT 13270 13270-1484 1
PLATE,RR SEAT,RR 13271 13271-0558 1
BRACKET-SEAT 32046 32046-1537 1
LEATHER,FRONT SEAT,BLACK 53003 53003-1531-MA 1
LEATHER,REAR SEAT,BLACK 53003A 53003-1532-MA 1
SEAT-ASSY,FR,BLACK 53066 53066-0020-MA 1
SEAT-ASSY,RR,BLACK 53066A 53066-0089-MA 1
BAND,SEAT 92072 92072-0020 1
DAMPER 92075 92075-099 2
DAMPER 92075A 92075-1045 4
DAMPER 92075B 92075-1927 4
BOLT,SOCKET,6X16 92153 92153-0374 2
