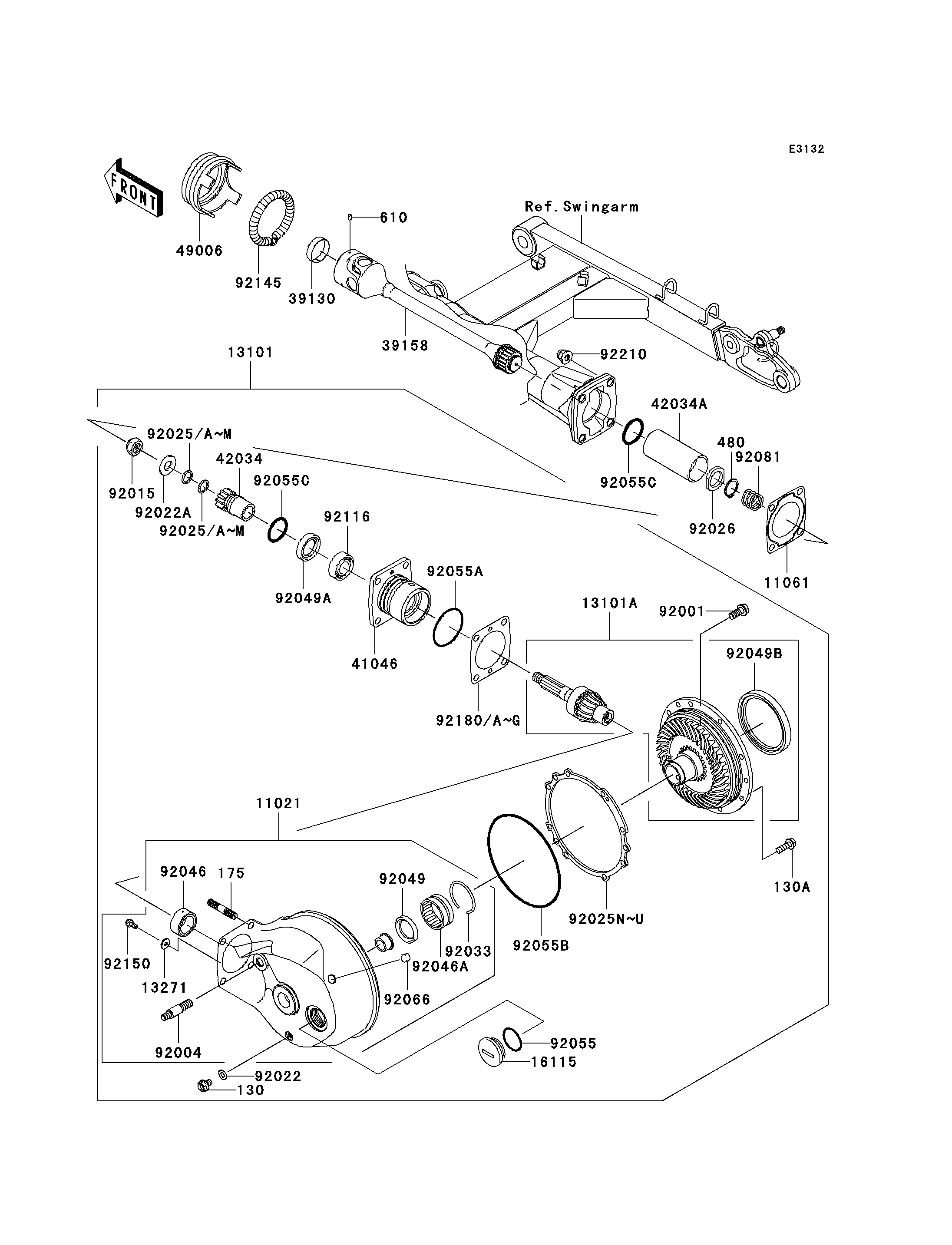

2005 Vulcan 1600 Nomad - Drive Shaft/Final Gear

DOWNLOAD PDF
SELECT A NEW PART
11021
11021
11061
11061
13101
13101
13101A
13101A
13271
13271
16115
16115
39130
39130
39158
39158
41046
41046
42034
42034
42034A
42034A
49006
49006
92001
92001
92004
92004
92015
92015
92022
92022
92022A
92022A
92025
92025
92025
92025
92025A
92025A
92025A
92025A
92025B
92025B
92025B
92025B
92025C
92025C
92025C
92025C
92025D
92025D
92025D
92025D
92025E
92025E
92025E
92025E
92025F
92025F
92025F
92025F
92025G
92025G
92025G
92025G
92025H
92025H
92025H
92025H
92025I
92025I
92025I
92025I
92025J
92025J
92025J
92025J
92025K
92025K
92025K
92025K
92025L
92025L
92025L
92025L
92025M
92025M
92025M
92025M
92025N
92025N
92025O
92025O
92025P
92025P
92025Q
92025Q
92025R
92025R
92025S
92025S
92025T
92025T
92025U
92025U
92026
92026
130
130
130A
130A
175
175
480
480
610
610
92033
92033
92046
92046
92046A
92046A
92049
92049
92049A
92049A
92049B
92049B
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055C
92055C
92066
92066
92081
92081
92116
92116
92145
92145
92150
92150
92180
92180
92180A
92180A
92180B
92180B
92180C
92180C
92180D
92180D
92180E
92180E
92180F
92180F
92180G
92180G
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-ASSY,FINAL GEAR 11021 11021-0006 1
GASKET,RR,SWINGARM 11061 11061-1088 1
GEAR-ASSY,FINAL 13101 13101-0036 1
GEAR-ASSY,BEVEL,RR 13101A 13101-5086 1
PLATE 13271 13271-1733 1
CAP-OIL FILLER 16115 16115-1070 1
SPRING-LEAF 39130 39130-1002 1
SHAFT-ASSY-DRIVE,RR,SWINGARM 39158 39158-1112 1
HOUSING-BEARING 41046 41046-1103 1
COUPLING 42034 42034-1079 1
COUPLING,DRIVE SHAFT,OUTER 42034A 42034-1178 1
BOOT,DRIVE SHAFT 49006 49006-1226 1
BOLT,10X23 92001 92001-1778 1
STUD,RR SHOCKABSORBER 92004 92004-1047 1
NUT,16MM 92015 92015-1059 1
WASHER,8.2X16X1 92022 92022-1086 1
WASHER,16X32X3.2 92022A 92022-1105 1
SHIM,T=1.30 92025 92025-1214 AR
SHIM,T=1.32 92025A 92025-1215 AR
SHIM,T=1.34 92025B 92025-1216 AR
SHIM,T=1.36 92025C 92025-1217 AR
SHIM,T=1.38 92025D 92025-1218 AR
SHIM,T=0.10 92025E 92025-1219 AR
SHIM,T=0.20 92025F 92025-1220 AR
SHIM,T=0.30 92025G 92025-1221 AR
SHIM,T=0.50 92025H 92025-1222 AR
SHIM,T=0.60 92025I 92025-1223 AR
SHIM,T=0.70 92025J 92025-1224 AR
SHIM,T=0.80 92025K 92025-1225 AR
SHIM,T=0.90 92025L 92025-1226 AR
SHIM,T=1.00 92025M 92025-1227 AR
SHIM,T=0.15 92025N 92025-1783 AR
SHIM,T=0.50 92025O 92025-1784 AR
SHIM,T=0.60 92025P 92025-1785 AR
SHIM,T=0.70 92025Q 92025-1786 AR
SHIM,T=0.80 92025R 92025-1787 AR
SHIM,T=0.90 92025S 92025-1788 AR
SHIM,T=1.00 92025T 92025-1789 AR
SHIM,T=1.20 92025U 92025-1790 AR
SPACER,26.2X36X2 92026 92026-1085 1
BOLT-FLANGED 130 130L0812 1
BOLT-FLANGED 130A 130Y0825 7
BOLT-STUD-FINE,10X35 175 175G1035 4
CIRCLIP-TYPE-C,26MM 480 480J2600 1
ROLLER,4X6 610 610A0406 1
RING-SNAP,52MM 92033 92033-1074 1
BEARING-NEEDLE,RNA4904RD 92046 92046-1168 1
BEARING-NEEDLE,38NQ5020WD 92046A 92046-1169 1
SEAL-OIL,S-35477HS 92049 92049-1025 1
SEAL-OIL,SC32487 92049A 92049-1033 1
SEAL-OIL,MHSA83X100X9XRT 92049B 92049-1280 1
RING-O,31.7X2.4 92055 92055-049 1
RING-O,57.6X2.4 92055A 92055-1038 1
RING-O,154X3 92055B 92055-1165 1
RING-O,32.7X3.5 92055C 92055-1646 2
PLUG 92066 92066-1110 1
SPRING 92081 92081-1183 1
BEARING-ROLLER,4T32005X 92116 92116-1004 1
SPRING,BOOT 92145 92145-1162 1
BOLT,5X10 92150 92150-1806 1
SHIM,T=0.15 92180 92180-0009 AR
SHIM,T=0.50 92180A 92180-0010 AR
SHIM,T=0.60 92180B 92180-0011 AR
SHIM,T=0.70 92180C 92180-0012 AR
SHIM,T=0.80 92180D 92180-0013 AR
SHIM,T=0.90 92180E 92180-0014 AR
SHIM,T=1.00 92180F 92180-0015 AR
SHIM,T=1.20 92180G 92180-0016 AR
NUT,CAP,10MM 92210 92210-1121 4
