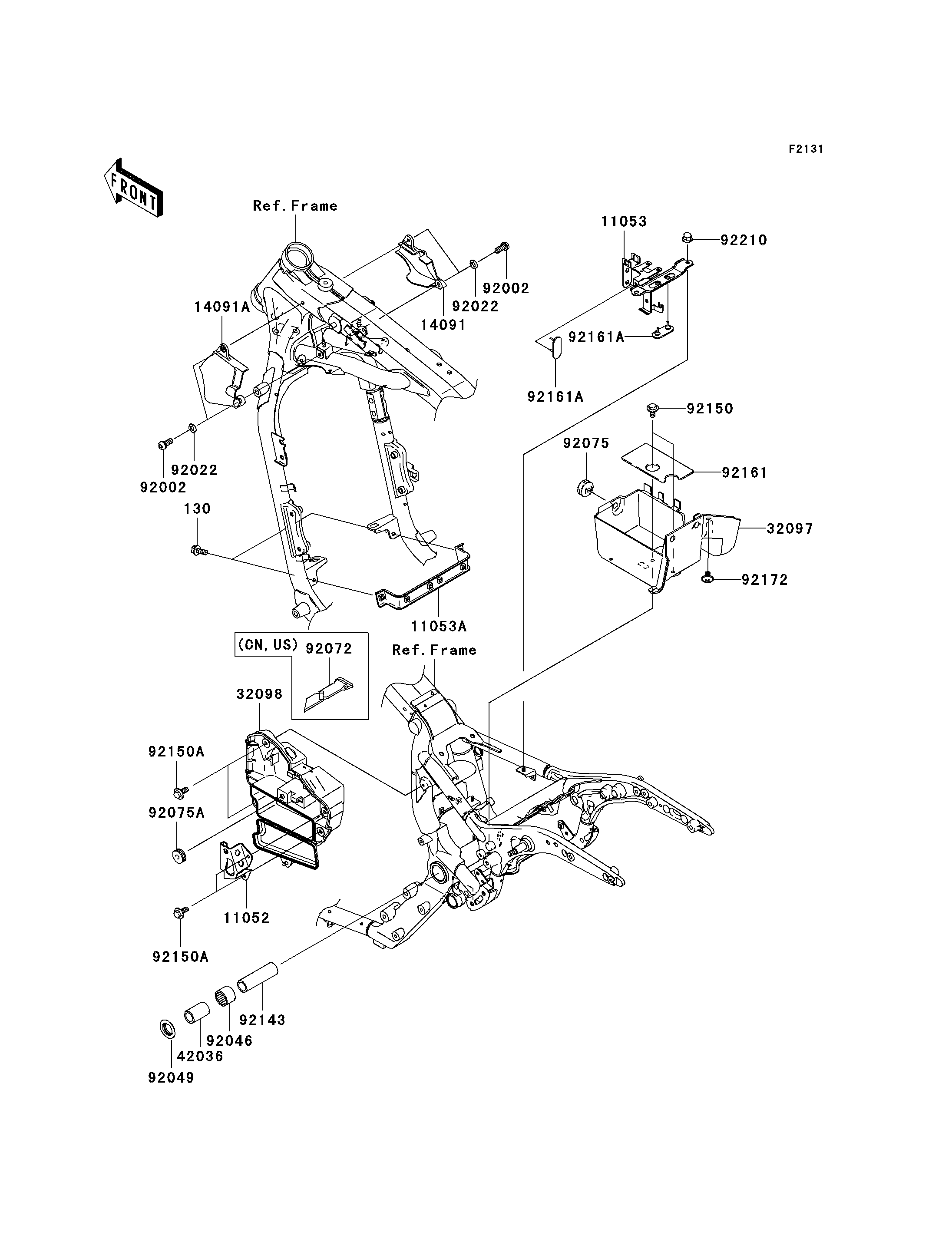

2005 Vulcan 1600 Nomad - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
11052
11053
11053A
14091
14091A
32097
32098
42036
92002
92002
92022
92022
92046
92049
92075
92075A
92143
92150
92150A
92150A
92161
92161A
92161A
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16,BLACK 130 130J0616 2
BRACKET,SIDE COVER LOCK 11052 11052-1234 1
BRACKET,BATTERY BAND 11053 11053-0289 1
BRACKET,REGULATOR 11053A 11053-0434 1
COVER,HEAD PIPE,RH 14091 14091-0054 1
COVER,HEAD PIPE,LH 14091A 14091-0092 1
CASE-BATTERY 32097 32097-1192 1
CASE-TOOL 32098 32098-1137 1
SLEEVE,L=45 42036 42036-1330 2
BOLT,6X14 92002 92002-1700 4
WASHER,6.2X11X1.5 92022 92022-183 4
BEARING-NEEDLE,BM2824 92046 92046-1202 2
SEAL-OIL 92049 92049-1181 2
DAMPER 92075 92075-1067 1
DAMPER 92075A 92075-1629 1
COLLAR,20.2X27X90 92143 92143-1878 1
BOLT,6X14 92150 92150-1133 2
BOLT,6X16 92150A 92150-1198 4
DAMPER,BATTERY 92161 92161-1097 1
DAMPER,BATTERY BAND 92161A 92161-1214 2
SCREW,6X10 92172 92172-0005 2
NUT,CAP,6MM 92210 92210-0003 2
BAND,L=470 92072 92072-1331 1 CNUS
