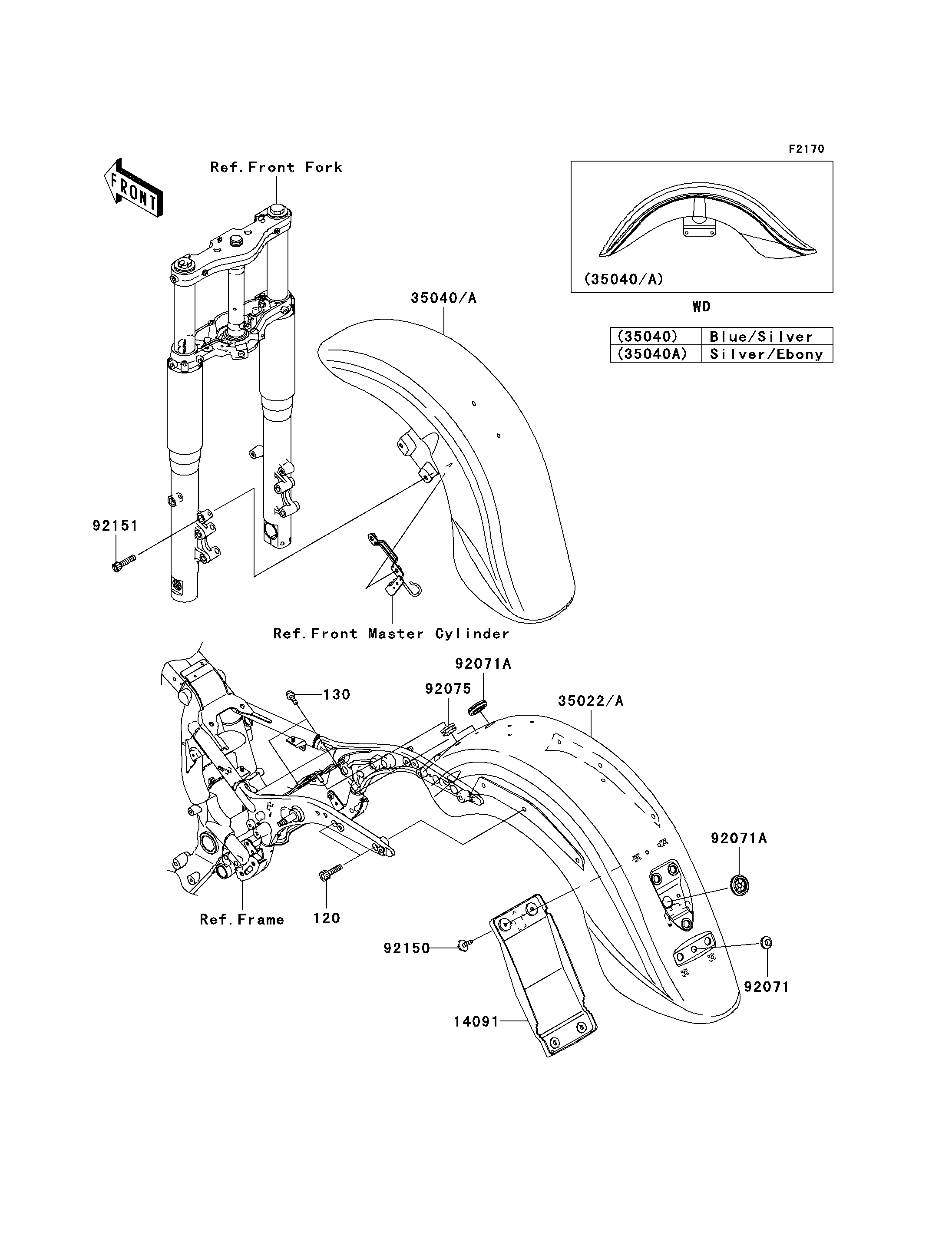

120
130
14091
35022
35022A
35040
35040A
92071
92071A
92071A
92075
92150
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X30,BLACK 120 120S0830 4
BOLT-FLANGED,8X16,BLACK 130 130J0816 2
COVER,TAIL LAMP 14091 14091-0370 1
FENDER-COMP-REAR,EBONY 35022 35022-0024-H8 1
FENDER-COMP-REAR,M.O.BLUE 35022A 35022-0024-726 1
FENDER-COMP-FRONT,BLUE/SILVER 35040 35040-5002-728 1
FENDER-COMP-FRONT,SILVER/EBONY 35040A 35040-5003-686 1
GROMMET,10MM 92071 92071-019 1
GROMMET 92071A 92071-1265 2
DAMPER 92075 92075-1067 1
BOLT,FLANGED,6X14 92150 92150-1689 4
BOLT,SOCKET,8X35 92151 92151-1535 4
