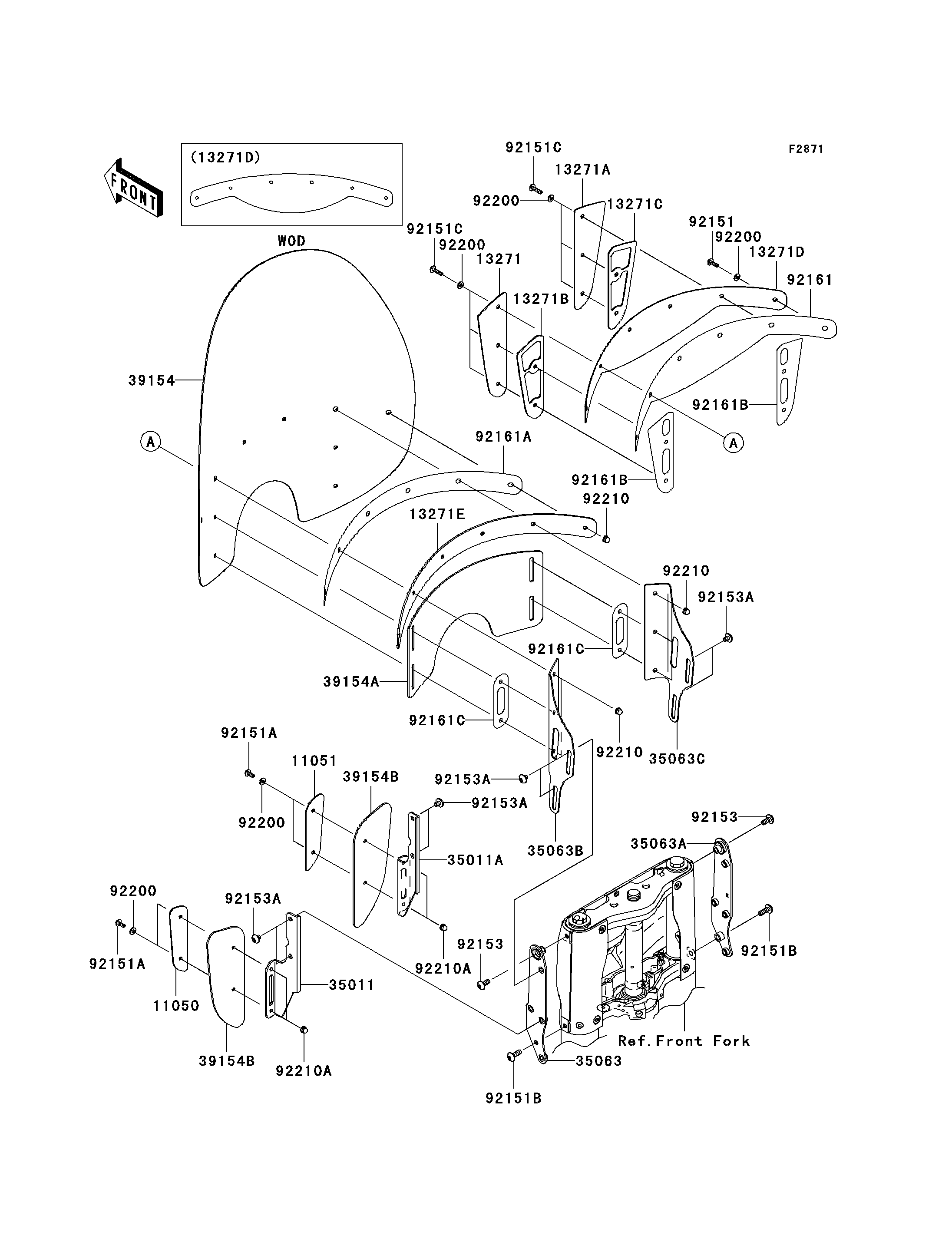

2005 Vulcan 1600 Nomad - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11050
11051
13271
13271A
13271B
13271C
13271D
13271E
35011
35011A
35063
35063A
35063B
35063C
39154
39154A
39154B
39154B
92151
92151A
92151A
92151B
92151B
92151C
92151C
92153
92153
92153A
92153A
92153A
92153A
92161
92161A
92161B
92161B
92161C
92161C
92200
92200
92200
92200
92200
92210
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,DEFLECTOR,LH 11050 11050-1750 1
BRACKET,DEFRECTOR,RH 11051 11051-1061 1
PLATE,WINDSHIELD,LH,OUTER 13271 13271-0570 1
PLATE,WINDSHIELD,RH,OUTER 13271A 13271-0571 1
PLATE,WINDSHIELD,LH,INNER 13271B 13271-0572 1
PLATE,WINDSHIELD,RH,INNER 13271C 13271-0573 1
PLATE,WINDSHIELD,CNT,OUTER 13271D 13271-1089 1
PLATE,WINDSHIELD,CNT,INNER 13271E 13271-1090 1
STAY,DEFLECTOR,LH 35011 35011-1916 1
STAY,DEFLECTOR,RH 35011A 35011-1917 1
STAY,MAIN,LH 35063 35063-0209 1
STAY,MAIN,RH 35063A 35063-0210 1
STAY,WINDSHIELD,LH 35063B 35063-0213 1
STAY,WINDSHIELD,RH 35063C 35063-0214 1
WINDSHIELD,MAIN 39154 39154-0012 1
WINDSHIELD,SUB 39154A 39154-0013 1
WINDSHIELD,DEFLECTOR 39154B 39154-1139 2
BOLT,SOCKET,6X20 92151 92151-1750 4
BOLT,SOCKET,6X16 92151A 92151-1751 4
BOLT,SOCKET,8X25 92151B 92151-1753 2
BOLT,SOCKET,6X25 92151C 92151-1945 6
BOLT,SOCKET,8X20 92153 92153-0912 2
BOLT,SOCKET,8X10 92153A 92153-1278 8
DAMPER,WINDSHIELD,OUTER,CNT 92161 92161-0268 1
DAMPER,WINDSHIELD,INNER,CNT 92161A 92161-0269 1
DAMPER,WINDSHIELD,OUTER,LH&RH 92161B 92161-0270 2
DAMPER,WINDSHIELD,INNER,LH&RH 92161C 92161-0271 2
WASHER,6.5X14.5X1.5 92200 92200-3775 14
NUT,CAP,6MM 92210 92210-0220 10
NUT,CAP,6MM 92210A 92210-1129 4
