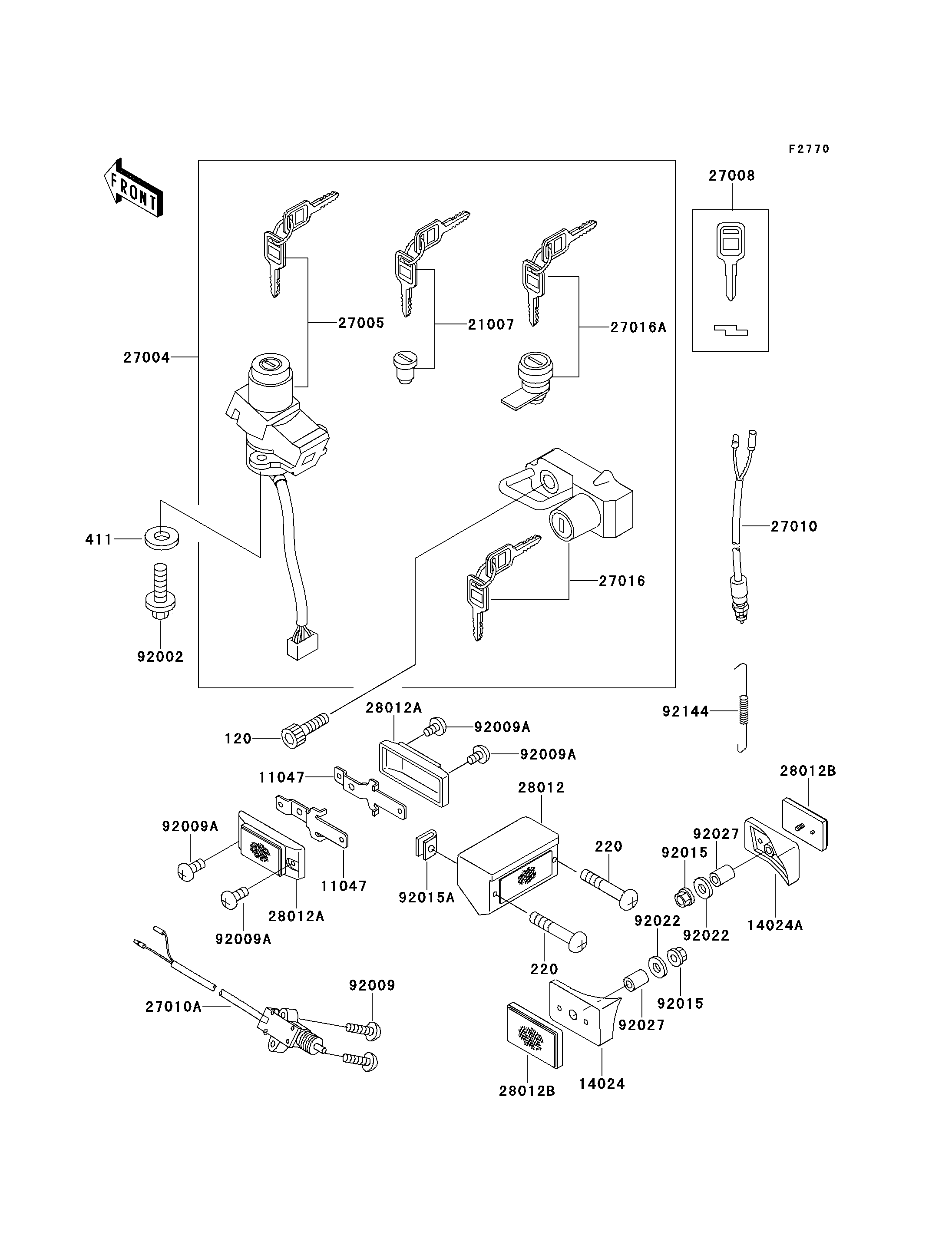

1990 Ninja® ZX™-6 - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
120
220
220
411
11047
11047
14024
14024A
21007
27004
27005
27008
27010
27010A
27016
27016A
28012
28012A
28012A
28012B
28012B
92002
92009
92009A
92009A
92009A
92009A
92015
92015
92015A
92022
92022
92027
92027
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X16,BLACK 120 120S0616 1
SCREW-PAN-CROS,5X55 220 220C0555 2
WASHER-PLAIN,6MM 411 411E0600 2
BRACKET,FR REFLECTOR 11047 11046-1945 2
COVER,REFLECTOR,LH 14024 14024-1940 1
COVER,REFLECTOR,RH 14024A 14024-1941 1
ROTOR,LOCK,TANK CAP 21007 21007-5027 1
SWITCH-ASSY 27004 27004-5386 1
SWITCH-ASSY-IGNITION 27005 27005-5081 1
KEY-LOCK,BLANK 27008 27008-1103 1 (OPTION)
SWITCH,BRAKE LAMP 27010 27010-1093 1
SWITCH,SIDE STAND 27010A 27010-1226 1
LOCK-ASSY,HELMET 27016 27016-5163 1
LOCK-ASSY,TOOL BOX 27016A 27016-5164 1
REFLECTOR-REFLEX,RR 28012 28012-1069 1
REFLECTOR-REFLEX,FR 28012A 28012-1070 2
REFLECTOR-REFLEX,RR 28012B 28012-1072 2
BOLT,TORX,6X16 92002 92002-1333 2
SCREW,5X22 92009 92009-1492 2
SCREW,5X8 92009A 92009-1548 4
NUT,FLANGED,5MM 92015 92015-1259 2
NUT,5MM 92015A 92015-1798 2
WASHER,5.2X16X1.2 92022 92022-263 2
COLLAR,5X8X14.5 92027 92027-1789 2
SPRING,REAR BRAKE SWITCH 92144 92144-1283 1
