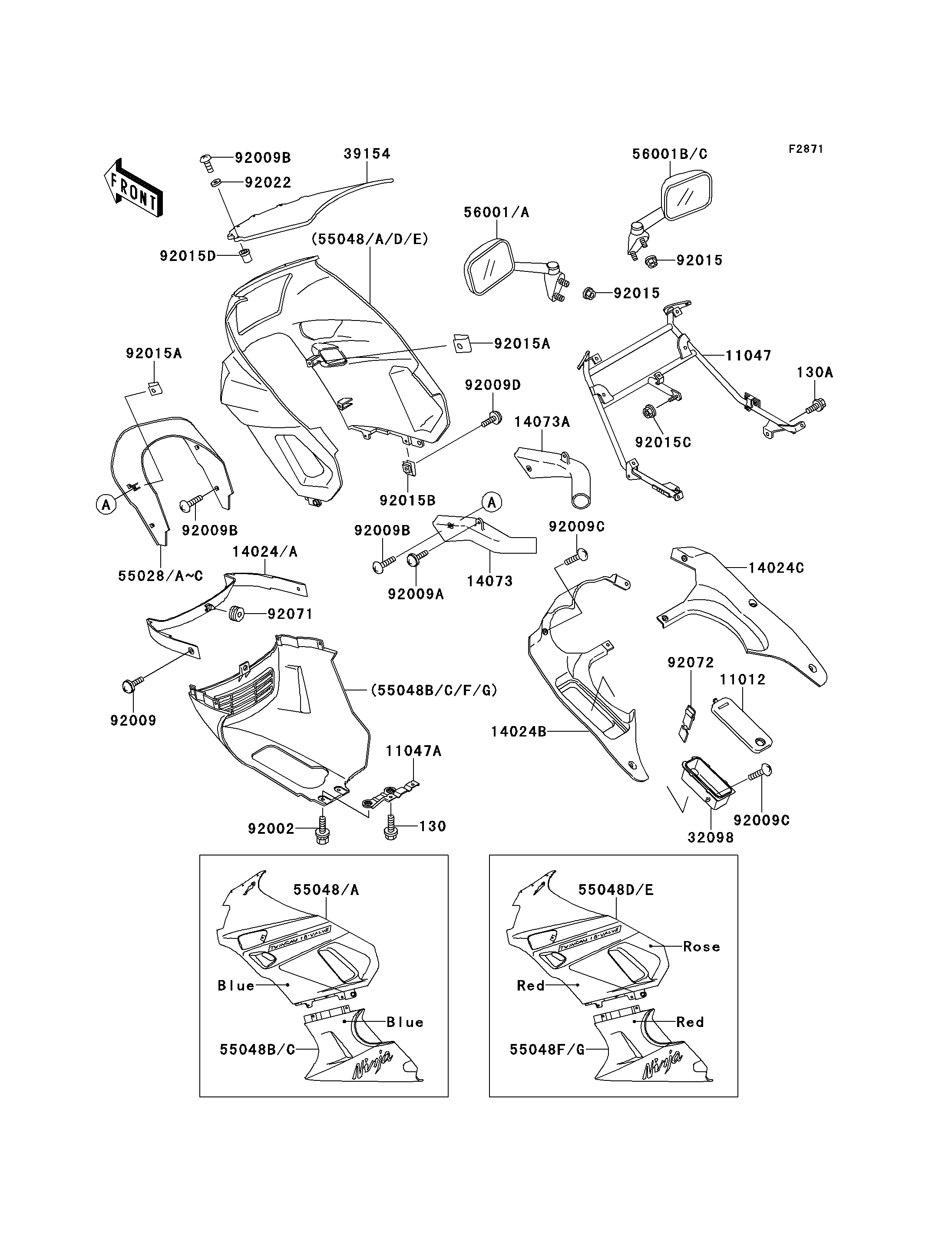

1990 Ninja® ZX™-6 - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11047
11047
11047A
11047A
14024B
14024B
14024C
14024C
14073
14073
14073A
14073A
32098
32098
39154
39154
56001
56001
130
130
130A
130A
56001A
56001A
56001B
56001B
56001C
56001C
92002
92002
92009
92009
92009A
92009A
92009B
92009B
92009B
92009B
92009B
92009B
92009C
92009C
92009C
92009C
92009D
92009D
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92015C
92015C
92015D
92015D
92022
92022
92071
92071
92072
92072
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,INNER COWLING,LH 11012 11012-1735 1
BRACKET,COWLING 11047 11046-1962 1
BRACKET,LWR COWLING 11047A 11047-1091 1
COVER,INNER COWLING,LH 14024B 14024-1901 1
COVER,INNER COWLING,RH 14024C 14024-1902 1
DUCT,AIR INTAKE,LH 14073 14073-1426 1
DUCT,AIR INTAKE,RH 14073A 14073-1427 1
CASE-TOOL 32098 32098-1093 1
WINDSHIELD 39154 39154-1109 1
MIRROR-ASSY,LH,C.A.BLUE 56001 56001-1392-FC 1
BOLT-FLANGED 130 130J0612 2
BOLT-FLANGED 130A 130J0812 2
MIRROR-ASSY,LH,C.C.RED 56001A 56001-1392-L1 1
MIRROR-ASSY,RH,C.A.BLUE 56001B 56001-1393-FC 1
MIRROR-ASSY,RH,C.C.RED 56001C 56001-1393-L1 1
BOLT,6X16 92002 92002-1242 2
SCREW,6X14,WHITE 92009 92009-1287 2
SCREW,6X14 92009A 92009-1288 2
SCREW,5X16,BLACK 92009B 92009-1301 12
SCREW,6X14 92009C 92009-1611 7
SCREW,6X16 92009D 92009-1621 4
NUT,FLANGED,6MM 92015 92015-1233 4
NUT,5MM 92015A 92015-1573 6
NUT,6MM 92015B 92015-1602 4
NUT,FLANGED,LOCK,8MM 92015C 92015-1696 1
NUT,WELL,5MM 92015D 92015-1757 6
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 6
GROMMET 92071 92071-056 1
BAND,L=300 92072 92072-1235 1
COVER,COWLING,CNT,G.GRAY 14024 14024-1877-GD 1 CN
COVER,COWLING,CNT,G.GRAY 14024A 14024-1877-HN 1 CAUS
COWLING,FR,C.A.BLUE 55028 55028-1244-FC 1 CN
COWLING,FR,BLUE 55028A 55028-1244-HL 1 CAUS
COWLING,FR,C.C.RED 55028B 55028-1244-HR 1 CAUS
COWLING,FR,C.C.RED 55028C 55028-1244-L1 1 CN
COWLING.,UPP,BLUE/BLUE 55048 55048-5428-GX 1 CN
COWLING.,UPP,BLUE/BLUE 55048A 55048-5428-HK 1 CAUS
COWLING.,LWR,BLUE/BLUE 55048B 55048-5429-GX 1 CN
COWLING.,LWR,BLUE/BLUE 55048C 55048-5429-HK 1 CAUS
COWLING.,UPP,RED/ROSE OPERA 55048D 55048-5430-HF 1 CN
COWLING.,UPP,RED/ROSE OPERA 55048E 55048-5430-HP 1 CAUS
COWLING.,LWR,RED/ROSE OPERA 55048F 55048-5431-HF 1 CN
COWLING.,LWR,RED/ROSE OPERA 55048G 55048-5431-HP 1 CAUS
