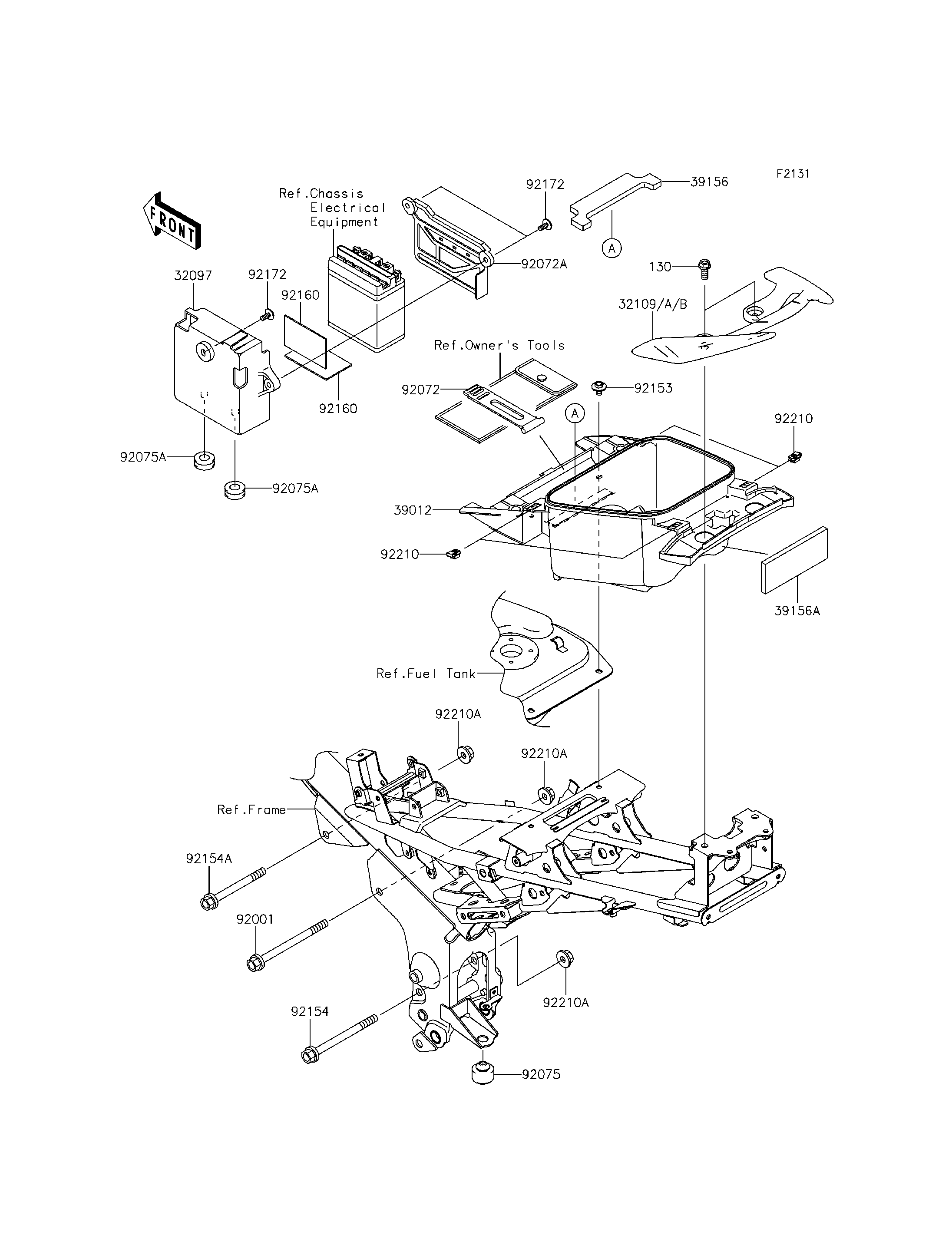

2013 KAZE HIT - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
32097
32109
32109A
32109B
39012
39156
39156A
92001
92072
92072A
92075
92075A
92075A
92153
92154
92154A
92160
92160
92172
92172
92210
92210
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X20 130 130BA0820 2
CASE-BATTERY 32097 32097-1169 1
GRIP-FRAME,P.RED 32109 32109-0026-21F 1
GRIP-FRAME,M.SILVER 32109A 32109-0026-34G 1
GRIP-FRAME,L.GREEN 32109B 32109-0026-777 1
CASE-STORAGE 39012 39012-0029 1
PAD 39156 39156-0601 1
PAD,AIR CLEANER 39156A 39156-1696 1
BOLT,FLANGED,10X130 92001 92001-1604 1
BAND,TOOL 92072 92072-0056 1
BAND,BATTERY 92072A 92072-1345 1
DAMPER 92075 92075-015 1
DAMPER 92075A 92075-051 2
BOLT,6X14 92153 92153-0819 2
BOLT,FLANGED,10X120 92154 92154-0408 1
BOLT,FLANGED,10X100 92154A 92154-0754 1
DAMPER,BATTERY 92160 92160-1292 2
SCREW,6X14 92172 92172-0055 3
NUT,PLATE,5MM 92210 92210-0262 4
NUT 92210A 92210-0607 3
