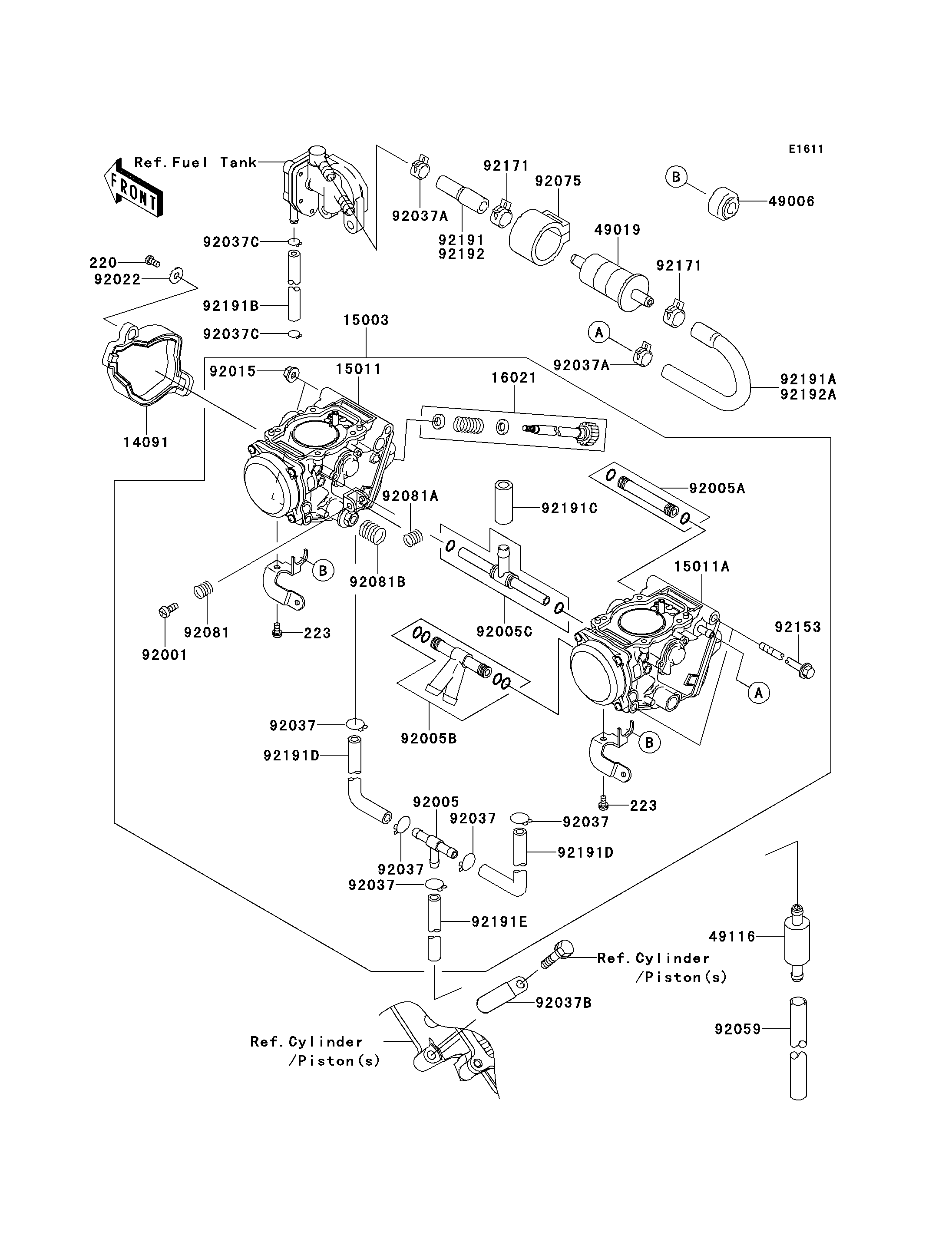

2008 KFX®700 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
220
223
223
14091
15003
15011
15011A
16021
49006
49019
49116
92001
92005
92005A
92005B
92005C
92015
92022
92037
92037
92037
92037
92037
92037A
92037A
92037B
92037C
92037C
92059
92075
92081
92081A
92081B
92153
92171
92171
92191B
92191C
92191D
92191D
92191E
92192
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROSS,4X8 220 220AA0408 1
SCREW-PAN-WS-CROS,4X8 223 223AA0408 2
COVER,THROTTLE CABLE 14091 14091-1196 1
CARBURETOR-ASSY 15003 15003-0094 1
CARBURETOR,FR 15011 15011-0015 1
CARBURETOR,RR 15011A 15011-0016 1
SCREW-THROTTLE STOP 16021 16021-1223 1
BOOT,STARTER CABLE 49006 49006-1353 2
FILTER-FUEL 49019 49019-1055 1
VALVE-ASSY 49116 49116-1126 1
BOLT,THROTTLE ADJUST 92001 92001-1998 1
FITTING,FUEL,T-TYPE 92005 92005-1112 1
FITTING 92005A 92005-1375 1
FITTING 92005B 92005-1376 1
FITTING 92005C 92005-1385 1
NUT,FLANGED,5MM 92015 92015-1259 2
WASHER,5.2X13X1 92022 92022-1380 1
CLAMP,TUBE 92037 92037-1201 5
CLAMP,TUBE 92037A 92037-1505 2
CLAMP,L=45 92037B 92037-1539 1
CLAMP 92037C 92037-1610 2
TUBE,7X10X100 92059 92059-1736 1
DAMPER,FUEL FILTER 92075 92075-1853 1
SPRING 92081 92081-1620 1
SPRING,THROTTLE ADJUST LWR 92081A 92081-1621 1
SPRING,THROTTLE ADJUST CNT 92081B 92081-1622 1
BOLT,5X143 92153 92153-1068 2
CLAMP 92171 92171-0515 2
TUBE,4X9X130 92191B 92191-1251 1
TUBE,7X11X25 92191C 92191-1672 1
TUBE,4.5X8X65 92191D 92191-1673 2
TUBE,4.5X8X420 92191E 92191-1674 1
TUBE,TAP-FILTER 92192 92192-0499 1
TUBE,FILTER-CARB. 92192A 92192-0500 1
