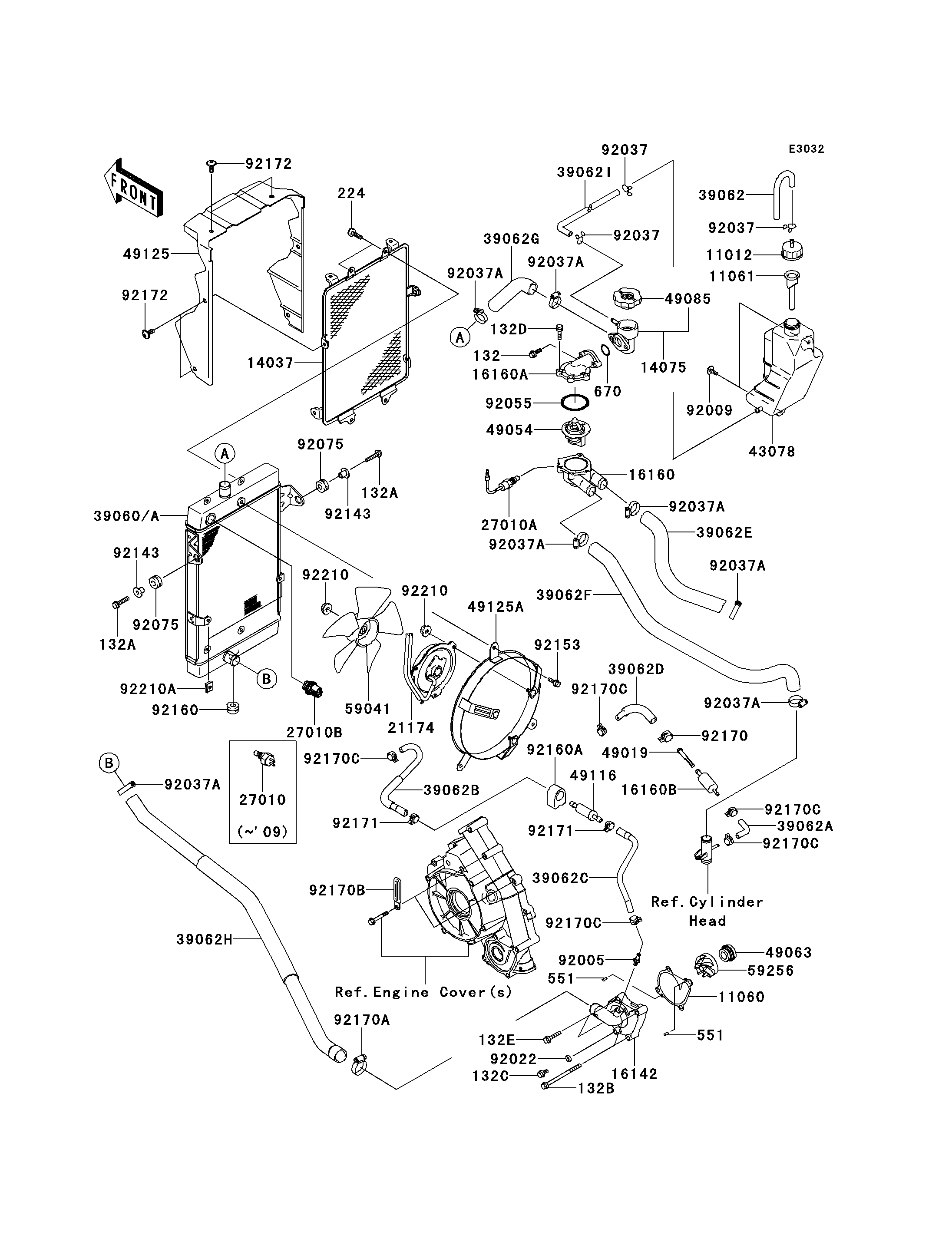

2008 KFX®700 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11060
11060
11061
11061
14037
14037
14075
14075
16142
16142
16160
16160
16160A
16160A
16160B
16160B
21174
21174
27010
27010
27010A
27010A
39060
39060
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062F
39062F
39062G
39062G
39062H
39062H
39062I
39062I
43078
43078
49019
49019
49054
49054
49063
49063
49085
49085
49116
49116
49125
49125
49125A
49125A
59041
59041
59256
59256
92005
92005
92009
92009
92022
92022
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
132
132
132A
132A
132A
132A
132B
132B
132C
132C
132D
132D
132E
132E
224
224
551
551
551
551
670
670
92055
92055
92075
92075
92075
92075
92143
92143
92143
92143
92153
92153
92160
92160
92160A
92160A
92170
92170
92170A
92170A
92170B
92170B
92170C
92170C
92170C
92170C
92170C
92170C
92170C
92170C
92170C
92170C
92171
92171
92171
92171
92172
92172
92172
92172
92210
92210
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1854 1
GASKET,WATER PUMP 11060 11060-1964 1
GASKET 11061 11061-0043 1
SCREEN 14037 14037-0017 1
CAP-ASSY,PRESSURE 14075 14075-1115 1
COVER-PUMP,WATER 16142 16142-0002 1
BODY,THERMOSTAT,LWR 16160 16160-1112 1
BODY,THERMOSTAT,UPP 16160A 16160-1113 1
BODY 16160B 16160-1359 1
MOTOR-ELECTRIC 21174 21174-0001 1
SWITCH,FAN 27010 27010-1202 1
SWITCH,SENSOR WATER 27010A 27010-1346 1
RADIATOR 39060 39060-0006 1
HOSE-COOLING,BREATHER 39062 39062-0002 1
HOSE-COOLING,HEAD-FILTER 39062A 39062-1816 1
HOSE-COOLING,CARB-VALVE 39062B 39062-1817 1
HOSE-COOLING,VALVE-WATER PUMP 39062C 39062-1818 1
HOSE-COOLING,FILTER-CARB 39062D 39062-1858 1
HOSE-COOLING,FR HEAD-THERMO 39062E 39062-1920 1
HOSE-COOLING,RR HEAD-THERMO 39062F 39062-1921 1
HOSE-COOLING,THERMO-RADIATOR 39062G 39062-1922 1
HOSE-COOLING,RAD-WATER PUMP 39062H 39062-1923 1
HOSE-COOLING,RESERVOIR-THERMO 39062I 39062-1924 1
RESERVOIR,TANK 43078 43078-0004 1
FILTER-WATER 49019 49019-1068 1
THERMOSTAT 49054 49054-1055 1
SEAL-MECHANICAL,WATER 49063 49063-1055 1
CAP-ASSY-PRESSURE 49085 49085-1067 1
VALVE-ASSY 49116 49116-1190 1
SHROUD 49125 49125-0003 1
SHROUD 49125A 49125-0007 1
FAN 59041 59041-0001 1
IMPELLER 59256 59256-1069 1
FITTING,BLEED PIPE 92005 92005-1337 1
SCREW,6X16 92009 92009-1621 2
WASHER,6.2X11X1 92022 92022-304 1
CLAMP,TUBE 92037 92037-147 3
CLAMP,COOLING HOSE 92037A 92037-1589 7
BOLT-FLANGED-SMALL,6X16 132 132BA0616 2
BOLT-FLANGED-SMALL,6X25 132A 132BA0625 2
BOLT-FLANGED-SMALL,6X90 132B 132BB0690 2
BOLT-FLANGED-SMALL,6X12 132C 132BD0612 1
BOLT-FLANGED-SMALL,6X20 132D 132BD0620 4
BOLT-FLANGED-SMALL,6X30 132E 132BD0630 2
SCREW-PAN-WP-CROS,6X12 224 224AB0612 4
PIN-DOWEL,4X8 551 551A0408 2
O RING,20MM 670 670B2020 1
RING-O,44.7X2.4 92055 92055-1279 1
DAMPER 92075 92075-209 2
COLLAR 92143 92143-1353 2
BOLT 92153 92153-0456 3
DAMPER 92160 92160-1007 1
DAMPER,VALVE 92160A 92160-1451 1
CLAMP 92170 92170-1491 1
CLAMP 92170A 92170-1497 1
CLAMP 92170B 92170-1514 2
CLAMP 92170C 92170-2042 5
CLAMP 92171 92171-0515 2
SCREW,6X10 92172 92172-0005 6
NUT 92210 92210-0085 4
NUT 92210A 92210-0086 2
