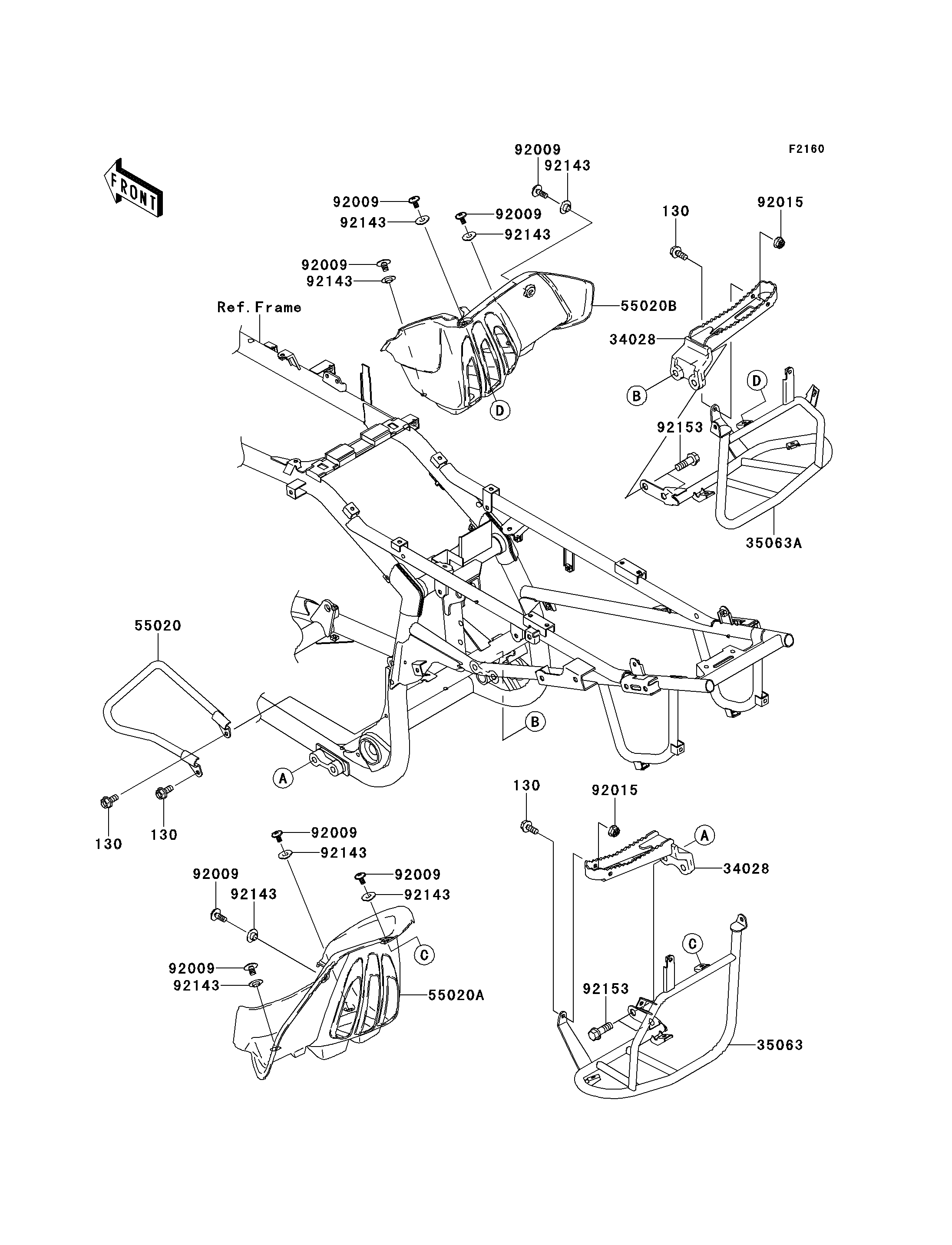

2008 KFX®700 - Footrests

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
34028
34028
35063
35063A
55020
55020A
55020B
92009
92009
92009
92009
92009
92009
92009
92009
92015
92015
92143
92143
92143
92143
92143
92143
92143
92143
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BB0614 4
STEP,G.GRAY 34028 34028-1535-HN 2
STAY,STEP,LH 35063 35063-0027 1
STAY,STEP,RH 35063A 35063-0028 1
GUARD,LEFT STEP 55020 55020-0033 1
GUARD,STEP,LH,F.BLACK 55020A 55020-1799-6Z 1
GUARD,STEP,RH,F.BLACK 55020B 55020-1800-6Z 1
SCREW,6X16 92009 92009-1621 8
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
COLLAR 92143 92143-1087 8
BOLT,FLANGED,10X30 92153 92153-0427 4
