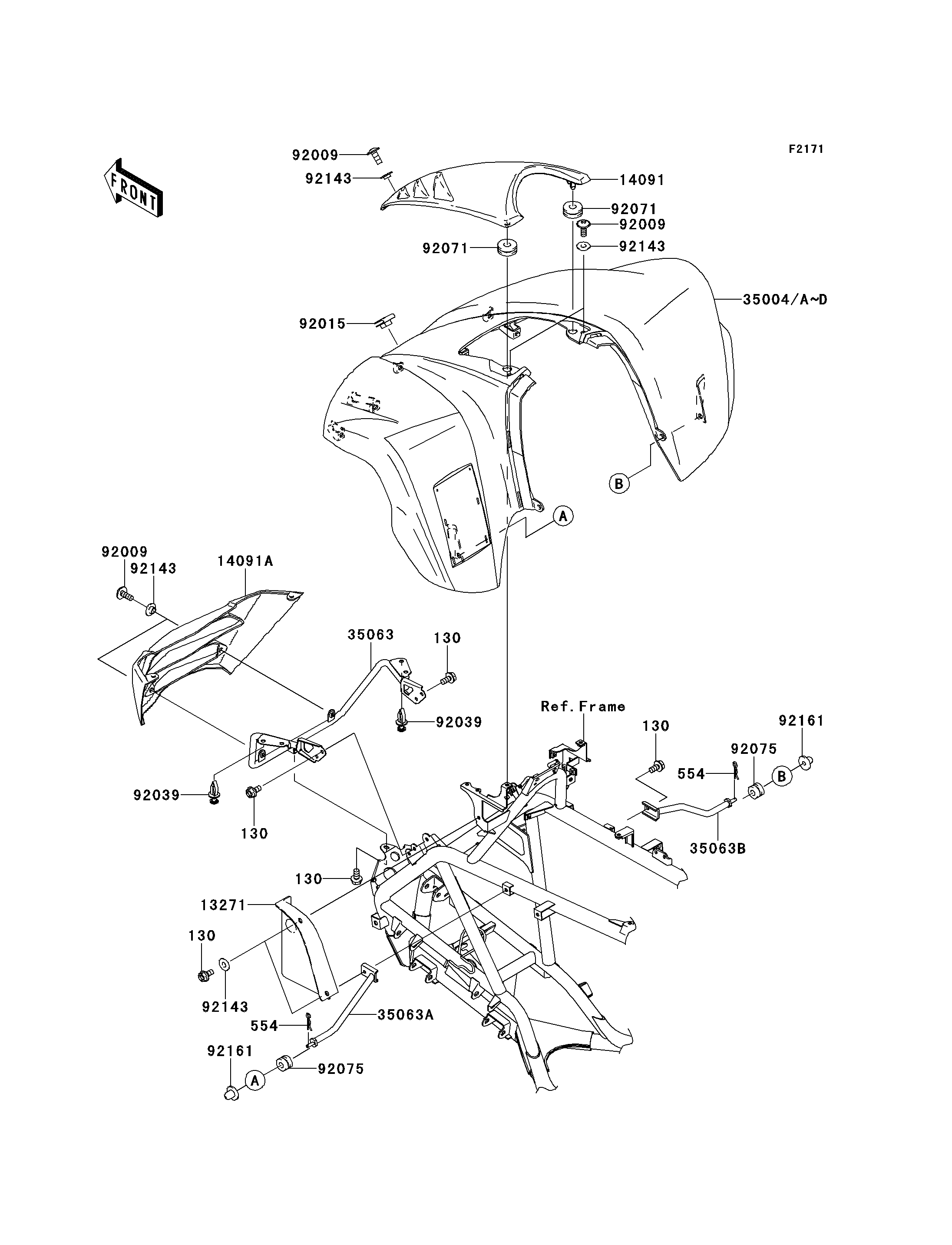

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X12 | 130 | 130BB0612 | 8 | ||
PIN-SNAP | 554 | 554DA0600 | 2 | ||
PLATE,FRONT FENDER | 13271 | 13271-0058 | 1 | ||
COVER,MAINTENANCE,BLACK | 14091 | 14091-1511-6D | 1 | ||
COVER,FRONT GRILL,F.BLACK | 14091A | 14091-1524-6Z | 1 | ||
FENDER-FRONT,BASE WHITE | 35004A | 35004-0027-16K | 1 | ||
STAY,FRONT GRILL | 35063 | 35063-0067 | 1 | ||
STAY,FRONT FENDER,LH | 35063A | 35063-0139 | 1 | ||
STAY,FRONT FENDER,RH | 35063B | 35063-0140 | 1 | ||
SCREW,6X16 | 92009 | 92009-1621 | 5 | ||
NUT,CLAMP,6MM | 92015 | 92015-1678 | 1 | ||
RIVET | 92039 | 92039-1229 | 2 | ||
GROMMET | 92071 | 92071-1131 | 2 | ||
DAMPER | 92075 | 92075-1435 | 2 | ||
COLLAR | 92143 | 92143-1087 | 7 | ||
DAMPER | 92161 | 92161-1160 | 2 |
