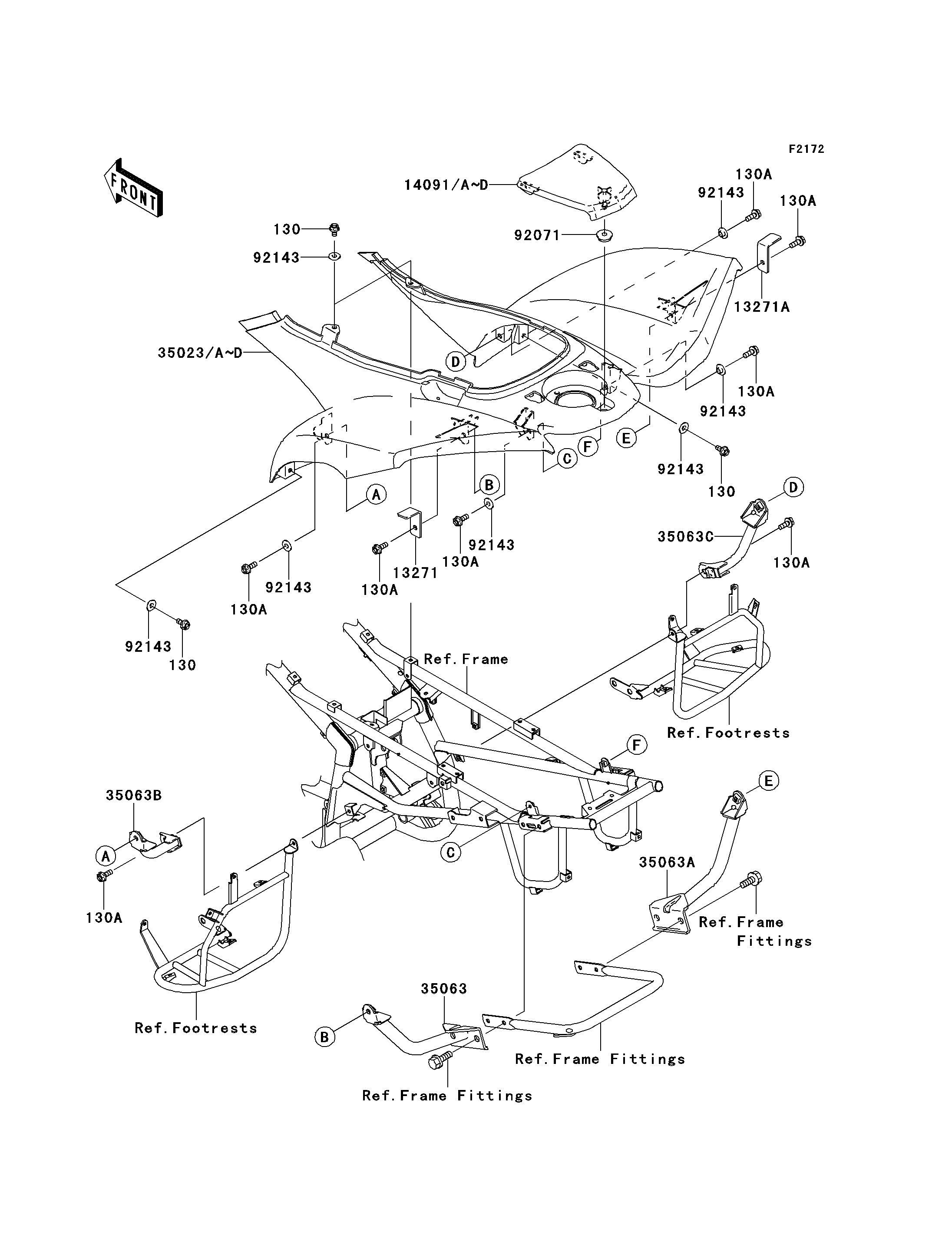

Parts Diagrams |
130
130
130
130A
130A
130A
130A
130A
130A
130A
130A
13271
13271A
14091A
35023A
35063
35063A
35063B
35063C
92071
92143
92143
92143
92143
92143
92143
92143
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X10 | 130 | 130BB0610 | 4 | ||
| BOLT-FLANGED,6X16 | 130A | 130BB0616 | 8 | ||
| PLATE,RR FENDER,LH | 13271 | 13271-0126 | 1 | ||
| PLATE,RR FENDER,RH | 13271A | 13271-0127 | 1 | ||
| COVER,TANK CAP,BASE WHITE | 14091A | 14091-0206-16K | 1 | ||
| FENDER-REAR,BASE WHITE | 35023A | 35023-0028-16K | 1 | ||
| STAY,REAR FENDER,LH | 35063 | 35063-0042 | 1 | ||
| STAY,REAR FENDER,RH | 35063A | 35063-0043 | 1 | ||
| STAY,REAR FENDER,LH | 35063B | 35063-0044 | 1 | ||
| STAY,REAR FENDER,RH | 35063C | 35063-0045 | 1 | ||
| GROMMET | 92071 | 92071-0008 | 1 | ||
| COLLAR | 92143 | 92143-1087 | 8 |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PLATE,RR FENDER,LH | |
| REF # | 13271 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,RR FENDER,RH | |
| REF # | 13271A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TANK CAP,BASE WHITE | |
| REF # | 14091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR,BASE WHITE | |
| REF # | 35023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,REAR FENDER,LH | |
| REF # | 35063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,REAR FENDER,RH | |
| REF # | 35063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,REAR FENDER,LH | |
| REF # | 35063B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,REAR FENDER,RH | |
| REF # | 35063C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
