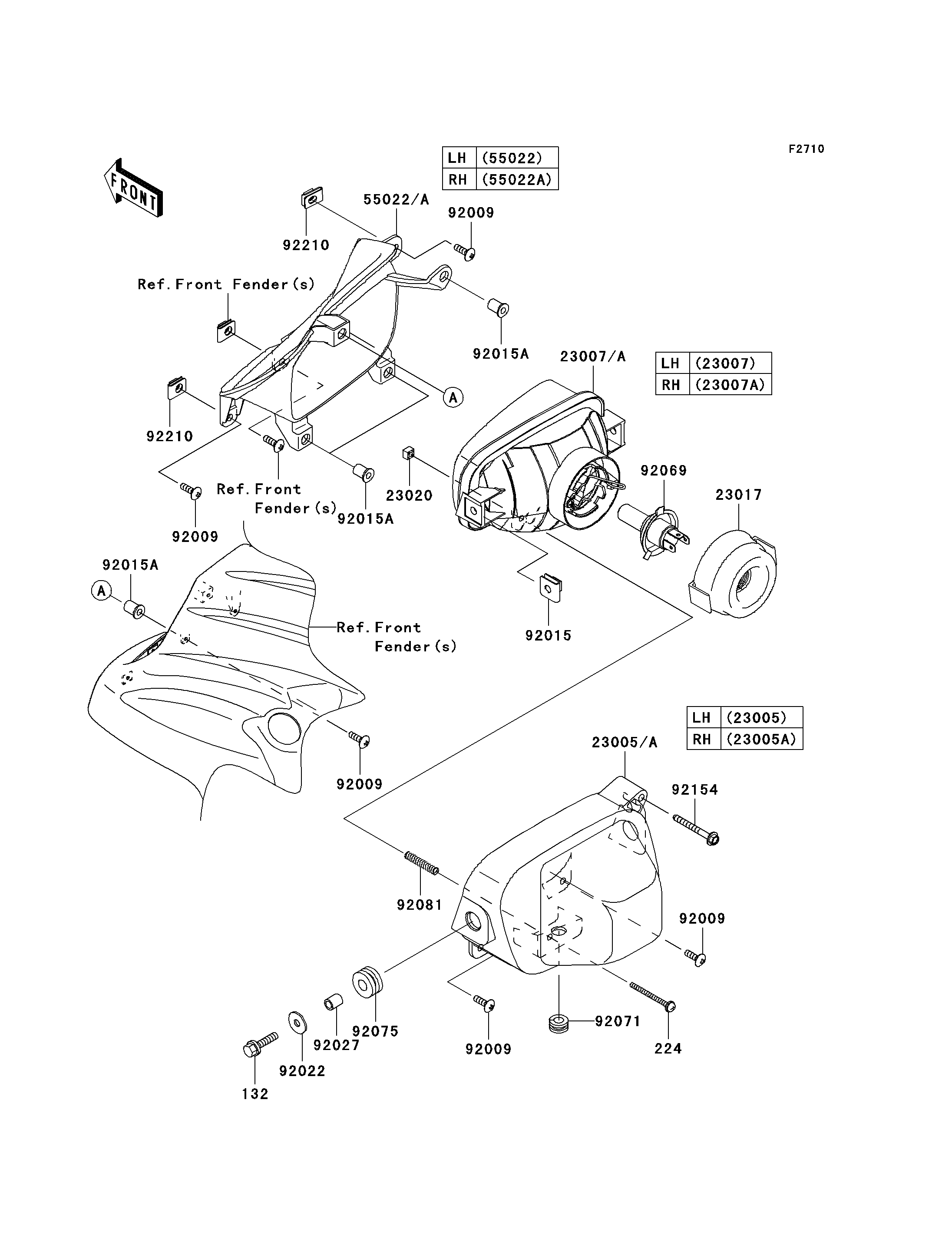

2009 Teryx® 750 FI 4x4 NRA Outdoors - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
132
224
23005
23005A
23007
23007A
23017
23020
55022
55022A
92009
92009
92009
92009
92009
92015
92015A
92015A
92015A
92022
92027
92069
92071
92075
92081
92154
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132BA0625 4
SCREW-PAN-WP-CROS,4X45 224 224AA0445 2
BODY-COMP-HEAD LAMP,LH 23005 23005-1180 1
BODY-COMP-HEAD LAMP,RH 23005A 23005-1181 1
LENS-COMP,HEAD LAMP,LH 23007 23007-0113 1
LENS-COMP,HEAD LAMP,RH 23007A 23007-0114 1
SOCKET,HEAD LAMP 23017 23017-0005 2
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
COVER-HEAD LAMP,LH 55022 55022-0035 1
COVER-HEAD LAMP,RH 55022A 55022-0036 1
SCREW,5X16,BLACK 92009 92009-1654 10
NUT,6MM 92015 92015-1094 4
NUT,WELL,5MM 92015A 92015-1757 8
WASHER,6.5X20X1.6 92022 92022-125 4
COLLAR,6.8X10X12 92027 92027-162 4
BULB,12V 35/35W 92069 92069-0026 2
GROMMET 92071 92071-1128 2
DAMPER 92075 92075-1690 4
SPRING,FOCUS ADJUST 92081 92081-1896 2
BOLT,FLANGED,5X45 92154 92154-0095 2
NUT,5MM 92210 92210-0499 4
