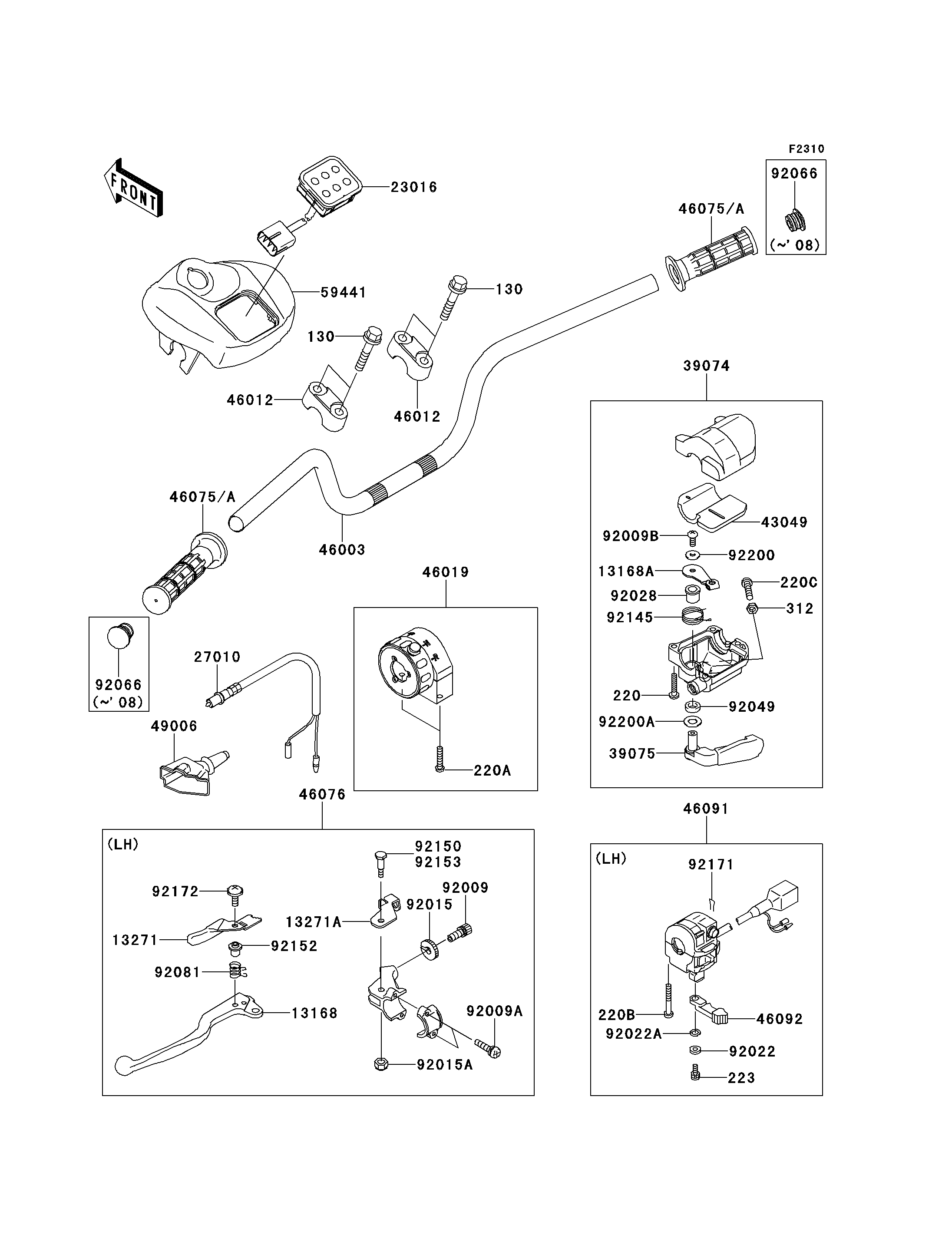

2008 KFX®700 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13168
13168
13168A
13168A
13271
13271
13271A
13271A
23016
23016
27010
27010
39074
39074
39075
39075
43049
43049
46003
46003
46012
46012
46012
46012
46019
46019
46075A
46075A
46075A
46075A
46076
46076
46091
46091
46092
46092
49006
49006
59441
59441
92009
92009
92009A
92009A
92009B
92009B
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92028
92028
92049
92049
92066
92066
92066
92066
92081
92081
92145
92145
92150
92150
92152
92152
92171
92171
92172
92172
92200
92200
92200A
92200A
130
130
130
130
220
220
220A
220A
220B
220B
220C
220C
223
223
312
312
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER,LH 13168 13168-0002 1
LEVER 13168A 13168-1715 1
PLATE,LEVER LOCK 13271 13271-0011 1
PLATE,LOCK 13271A 13271-1259 1
LAMP-ASSY 23016 23016-0002 1
SWITCH,BRAKE 27010 27010-1294 1
LEVER-ASSY-THROTTLE 39074 39074-0001 1
LEVER-THROTTLE 39075 39075-1062 1
PACKING 43049 43049-1088 1
HANDLE,G.GRAY 46003 46003-0001-HN 1
HOLDER-HANDLE 46012 46012-1168 2
GRIP-ASSY,SHIFT CONTROL 46019 46019-0006 1
GRIP 46075A 46075-1210 2
LEVER-ASSY-GRIP,LH 46076 46076-1258 1
HOUSING-ASSY-CONTROL,LH 46091 46091-1848 1
LEVER-GRIP,CHOKE 46092 46092-1217 1
BOOT 49006 49006-1261 1
COVER-HANDLE,BLACK 59441 59441-1173-6D 1
SCREW,CABLE ADJUST,8MM 92009 92009-1435 1
SCREW,6X20 92009A 92009-1841 2
SCREW 92009B 92009-1959 1
NUT,CABLE ADJUST LOCK,8MM 92015 92015-1596 1
NUT 92015A 92015-1829 1
WASHER,5MM 92022 92022-1837 1
WASHER,WAVE,5MM 92022A 92022-1838 1
BUSHING 92028 92028-1986 1
SEAL-OIL 92049 92049-1578 1
PLUG 92066 92066-1550 2
SPRING,LOCK RETURN 92081 92081-1358 1
SPRING 92145 92145-1392 1
BOLT 92150 92150-1420 1
COLLAR 92152 92152-1176 1
CLAMP,CLIP 92171 92171-1095 1
SCREW,5X20 92172 92172-0078 1
WASHER 92200 92200-1558 1
WASHER 92200A 92200-1559 1
BOLT-FLANGED,8X60 130 130CA0860 4
SCREW-PAN-CROSS,5X20 220 220AB0520 3
SCREW-PAN-CROSS,5X25 220A 220AB0525 2
SCREW-PAN-CROSS,5X35 220B 220AB0535 2
SCREW-PAN-CROSS,6X25 220C 220AB0625 1
SCREW-PAN-WS-CROS,5X12 223 223AB0512 1
NUT-HEX,6MM,BLACK 312 312AB0600 1
