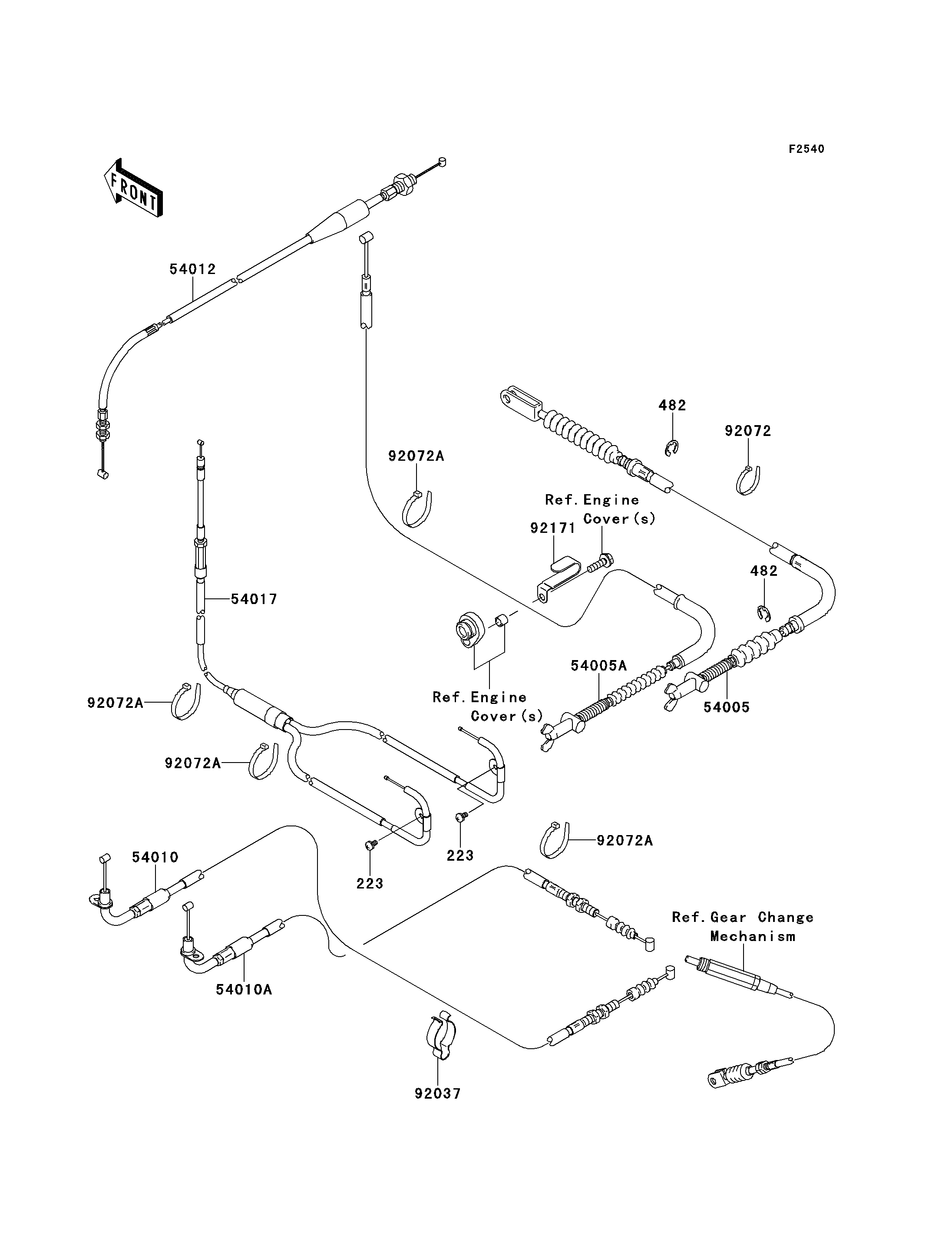

223
223
482
482
54005
54005A
54010
54010A
54012
54017
92037
92072
92072A
92072A
92072A
92072A
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WS-CROS,4X8 223 223AA0408 2
CIRCLIP-TYPE-E,8MM 482 482EA8000 2
CABLE-BRAKE,REAR 54005 54005-1217 1
CABLE-BRAKE,PARKING 54005A 54005-1218 1
CABLE,SHIFT,PULL 54010 54010-1130 1
CABLE,SHIFT,PUSH 54010A 54010-1131 1
CABLE-THROTTLE 54012 54012-0124 1
CABLE-STARTER 54017 54017-1226 1
CLAMP 92037 92037-093 1
BAND,L=123 92072 92072-030 1
BAND,L=188 92072A 92072-1239 4
CLAMP 92171 92171-1230 1
