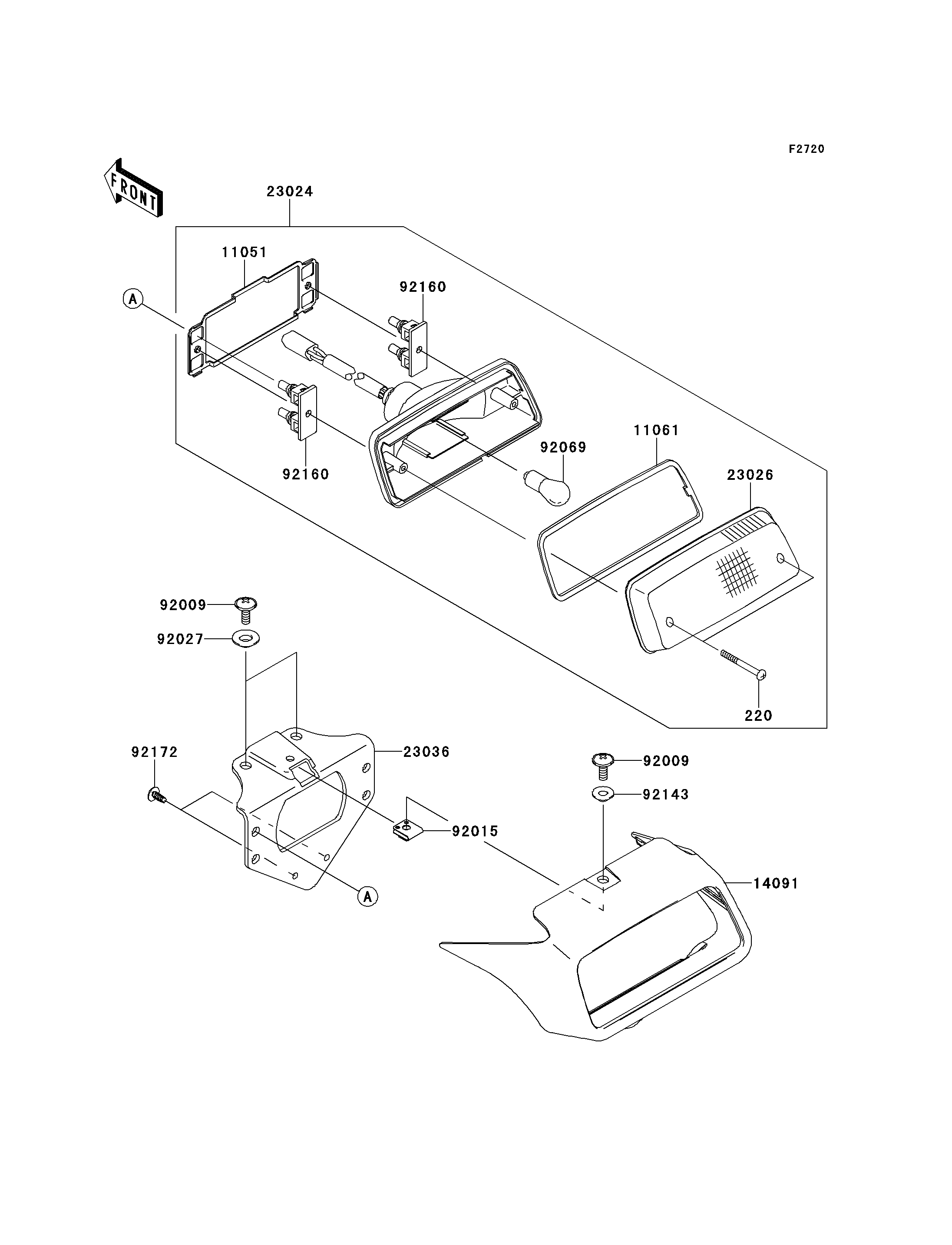

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROSS,4X40 220 220AA0440 2
BRACKET,TAIL LAMP 11051 11051-1870 1
GASKET,TAIL LAMP LENS 11061 11061-0055 1
COVER,TAIL LAMP,F.BLACK 14091 14091-0095-6Z 1
LAMP-ASSY-TAIL 23024 23024-1130 1
LENS,TAIL LAMP 23026 23026-1230 1
BRACKET-TAIL LAMP 23036 23036-0001 1
SCREW,6X16 92009 92009-1621 3
NUT,CLAMP,6MM 92015 92015-1678 1
COLLAR,L=4.7 92027 92027-1964 2
BULB,12V 21/5W 92069 92069-063 1
COLLAR 92143 92143-1087 1
DAMPER,TAIL LAMP 92160 92160-1053 2
SCREW,TAPPING,5X10 92172 92172-1061 2
