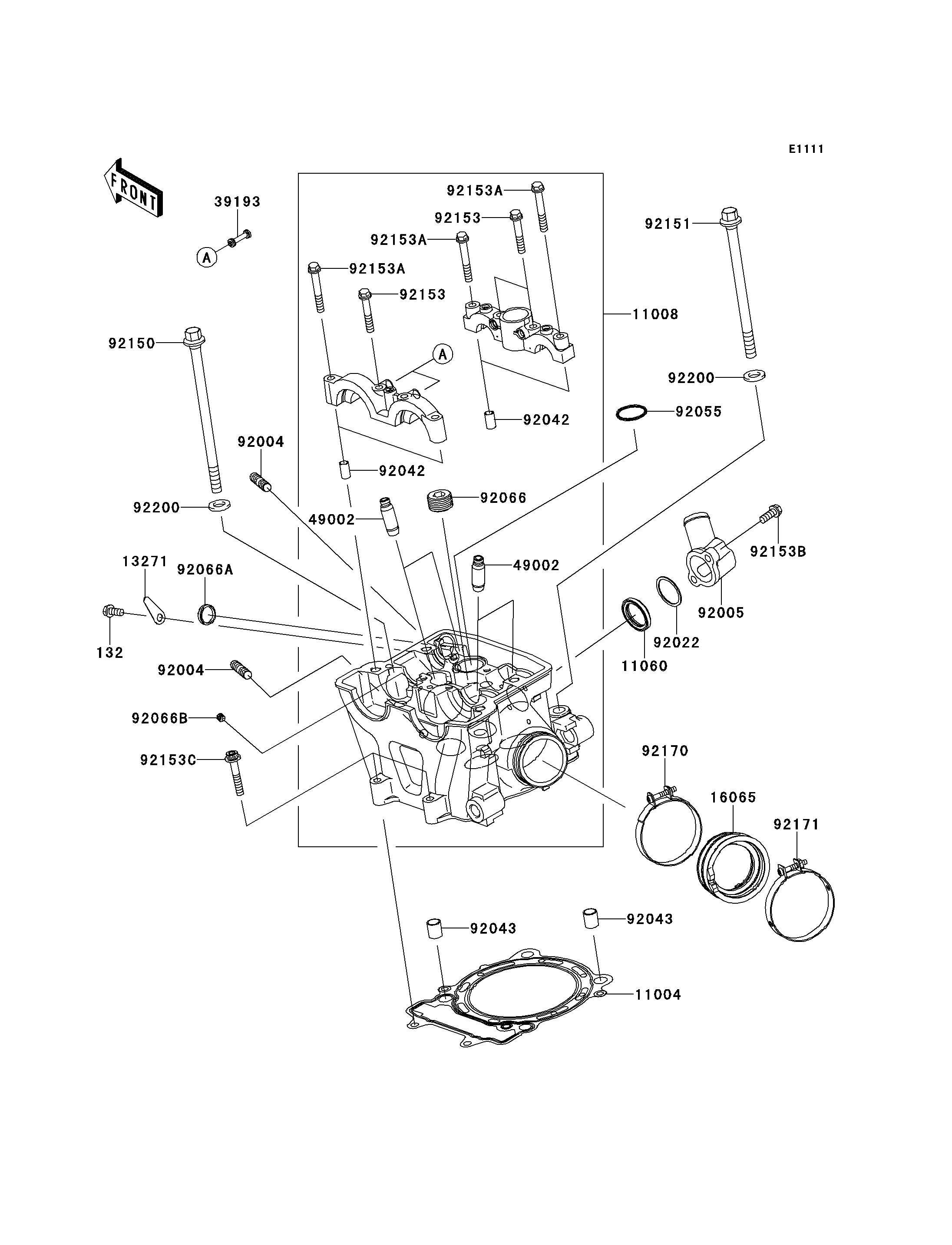

2008 KFX®450R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
132
11004
11008
11060
13271
16065
39193
49002
49002
92004
92004
92005
92022
92042
92042
92043
92043
92055
92066
92066A
92066B
92150
92151
92153
92153
92153A
92153A
92153A
92153B
92153C
92170
92171
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BB0612 1
GASKET-HEAD 11004 11004-0073 1
HEAD-COMP-CYLINDER 11008 11008-0143 1
GASKET,THERMOSTAT 11060 11060-1300 1
PLATE 13271 13271-0675 1
HOLDER-CARBURETOR 16065 16065-0031 1
PIPE-OIL 39193 39193-0027 2
GUIDE-VALVE 49002 49002-0007 AR
STUD,8X22 92004 92004-0025 2
FITTING 92005 92005-0018 1
WASHER,25.3X30X1 92022 92022-161 1
PIN,DOWEL,6.3X8X14 92042 92042-007 4
PIN,10.1X12X14 92043 92043-4009 2
RING-O,23.5X2.0 92055 92055-0046 1
PLUG,PT1/2X12.5 92066 92066-0002 1
PLUG,4X18 92066A 92066-0024 1
PLUG,6X6 92066B 92066-0068 1
BOLT,L=148 92150 92150-1934 2
BOLT,10X133 92151 92151-1516 2
BOLT,6X38 92153 92153-0338 4
BOLT,6X45 92153A 92153-0339 4
BOLT,6X16 92153B 92153-0695 2
BOLT,SOCKET,6X35 92153C 92153-0810 2
CLAMP 92170 92170-1448 1
CLAMP,62MM 92171 92171-0857 1
WASHER,10.5X19X2.3 92200 92200-0351 4
