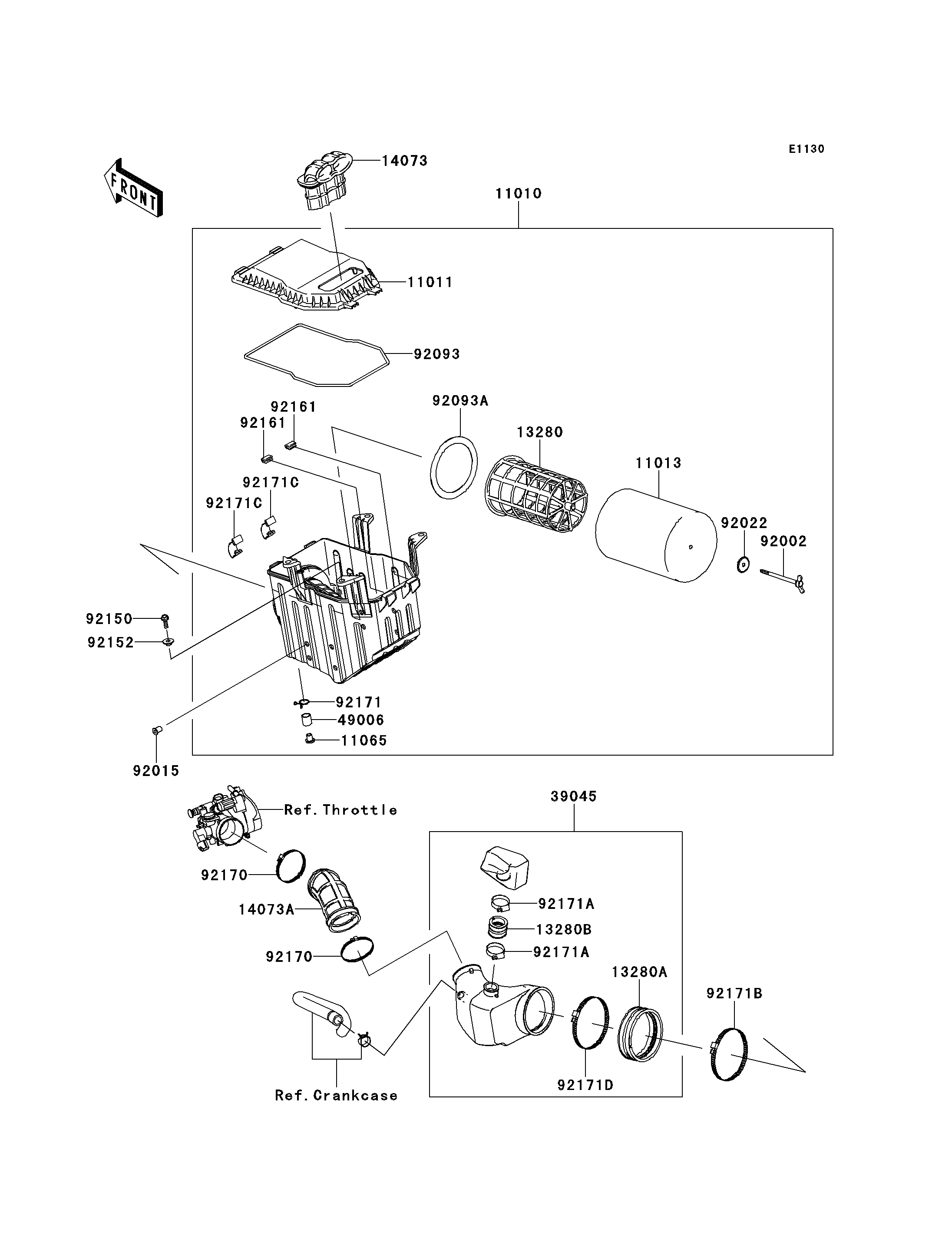

2008 KFX®450R - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11011
11013
11065
13280
13280A
13280B
14073
14073A
39045
49006
92002
92015
92022
92093
92093A
92150
92152
92161
92161
92170
92170
92171
92171A
92171A
92171B
92171C
92171C
92171D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0135 1
CASE-AIR FILTER,UPP 11011 11011-0075 1
ELEMENT-AIR FILTER 11013 11013-0017 1
CAP 11065 11065-0186 1
HOLDER,PLASTIC CAGE 13280 13280-0208 1
HOLDER,A/C-DUCT 13280A 13280-0230 1
HOLDER,RESONATOR TANK 13280B 13280-0231 1
DUCT,A/C,INLET 14073 14073-0115 1
DUCT,THROBO-A/C 14073A 14073-0154 1
DUCT-ASSY 39045 39045-0026 1
BOOT,DRAIN PIPE 49006 49006-0049 1
BOLT,6X100 92002 92002-2274 1
NUT,WELL,5MM 92015 92015-1757 8
WASHER 92022 92022-2220 1
SEAL 92093 92093-0104 1
SEAL 92093A 92093-0116 1
BOLT,6X20 92150 92150-1014 4
COLLAR 92152 92152-1255 4
DAMPER 92161 92161-0538 2
CLAMP 92170 92170-1764 2
CLAMP 92171 92171-0837 1
CLAMP,39MM 92171A 92171-0998 2
CLAMP 92171B 92171-1383 1
CLAMP,AIR FILTER CASE 92171C 92171-1426 2
CLAMP,99.5MM 92171D 92171-1596 1
