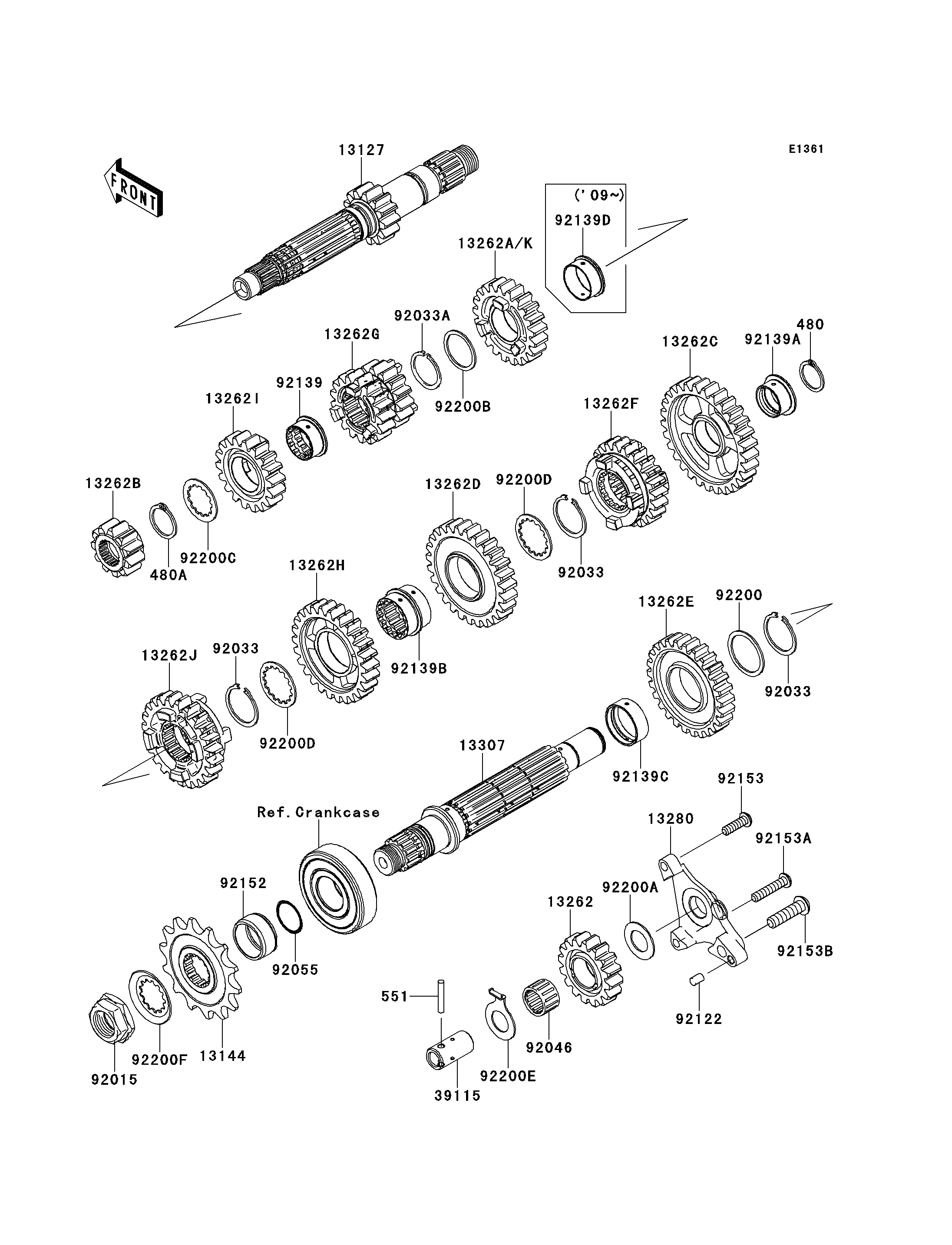

2008 KFX®450R - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13127
13127
13144
13144
13262
13262
13262A
13262A
13262B
13262B
13262C
13262C
13262D
13262D
13262E
13262E
13262F
13262F
13262G
13262G
13262H
13262H
13262I
13262I
13262J
13262J
13280
13280
13307
13307
39115
39115
92015
92015
92033
92033
92033
92033
92033
92033
92033A
92033A
92046
92046
92055
92055
92122
92122
92139
92139
92139A
92139A
92139B
92139B
92139C
92139C
92152
92152
92153
92153
92153A
92153A
92153B
92153B
92200
92200
92200A
92200A
92200B
92200B
92200C
92200C
92200D
92200D
92200D
92200D
92200E
92200E
92200F
92200F
480
480
480A
480A
551
551
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT 13127 13127-0039 1
SPROCKET-OUTPUT,14T 13144 13144-0042 1
GEAR-TRANSMISSION SPUR,16T 13262 13262-0352 1
GEAR,INPUT 5TH,21T 13262A 13262-0355 1
GEAR,INPUT REV,11T 13262B 13262-0356 1
GEAR,OUTPUT LOW,29T 13262C 13262-0357 1
GEAR,OUTPUT 2ND,27T 13262D 13262-0358 1
GEAR,OUTPUT REV,26T 13262E 13262-0362 1
GEAR,OUTPUT 5TH,22T 13262F 13262-0476 1
GEAR,INPUT 2ND&3RD,15T&17T 13262G 13262-0503 1
GEAR,OUTPUT 3RD,26T 13262H 13262-0504 1
GEAR,INPUT 4TH,18T 13262I 13262-0595 1
GEAR,OUTPUT 4TH,23T 13262J 13262-0596 1
HOLDER 13280 13280-0188 1
SHAFT-COMP-OUTPUT 13307 13307-0002 1
SHAFT-IDLER,REVERSE 39115 39115-0014 1
NUT,20MM 92015 92015-1963 1
RING-SNAP,25.9X30.6X1.2 92033 92033-1037 3
RING-SNAP,25MM 92033A 92033-1172 1
BEARING-NEEDLE,16X22X14 92046 92046-0023 1
RING-O,21X1.9 92055 92055-0128 1
ROLLER 92122 92122-1201 1
BUSHING,21.4X26X12.8 92139 92139-0152 1
BUSHING,20X24X12.75 92139A 92139-0153 1
BUSHING,25X31X22.7 92139B 92139-0154 1
BUSHING,28X31X11 92139C 92139-0155 1
COLLAR,25X30X14 92152 92152-0524 1
BOLT,TORX,6X20 92153 92153-1653 1
BOLT,TORX,6X30 92153A 92153-1654 1
BOLT,TORX,8X30 92153B 92153-1655 1
WASHER,28.1X34.0X1.2 92200 92200-0051 1
WASHER,16X28X1 92200A 92200-0302 1
WASHER,25.1X30X1.2 92200B 92200-0303 1
WASHER,21.4X32X1.2 92200C 92200-0304 1
WASHER,THRUST,28.3X34X1.2 92200D 92200-0305 2
WASHER,THRUST,16.1X28.0X1.0 92200E 92200-0413 1
WASHER 92200F 92200-1065 1
CIRCLIP-TYPE-C,20MM 480 480J2000 1
CIRCLIP-TYPE-C,22MM 480A 480J2200 1
PIN-DOWEL,4X25 551 551A0425 1
